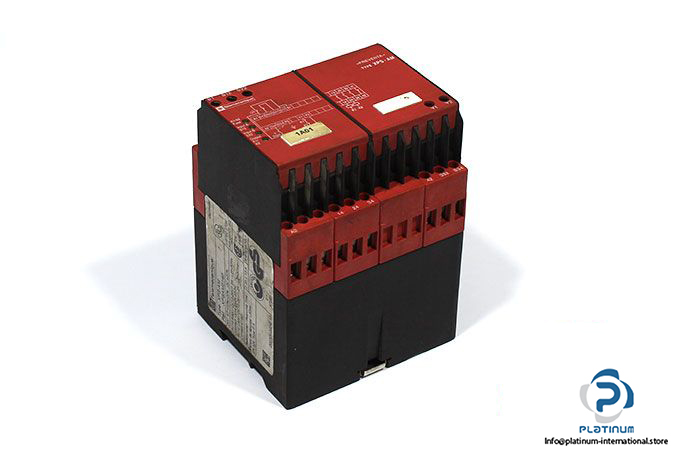

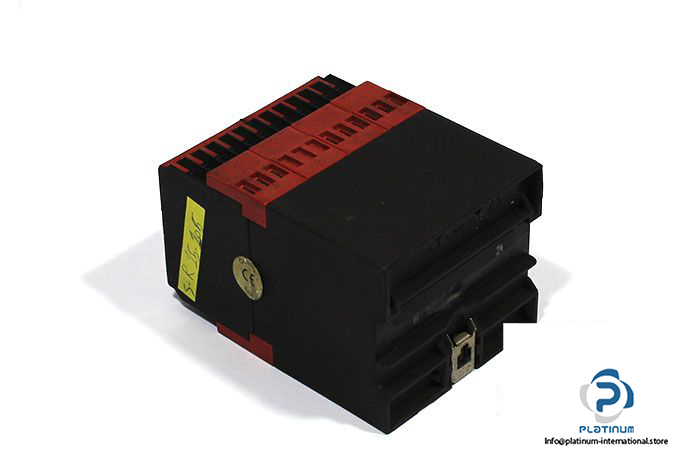

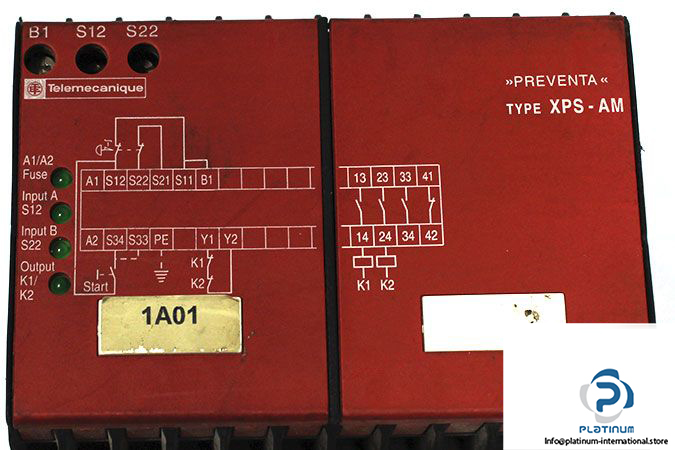

Telemecanique XPS-AM Safety Relay

Manufacturer: Telemecanique

Type: Isolated Switch Amplifier Relay

Model: XPS-AM

Part No: XPSAM3740

Application: for Emergency Stop, Limit Switch and Two-Hand Control Monitoring

Supply Voltage: 230 V AC

Frequency: 50/60 Hz

Power Consumption: < 6 VA

Module Fuse Protection: Internal, electronic

Output Contacts: 3 N/O, 1 N/C

Total Thermal Output Current: 15 A

Operating Temperature: -10 … +55 °C

Degree of Protection Terminals / Enclosure: IP20 /IP40

Dimensions: 90 x 120.8 x 78.3 mm

Weight: 0.50 kg
