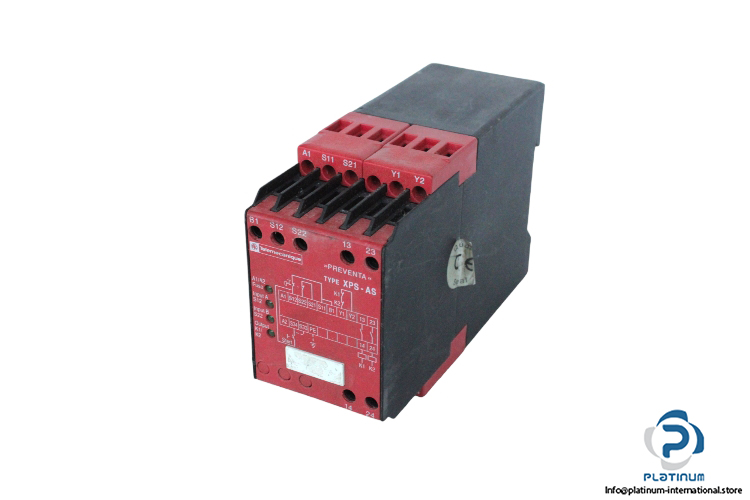

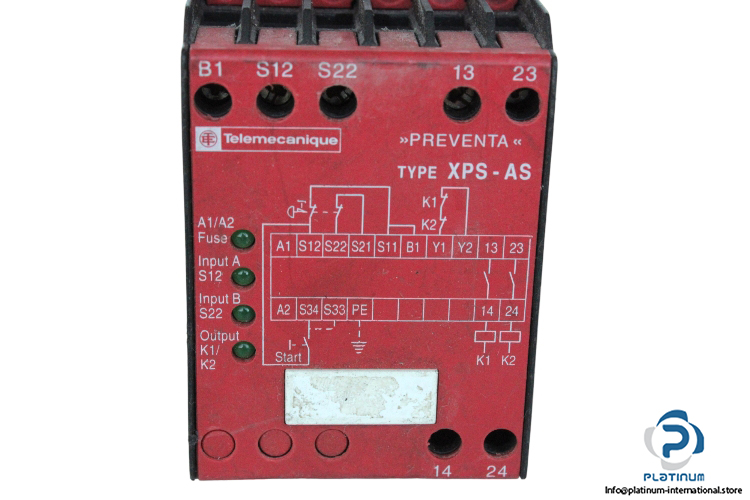

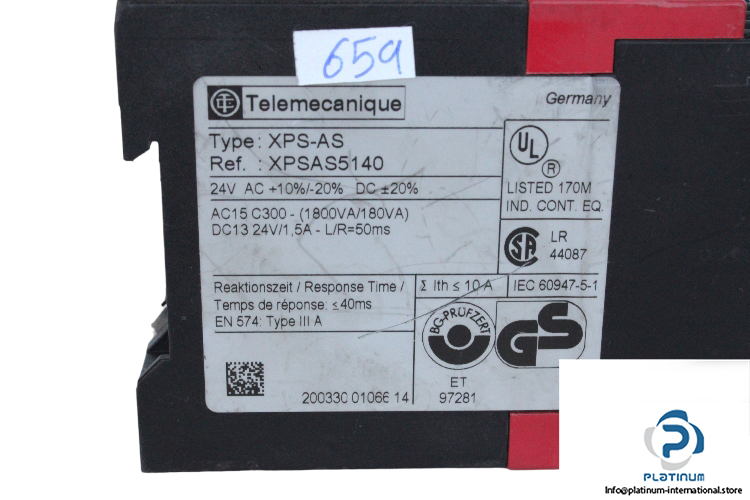

Telemecanique XPS-AS Emergency Stop

Manufacturer: Telemecanique

Type: Emergency Stop

Model: XPS-AS

Part No.: XPSAS5140



Supply voltage: 24 V AC (+10% / -20%), 24V DC (+20% / -20%)

Power consumption: ≤ 6 VA

Maximum switching capacity of outputs:

AC 15 – C300 (1800VA/180VA)

DC 13 24V/1,5A – L/R=50ms

Sum of simultaneous currents on all of the outputs is limited to ∑ Ith: ≤ 10 A

Response time: ≤ 40 ms

Rated insulation voltage: 300 V

Pollution degree: 2

Mounting: 35 mm DIN rail

Degree of protection: Terminals, IP20

Ambient operating temperature: -10 … +55 °C

Dimensions: 35 x 45 x 120 mm
