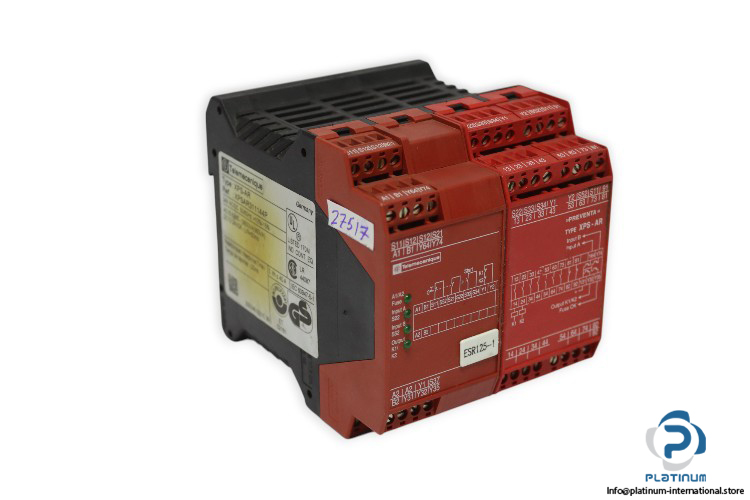

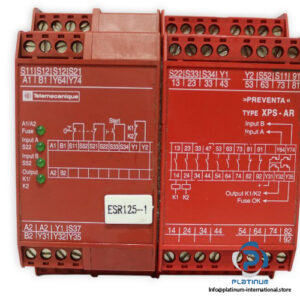

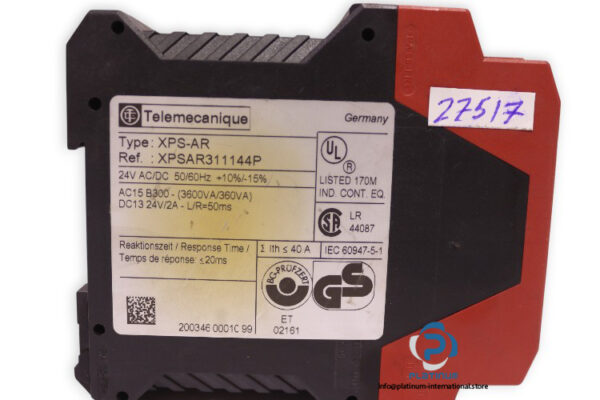

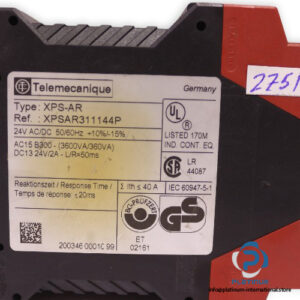

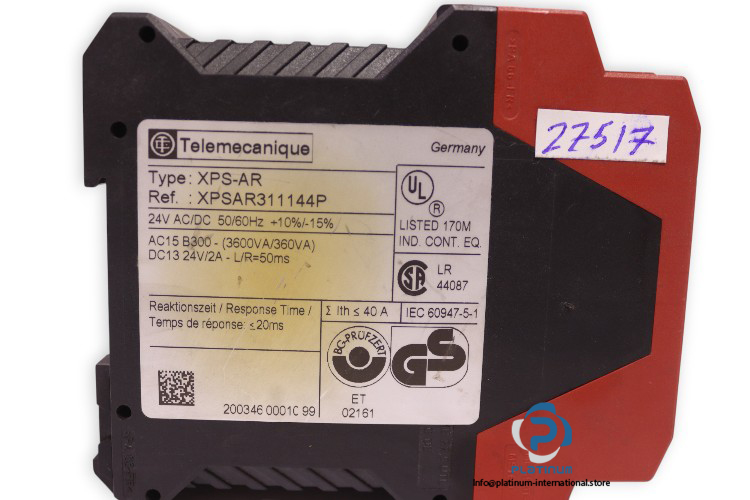

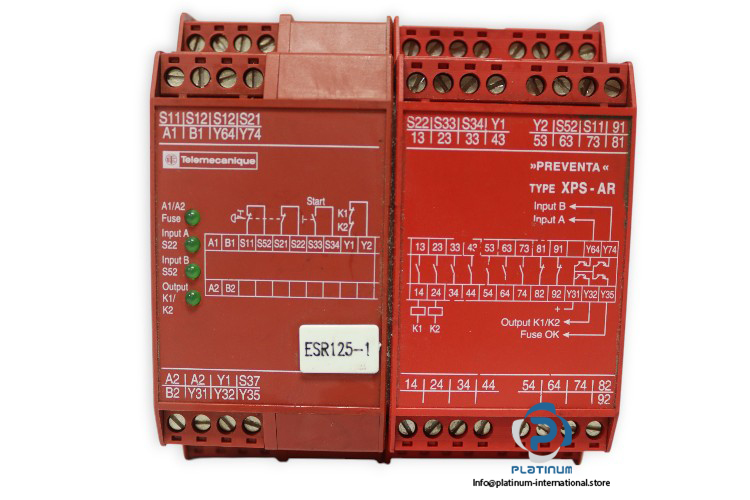

Telemecanique XPSAR311144P Emergency Stop
unit with 24 V DC control voltage, 10 A thermal current, and 4 W power usage. Compact, reliable, and DIN rail mountable.
Manufacturer: Telemecanique
Type: Emergency Stop
Model: XPSAR311144P
Part No.: XPS-AR
MNR: ESR125-1 / 200346 00010 99
Control Circuit Voltage: 24 V DC
Output Thermal Current: 10 A
Power Consumption: 4 W
Power Consumption In: 7 VA
Rated Insulation Voltage (Ui): 300 V
Rated Impulse Withstand Voltage (Uimp): 4 KV
Current Consumption: 30 mA at 24 V DC (on power supply)
Mounting Support: 35 mm symmetrical DIN rail
Ambient Temperature for Operation: -10…55 °C
Dimensions: 114 x 90 x 99 mm
The Telemecanique emergency stop XPSAR311144P is designed to provide dependable and quick shutdown of industrial systems during hazardous events. This safety relay ensures optimal system protection with a robust control circuit operating at 24 V DC, and offers efficient response with a low power consumption profile. Its DIN rail mountable design, wide operating temperature range, and high thermal current rating make it suitable for use in demanding industrial environments.
