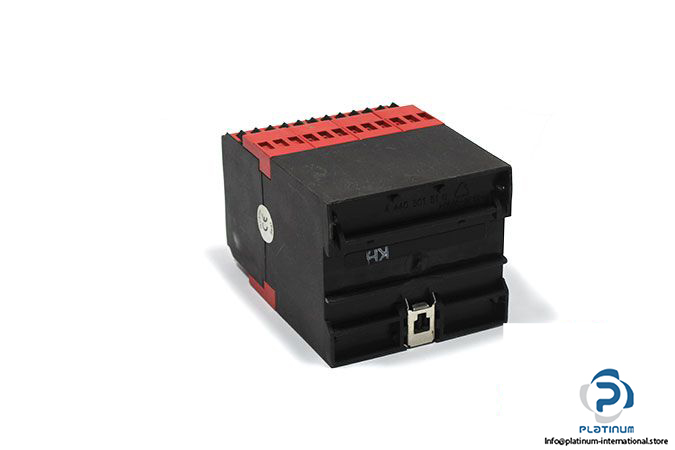

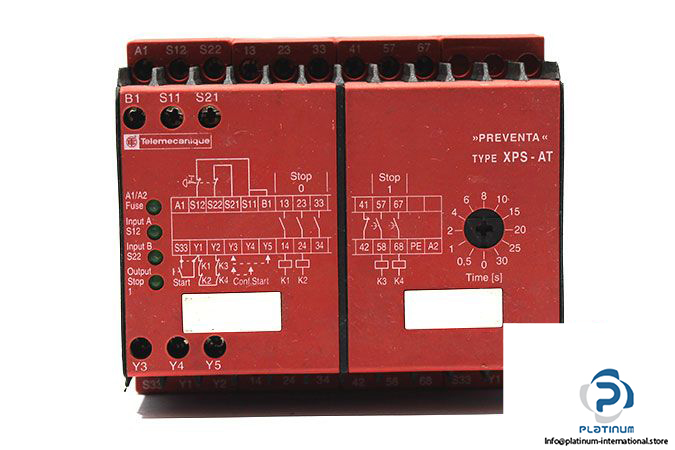

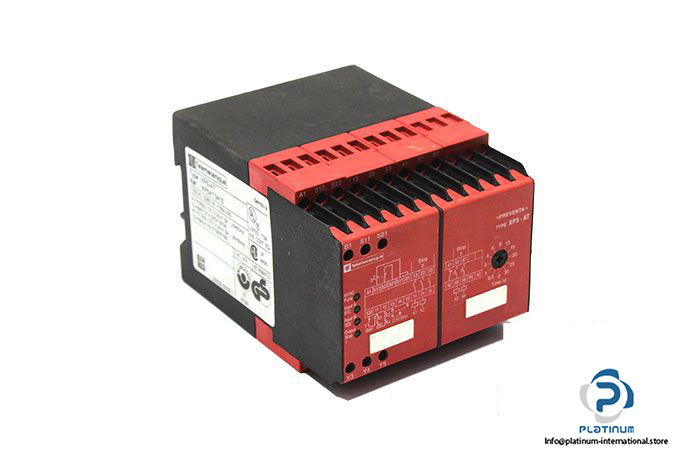

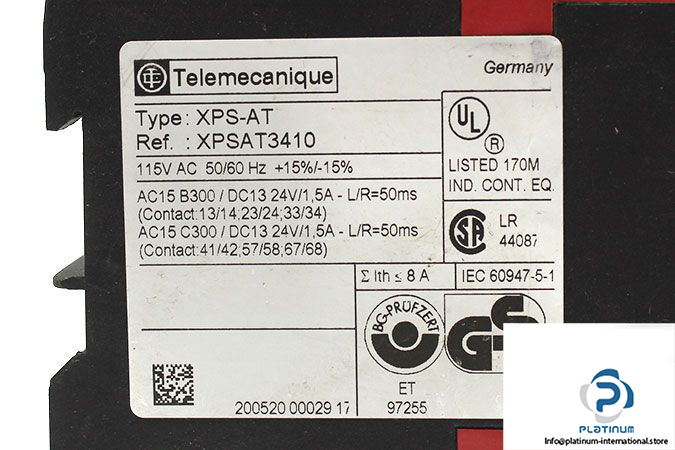

Telemecanique XPSAT3410 Safety Relay

Manufacturer: TELEMECANIQUE

Type: Safety Relay

Model: XPS-AT

Part No: XPSAT3410

Application: for Emergency Stop, Limit Switch Monitoring

Range of Product: PREVENTA

Supply Voltage: 115 V AC

Frequency: 50 … 60 Hz

Adjustable Delay Time: 0 … 30 s

Contacts Type: Normally Closed (NC)

Number of Safety Circuits for Instantaneous: 3 Normally Open (3NO)

Number of Safety Circuits for Time Delayed: 2 Normally Open (2NO)

Electrical Connection: Screw Clamp Terminal

Pilot Light: 4 LED

Ambient Operating Temperature: -26 … 54 °C

Dimensions: 90 x 120.8 x 78.3 mm
