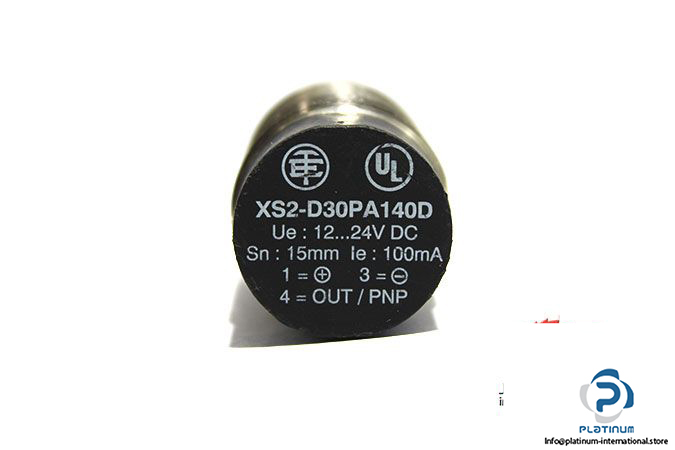

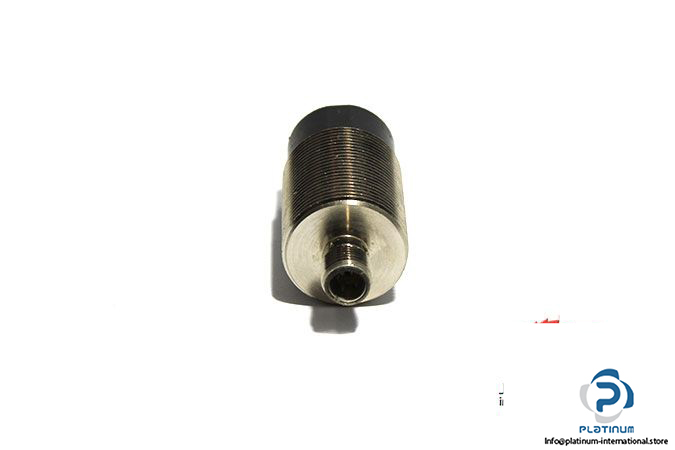

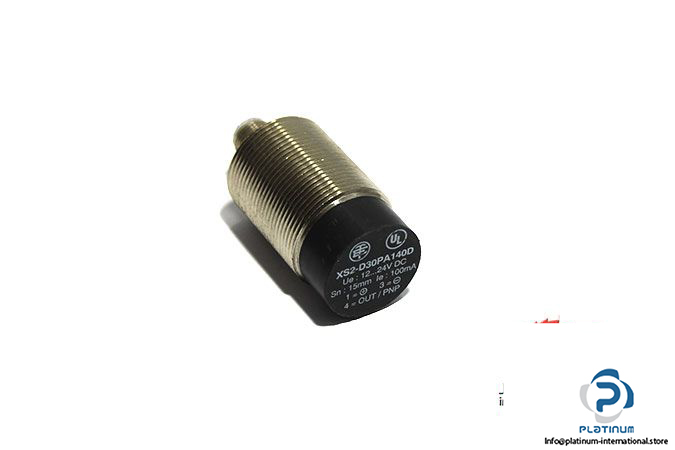

Telemecanique XS2D30PA140D Inductive Sensor

Manufacturer:  TELEMECANIQUE SCHNEIDER

Type:  INDUCTIVE SENSOR

Model: XS2-D30PA140D

Sensing Range: 15 mm

Operating Voltage: 12 … 24 V DC

Switching Capacity: ≤ 100 mA

No-Load Supply Current: ≤ 10 mA

Maximum Voltage Drop: ≤ 3 V

Switching Frequency: 200 Hz

Signal Output: PNP

Switching Output: Normally Open

Sensor Design: Cylindrical M30

Electrical Connection: Male Connector M12, 4-Pins

Degree of Protection: IP66

Diameter, Length: 30, 64 mm

Ambient Operating Temperature: -25 … 70 °C

Housing Material: Metal (Nickel Plated Brass)

Mounting: Non Flush-Mountable

Weight: 0.1 kg
