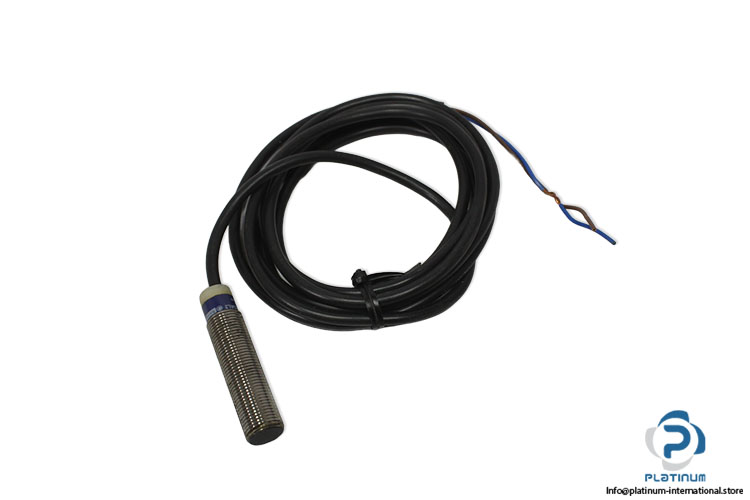

Telemecanique XS512B1DAL2 Inductive Proximity Sensor
New
In stock8 unitsReady to ship
Inductive Proximity Sensor Telemecanique XS512B1DAL2 cylindrical M12 inductive proximity sensor with a 2 mm sensing distance, 12–48 V DC supply, 2-wire output, IP68/IP69K protection, and rugged metal housing for industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 014417 |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose Sensor |
| Sensor name | XS5 |
| Sensor design | Cylindrical M12 |
| Size | 54 mm |
| Body type | Fixed |
| Detector flush mounting acceptance | Flush mountable |
| Material | Metal |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| [Sn] nominal sensing distance | 2 mm |
| Discrete output function | 1 NO |
| Output circuit type | DC |
| Electrical connection | Cable |
| Cable length | 2 m |
| [Us] rated supply voltage | 12...48 V DC |
| Switching capacity in mA | 1.5...100 mA DC with overload and short-circuit protection |
| IP degree of protection | IP68 double insulation conforming to IEC 60529 IP69K conforming to DIN 40050 |
| Thread type | M12 x 1 |
| Detection face | Frontal |
| Front material | PPS |
| Enclosure material | Nickel plated brass |
| Operating zone | 0…1.6 mm |
| Differential travel | 1...15% of Sr |
| Cable composition | 2 x 0.34 mm² |
| Wire insulation material | PVC |
| Status LED | Output state: 1 LED (yellow) |
| Supply voltage limits | 10…58 V DC |
| Maximum residual current | 0.5 mA |
| open state Switching frequency | 4000 Hz |
| Maximum voltage drop | 4 V (closed) |
| Maximum delay first up | 10 ms |
| Maximum delay response | 0.2 ms |
| Maximum delay recovery | 0.2 ms |
| Marking | CE |
| Threaded length | 42 mm |
| Length | 53 mm |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1099339 |
| Weight | 0,07 |
