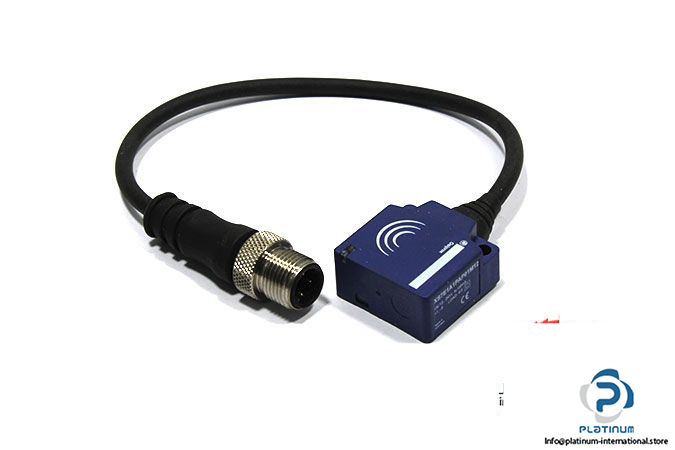

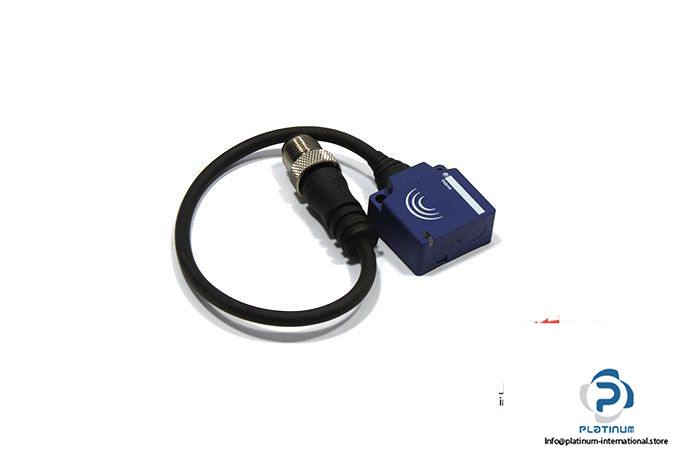

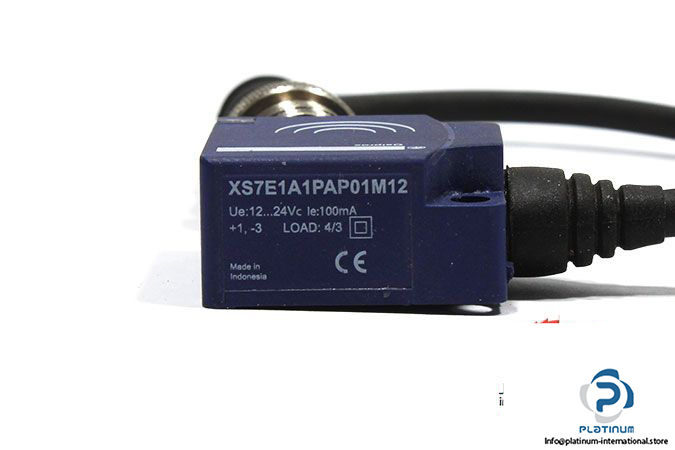

Telemecanique XS7E1A1PAP01M12 Inductive Sensor

Manufacturer: TELEMECANIQUE SCHNEIDER

Type: INDUCTIVE SENSOR

Series Name: General Purpose

Model: XS7-E1A1PAP01M12

Sensing Range: 10 mm

Operating Voltage: 12 … 24 V DC

Operating Current: <= 100 mA
Current Consumption, No Load: <= 10 mA
Maximum Voltage Drop: < 2 V
Switching Frequency: 1000 Hz

Discrete Output Type: PNP

Switching Output: Normally Open

Connection: Remote Male Connector M12, 4-Pin

Cable Length: 0.15 m

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 70 °C

Dimensions: 26 x 26 x 13 mm

Material: Plastic

Enclosure Material: PBT

Body Type: Fixed

Mounting: Flush-Mountable

Weight: 0.04 kg
