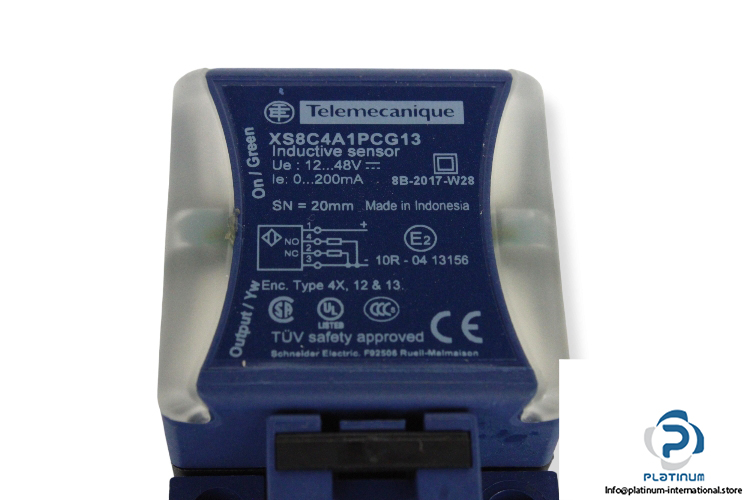

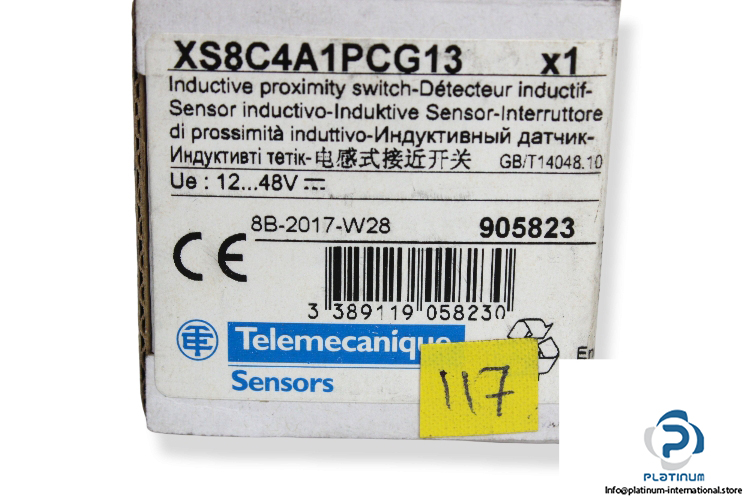

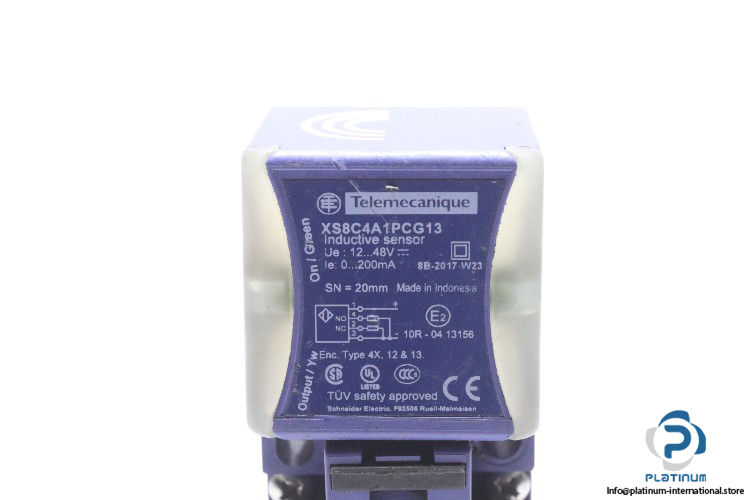

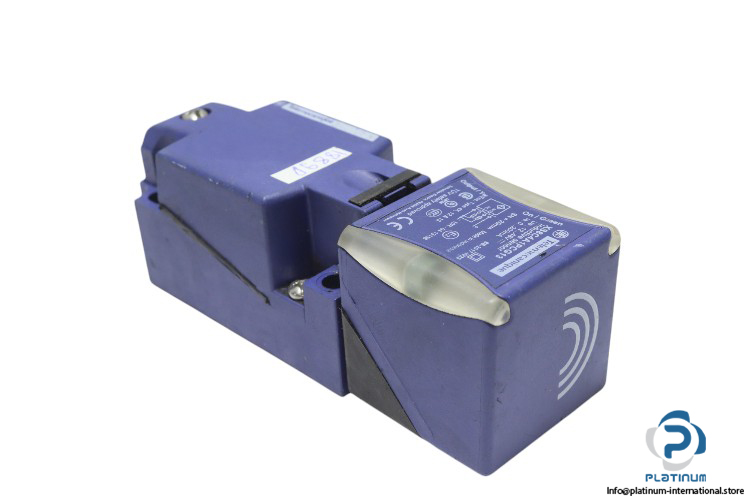

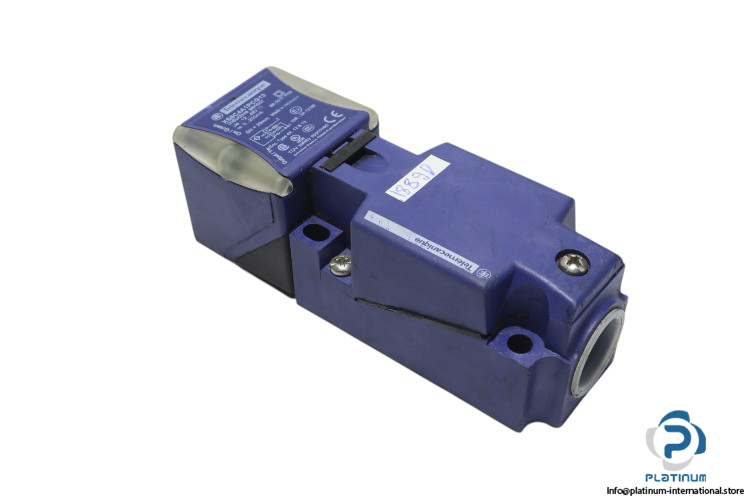

Telemecanique XS8C4A1PCG13 Inductive Proximity Sensor
Inductive Proximity Sensor
The Telemecanique XS8C4A1PCG13 Inductive Proximity Sensor offers 12 to 48 V DC supply voltage, 200 mA switching capacity, 20 mm nominal sensing distance, and IP67/IP69K protection, ideal for industrial automation.Telemecanique XS8C4A1PCG13 Inductive Proximity Sensor
The **Telemecanique XS8C4A1PCG13 Inductive Proximity Sensor** offers reliable performance with a **12 to 48 V DC rated supply voltage** and **max. 200 mA switching capacity**. Designed for **flush mounting**, it features a **nominal sensing distance (Sn)** of **20 mm**, with **1 NO and 1 NC discrete output function**. With an **IP67, IP65, and IP69K** degree of protection, this sensor is ideal for use in harsh industrial environments. The **PBT enclosure material** ensures durability, while the sensor operates within an **ambient temperature range** of **-25 to 70 °C**.
Manufacturer: Telemecanique
Type: Inductive Proximity Sensor
Model: XS8C4A1PCG13
The **Telemecanique XS8C4A1PCG13 Inductive Proximity Sensor** ensures reliable detection and protection in industrial automation, offering durability and high protection ratings for demanding environments.
| Rated Supply Voltage | 12 to 48 V DC |
| Switching Capacity | Max. 200 mA |
| Electrical Connection | Screw-clamp terminals |
| Body Type | Fixed |
| Mountable | Flush |
| Material | Plastic |
| Enclosure Material | PBT |
| Type of Output Signal | Discrete |
| Wiring Technique | 4-wire |
| Nominal Sensing Distance (Sn) | 20 mm |
| Discrete Output Function | 1 NO, 1 NC |
| Output Circuit Type | DC |
| Discrete Output Type | PNP |
| Front Material | PBT |
| Degree of Protection | IP67, IP65, IP69K |
| Ambient Air Temperature for Operation | -25 to 70 °C |
| Dimensions | 40 x 40 x 117 mm |
