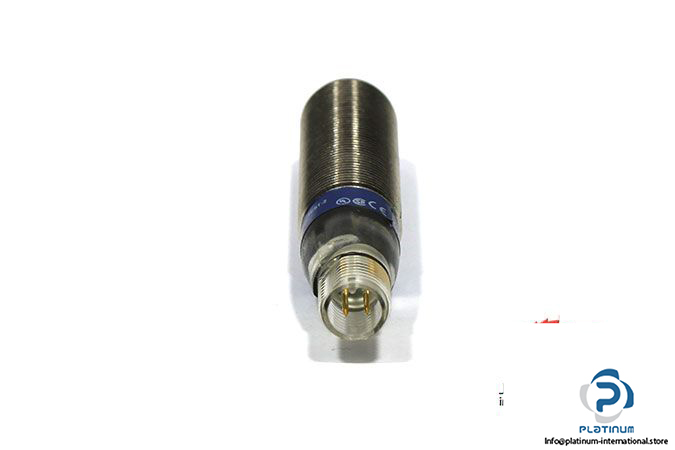

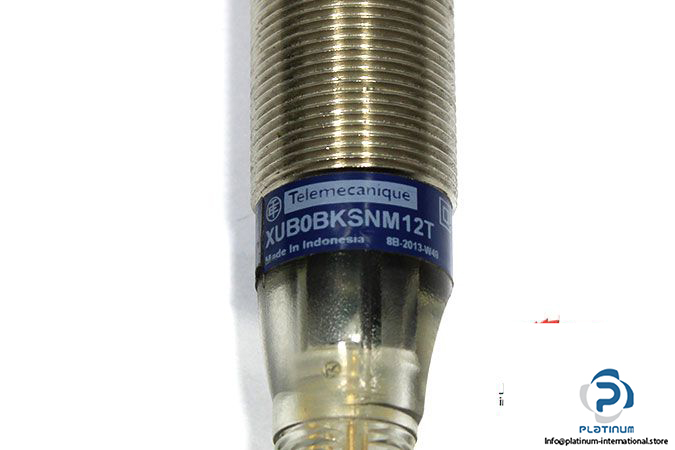

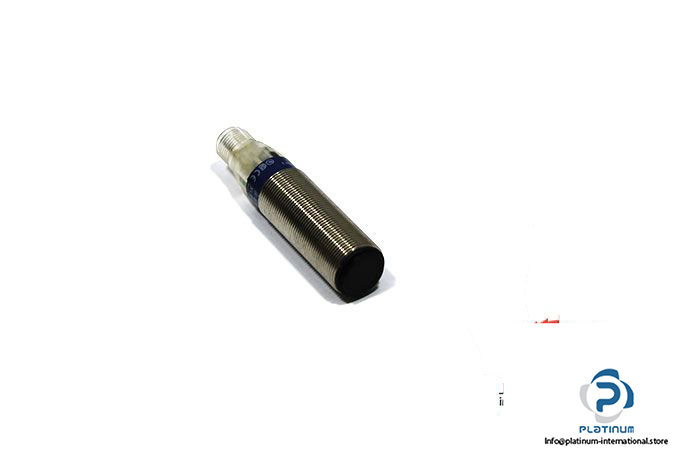

Telemecanique XUB0BKSNM12T Photoelectric Sensor

Manufacturer:  TELEMECANIQUE SCHNEIDER

Type:  Photoelectric Sensor

Series Name: General PURPOSE Multimode

Model: XUB0BKSNM12T

Emission: Infrared Thru Beam Sensor Emitter

Nominal Sensing Distance: 20 m

Operating Voltage: 12 … 24 V DC

Switching Capacity: <= 100 mA
No-Load Supply Current: 20 mA

Maximum Voltage Drop: < 1.5 V
Switching Frequency: <= 250 Hz
Sensor Design: Cylindrical M18

Electrical Connection: Male Connector M12, 4-Pin

Diameter, Length: 18, 76 mm

Degree of Protection: IP65

Ambient Operating Temperature: -25 … 55 °C

Housing Material: Metal

Enclosure Material: Nickel Plated Brass

Mounting: Flush-Mountable

Weight: 0.03 kg
