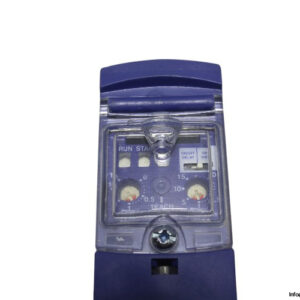

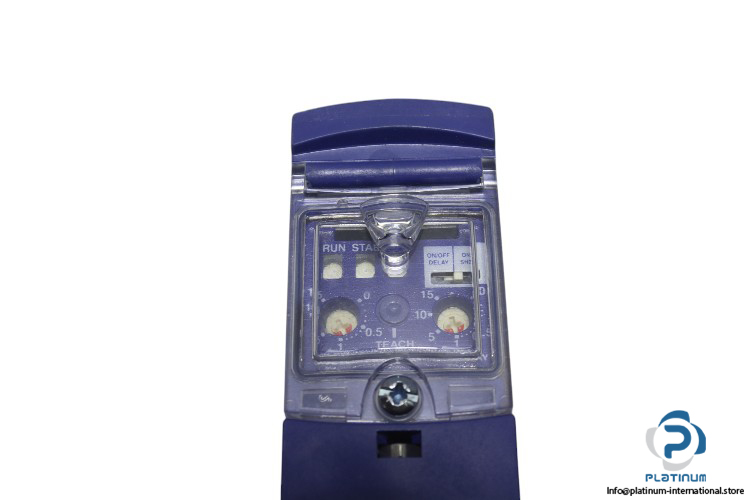

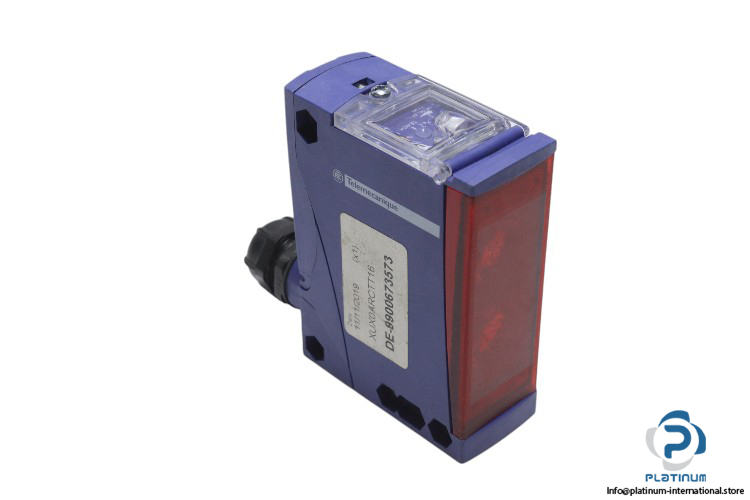

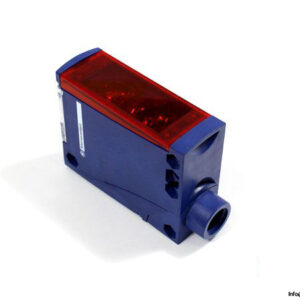

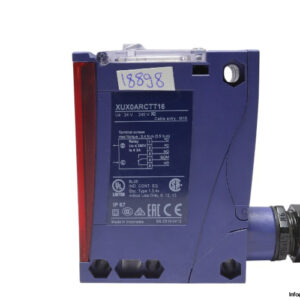

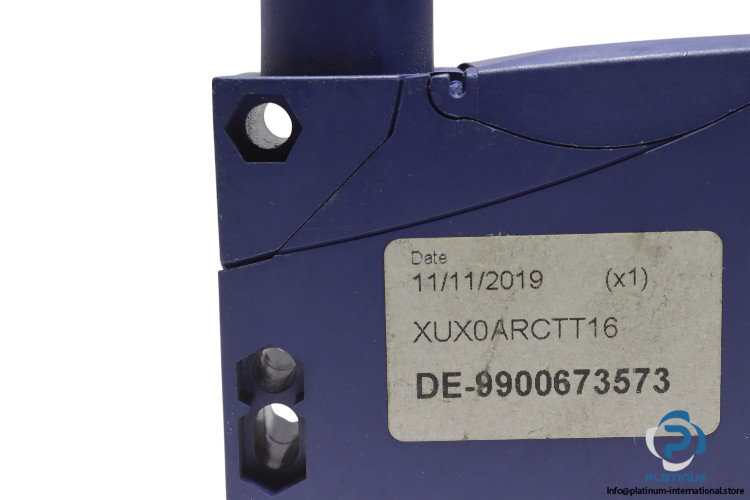

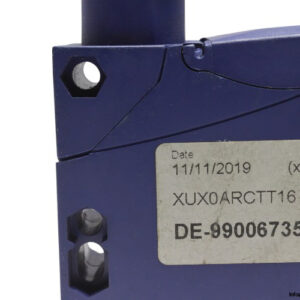

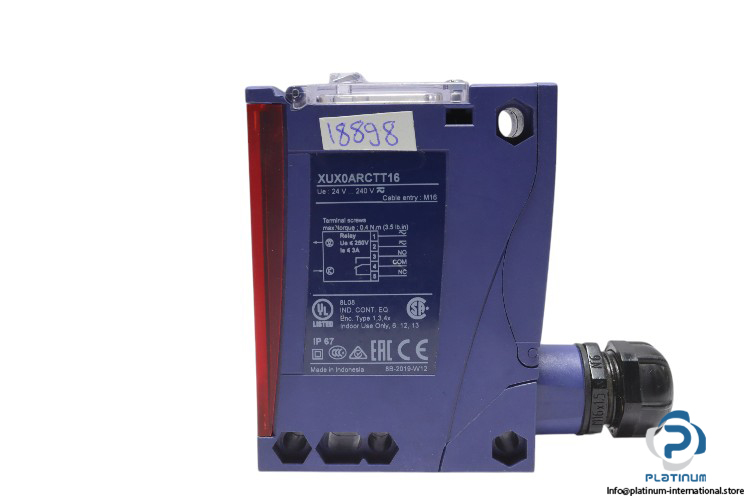

Telemecanique XUX0ARCTT16 Through Beam Photoelectric Sensor
Through Beam Photoelectric Sensor
The **Telemecanique XUX0ARCTT16 Through Beam Photoelectric Sensor** offers **40 m sensing distance**, **3 A switching capacity**, and **multimode detection**, ideal for industrial long-range detection.Telemecanique XUX0ARCTT16 Through Beam Photoelectric Sensor
The **Telemecanique XUX0ARCTT16 Through Beam Photoelectric Sensor** offers a **nominal sensing distance of 40 m**, making it ideal for long-range detection in industrial applications. This compact sensor, with a **92 x 71 mm design**, supports a wide supply voltage range of **24 to 240 V AC/DC**. It features a **switching capacity of 3 A** and operates at a **switching frequency** of up to **20 Hz**. The sensor uses a **multimode detection system**, providing versatile sensing capabilities, including **infrared diffuse**, **infrared diffuse with background suppression**, **infrared thru beam**, and **red polarized reflex**. It provides **discrete output** (1 C/O), making it suitable for industrial control systems. The sensor is housed in **PBT material** with a **PMMA lens**, ensuring durability and longevity in tough environments. With an **IP67 protection degree**, it operates in temperatures from **-25 to 55 °C**. It comes with **5-wire wiring technique** and is equipped with **screw-clamp terminals** for easy installation. The sensor has **M16 x 1.5 cable entry** for a **cable outer diameter of 7 to 10 mm**.
Manufacturer: Telemecanique
Type: Through Beam Photoelectric Sensor
Model: XUX0ARCTT16
The **Telemecanique XUX0ARCTT16 Through Beam Photoelectric Sensor** is a robust and versatile sensor designed to provide high-accuracy detection over long distances in industrial applications.
| Sensor Design | Compact 92 x 71 mm |
| Rated Supply Voltage | 24 to 240 V AC/DC |
| Nominal Sensing Distance (Sn) | 40 m |
| Switching Capacity | 3 A |
| Switching Frequency | 20 Hz |
| Detection System | Multimode |
| Material | Plastic |
| Type of Output Signal | Discrete |
| Supply Circuit Type | AC/DC |
| Wiring Technique | 5-wire |
| Discrete Output Function | 1 C/O |
| Electrical Connection | Screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor |
| Emission | Infrared diffuse, Infrared diffuse with background suppression, Infrared thru beam, Red polarized reflex |
| Enclosure Material | PBT |
| Lens Material | PMMA |
| Output Type | Relay |
| Cable Entry | 1 entry for M16 x 1.5 cable gland, cable outer diameter: 7 to 10 mm |
| Degree of Protection | IP67 |
| Ambient Air Temperature for Operation | -25 to 55 °C |
| Dimensions | 92 x 77 x 31 mm |
