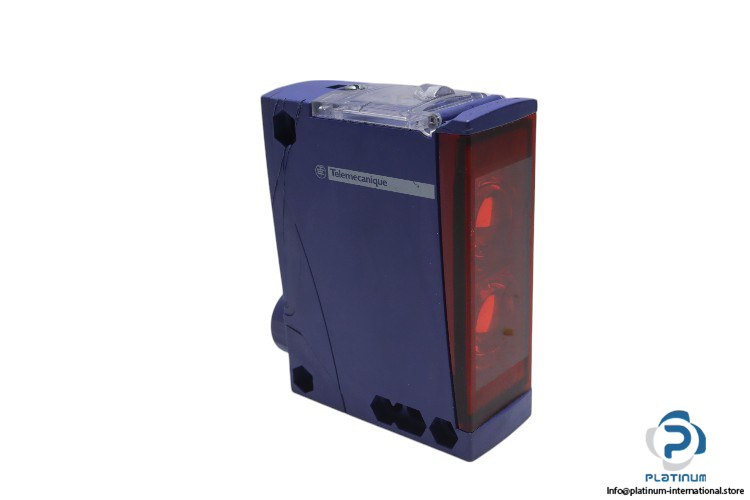

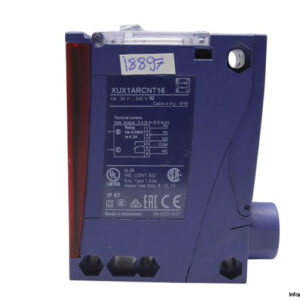

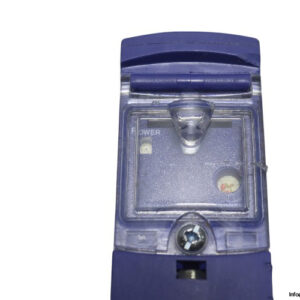

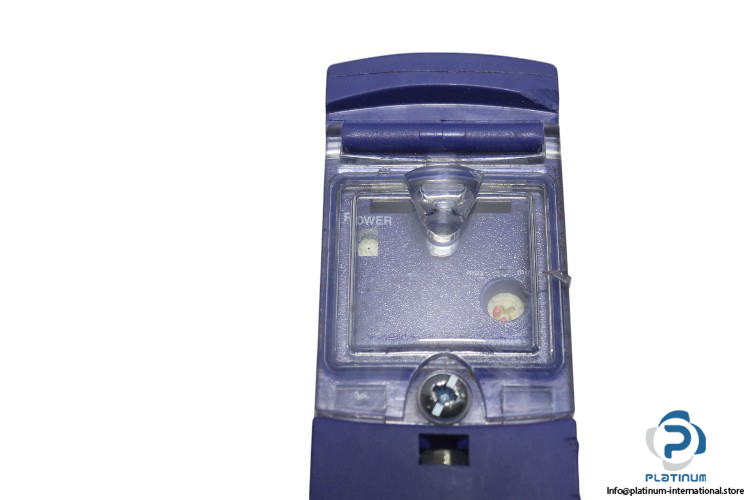

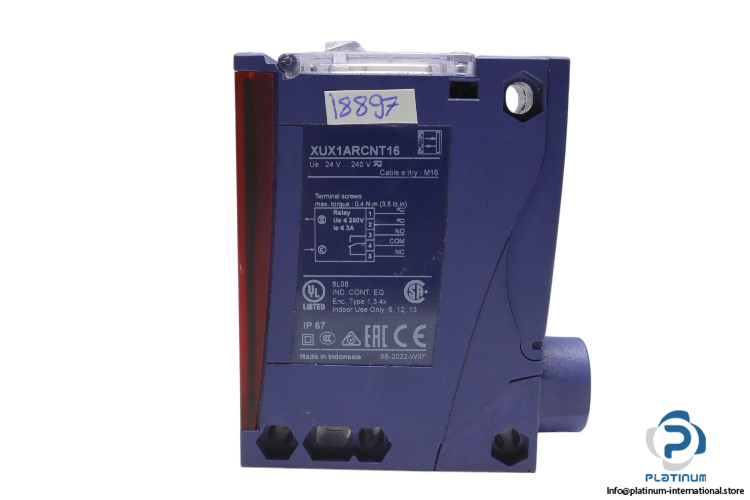

Telemecanique XUX1ARCNT16 Reflex Photoelectric Sensor
Reflex Photoelectric Sensor
The **Telemecanique XUX1ARCNT16 Reflex Photoelectric Sensor** offers **14 m sensing distance**, **3 A switching capacity**, **infrared reflex emission**, and **IP67/IP65 protection**, perfect for industrial sensing applications.Telemecanique XUX1ARCNT16 Reflex Photoelectric Sensor
The **Telemecanique XUX1ARCNT16 Reflex Photoelectric Sensor** offers a **nominal sensing distance of 14 m**, making it ideal for a wide range of industrial applications. With a compact design of **92 x 71 mm**, this sensor supports **24 to 240 V AC/DC supply voltage** with a wide voltage range from **20 to 264 V AC**. It features a **switching capacity of 3 A** and a **switching frequency of 20 Hz**. The **reflex detection system** ensures high reliability, and the sensor is equipped with **discrete output** (1 C/O) for seamless integration. The **infrared reflex emission** provides reliable operation in various environments, while the **PBT enclosure** and **PMMA lens** offer durability and protection. Designed for use in harsh environments, it offers an **IP67 and IP65 protection degree** and operates within a temperature range of **-25 to 55 °C**. The sensor is powered through **screw-clamp terminals**, supporting a **5-wire wiring technique** and accommodating **cable diameters** of **7 to 10 mm** with an **M16 x 1.5 cable gland**. Its compact size and robust features make it an excellent choice for industrial sensing applications.
Manufacturer: Telemecanique
Type: Reflex Photoelectric Sensor
Model: XUX1ARCNT16
The **Telemecanique XUX1ARCNT16 Reflex Photoelectric Sensor** is a high-performance, reliable sensor that provides exceptional detection capabilities for various industrial environments and applications.
| Sensor Design | Compact 92 x 71 mm |
| Rated Supply Voltage | 24 to 240 V AC/DC |
| Supply Voltage Limits | 20 to 264 V AC |
| Nominal Sensing Distance (Sn) | 14 m |
| Switching Capacity | 3 A |
| Switching Frequency | 20 Hz |
| Current Consumption | 35 mA |
| Detection System | Reflex |
| Material | Plastic |
| Type of Output Signal | Discrete |
| Supply Circuit Type | AC/DC |
| Wiring Technique | 5-wire |
| Discrete Output Function | 1 C/O |
| Electrical Connection | Screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm square with adaptor |
| Emission | Infrared reflex |
| Enclosure Material | PBT |
| Lens Material | PMMA |
| Output Type | Relay |
| Cable Entry | 1 entry for M16 x 1.5 cable gland, cable outer diameter: 7 to 10 mm |
| Degree of Protection | IP67, IP65 |
| Ambient Air Temperature for Operation | -25 to 55 °C |
| Dimensions | 92 x 77 x 31 mm |
