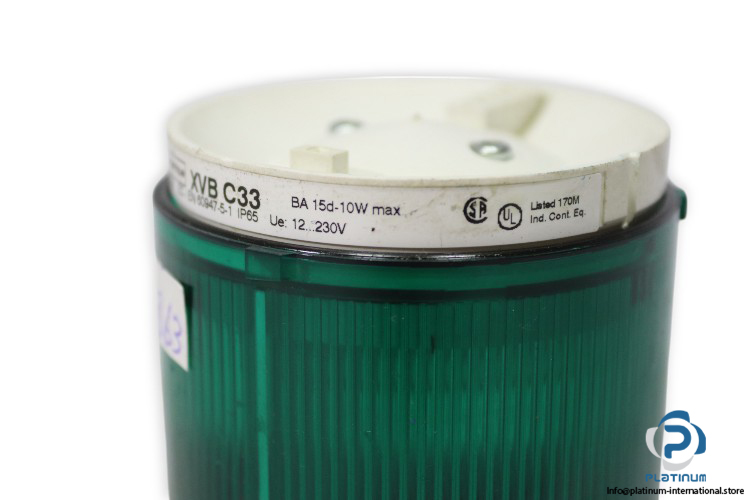

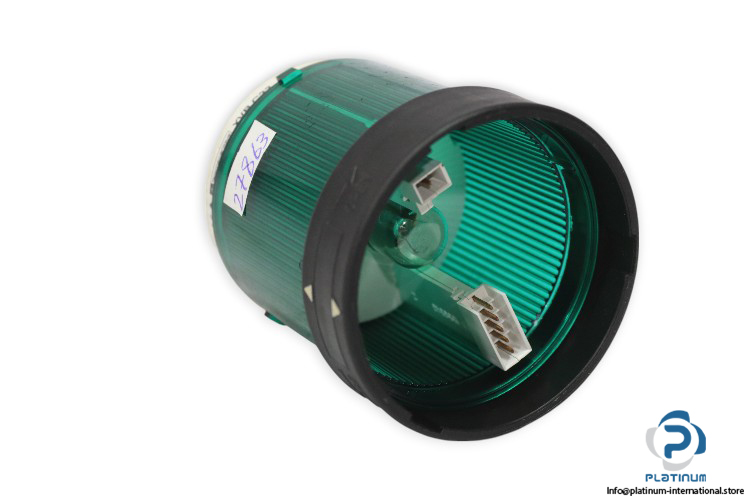

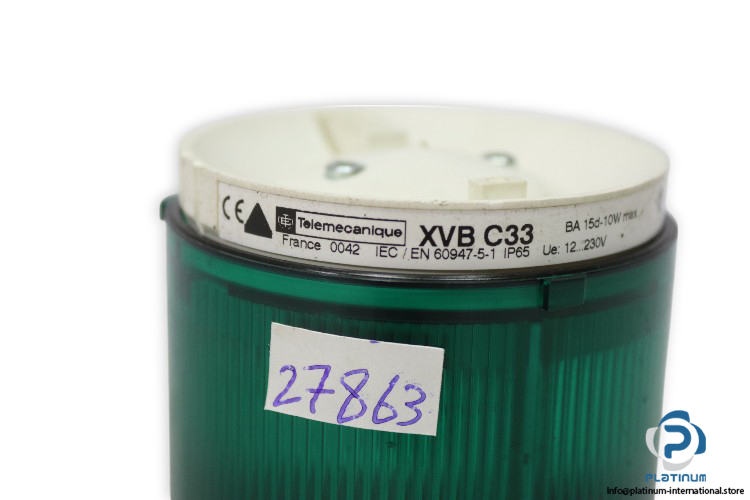

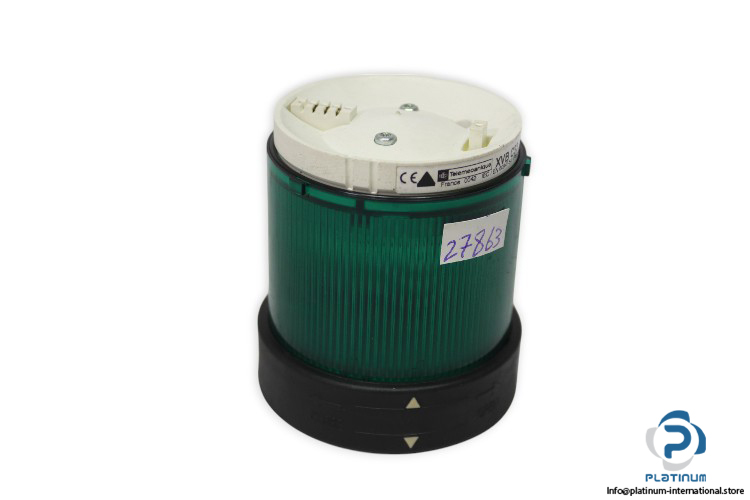

Telemecanique XVBC33 Illuminated Lens Unit

Manufacturer: TELEMECANIQUE

Type: Illuminated Lens Unit

Model: XVBC33

Ref. No.: BA15d-10W

Range of Product: Harmony XVB Universal

Product/Component Type: Indicator Bank

Signaling Type: Steady

Rated Supply Voltage: 12 to 230 V

Rated Insulation Voltage: 250 V

Rated Impulse Withstand Voltage: 4 kV

Maximum Power Dissipation: 10 W

Light Source: Bulb not included, Green

Bulb Type: Incandescent BA 15d, Protected LED

Connections – Terminals: Screw clamp terminals, 1 x 1.5 mm² with cable end

Pollution Degree: 2

Ambient Air Temperature for Operation: -25 to 50 °C (LED), -25 to 70 °C (Incandescent)

Protection Degree: IP65

Material: Polycarbonate

Mounting Diameter: 70 mm

This TELEMECANIQUE XVBC33 illuminated lens unit is part of the Harmony XVB Universal series and designed for use in industrial signaling and automation systems. With a wide supply voltage range of 12 to 230 V, it supports both incandescent and LED bulbs. Its green lens and IP65 protection rating make it suitable for demanding environments. Engineered for reliable visual signaling, this unit features a rugged polycarbonate body and screw clamp terminals for secure connections. Ideal for control panels and machinery requiring visual status indication.
