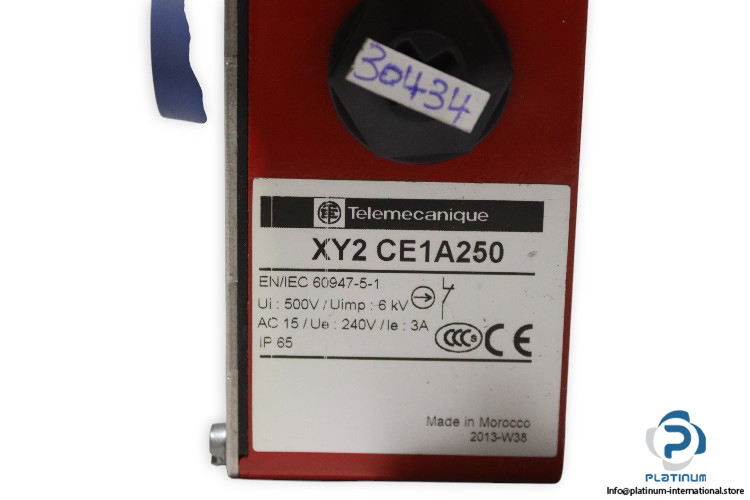

Telemecanique XY2 CE1A250 Safety Switch
New
In stock1 unitReady to ship
Emergency Stop Rope Pull Switch
The Telemecanique XY2CE1A250 is a safety latching emergency stop rope pull switch with durable zamak body, stainless-steel cover, IP65 protection, and 70 m maximum cable length.60947-5-1AutomationComponentsEmergencyEn/IecIndustrialIP65LatchingPullRopeSafetySidedSingleStopSwitchTelemecaniqueXY2CE1A250
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

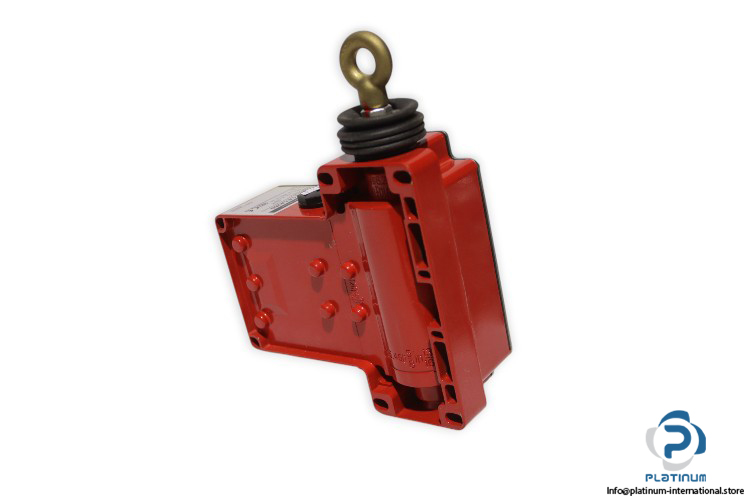

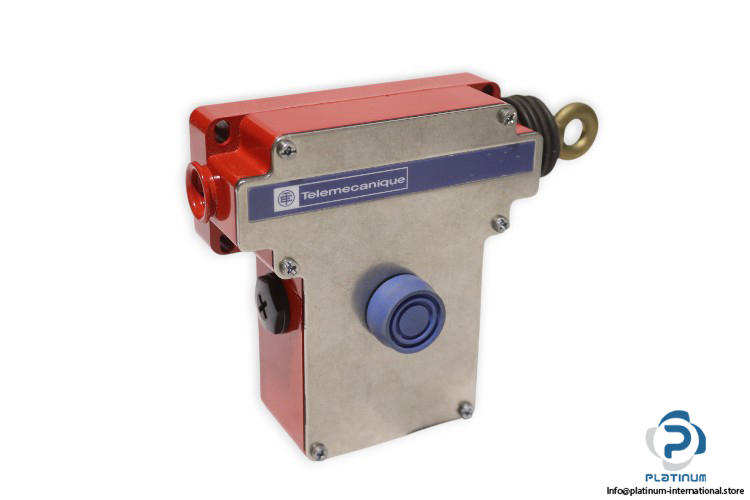

Telemecanique XY2CE1A250 Latching Emergency Stop Rope Pull Switch
The Telemecanique XY2CE1A250 is a robust latching emergency stop rope pull switch designed for enhanced safety in industrial environments. Built with a strong zamak body and stainless-steel cover, it ensures durability and reliability in demanding applications. With its wide operating temperature range, high protection degree, and compliance with international standards, this safety switch provides secure and efficient emergency stop functionality.
Manufacturer: Telemecanique
Type: Latching Emergency Stop Rope Pull Switch / Safety Switch Single Sided Rope Switch
Model: XY2CE1A250
Order No.: 31863
| Range of Product | Telemecanique Emergency Stop Rope Pull Switches XY2C |
| Device Short Name | XY2CE |
| Housing Color | Red RAL 3000 |
| Local Signaling | Without Pilot Light |
| Trigger Cable Maximum Length | 70 m |
| Contacts Electrical Parameters | 240V AC / 3A, 250V DC / 0.27A |
| Insulation Voltage Ui | 500 V |
| Rated Impulse Withstand Voltage Uimp | 6 kV |
| Contacts Type and Composition | 1 NC + 1 NO |
| Contact Operation | Slow-break |
| Tightening Torque | 0.8 to 1.2 N·m |
| Operating Temperature | -25 to 70 °C |
| Body Material | Zamak |
| Standard | EN/IEC 60947-5-1 |
| Protection Degree | IP65 |
| Cover Material | Stainless Steel |
| Reset | By Booted Push-Button |
| Dimensions | 229 x 105 x 142 mm |
