Illuminated Control Button
22 mm illuminated control button body with chromium plated metal construction, rated 240 V AC, supplied with ZB2-BE101 normally open contact block for industrial control panels.22mmBlockButtonBW061ComponentContactControlHarmonyIlluminatedIndustrialmountPanelPushReturnSchneiderspringSwitchTelemecaniqueXACZB2ZB2-BE101
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

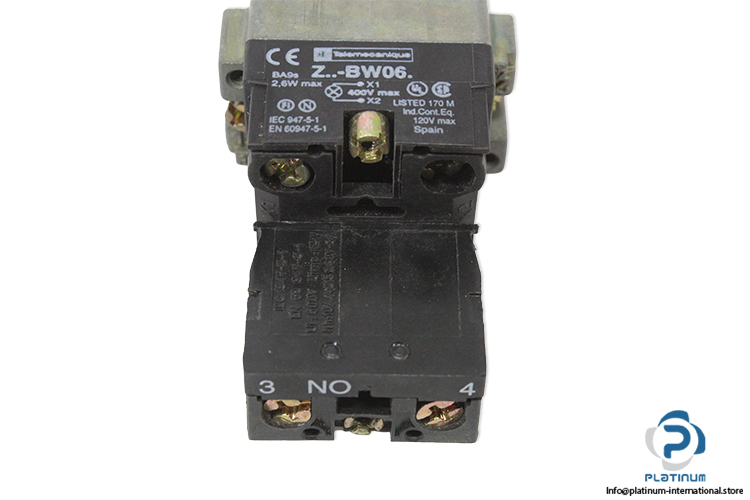

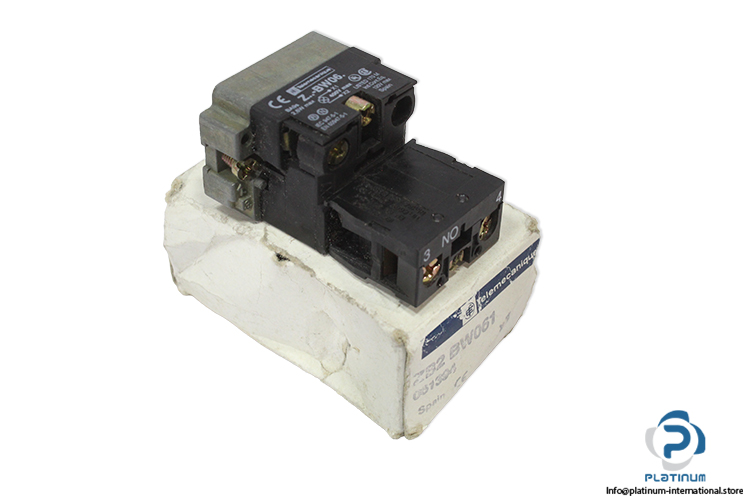

TELEMECANIQUE SCHNEIDER ZB2BW061 Illuminated Control Button Body
The TELEMECANIQUE SCHNEIDER ZB2 BW061 illuminated control button body is designed for industrial control panels and machinery operation. Built with chromium plated metal construction and equipped for incandescent illumination, it ensures durability and clear visual indication in demanding environments.
Manufacturer: TELEMECANIQUE SCHNEIDER
Type: Illuminated Control Button Body
Model: ZB2 BW061
Part No.: 061394

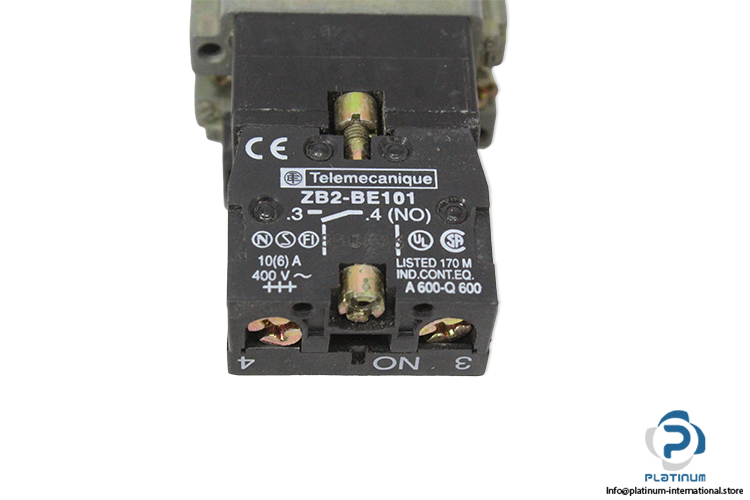

Attachment “ TELEMECANIQUE ZB2-BE101 Contact Block
| Series | ZB2 |
| Rated Operational Voltage | 240 V AC |
| Rated Operational Current | 3 A |
| Power | 2.6 W |
| Diameter | 22 mm |
| Bulb Base | BA 9s |
| Bulb Type | Incandescent |
| Material | Chromium Plated Metal |
| Component Name | ZB2 |
| Range Of Product | Harmony XAC |
| Application | Single Speed |
| Thermal Current (Ith) | 10 A |
| Rated Insulation Voltage (Ui) | 600 V |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Type Of Operator | Spring Return |
| Operating Force | 13 / 15 N |
| Auxiliary Contact | 1 Normally Open (NO) |
| Mounting Of Block | Front Mounting |
| Contact Operation | Slow-Break |
| Ambient Air Temperature For Operation | -25 / 70 °C |
