Telemecanique ZC2 JC1 Limit Switch

TELEMECANIQUE ZC2 JC1 Limit Switch

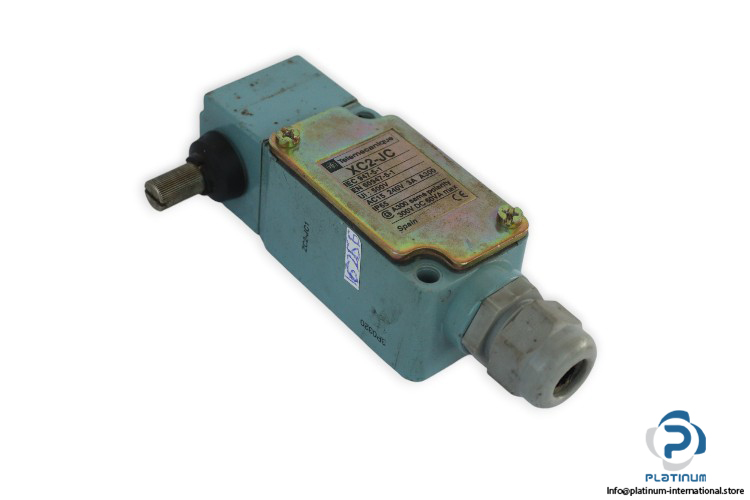

The TELEMECANIQUE ZC2 JC1, also known by its alternative model XC2-JC or IEC 947-5-1, is a durable and reliable limit switch from the OsiSense XC range. This rotary-head switch is designed for precise actuation from both clockwise (CW) and counterclockwise (CCW) directions, making it ideal for a variety of industrial applications.

Key Features:

• Manufacturer: TELEMECANIQUE
• Type: Limit Switch

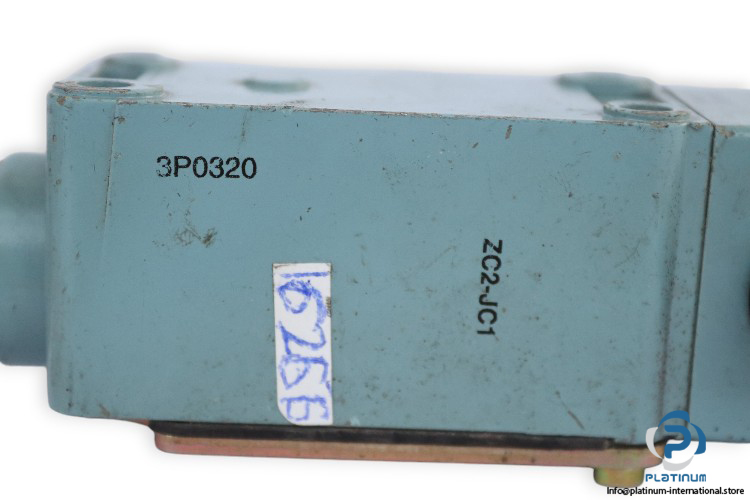

• Model: ZC2 JC1

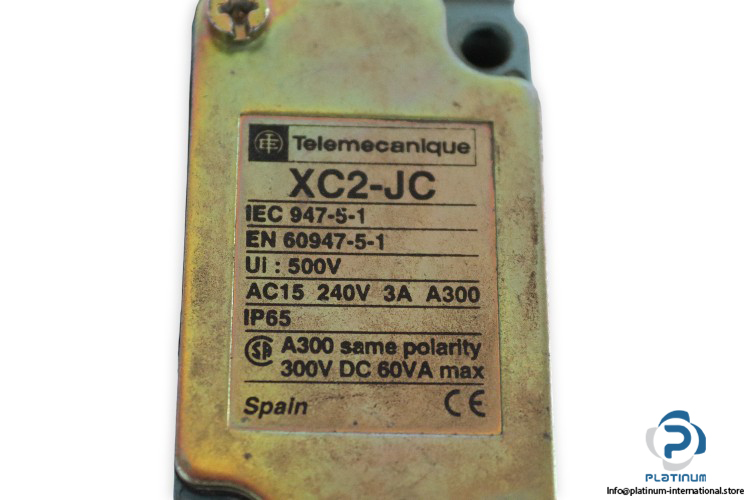

• Alternative Model: XC2-JC / IEC 947-5-1

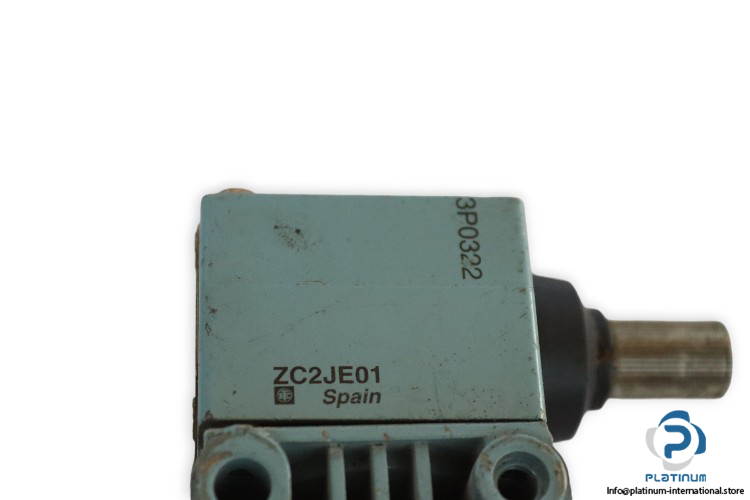

• Part No.: ZC2JE01
• Range: OsiSense XC
• Head Type: Rotary head
• Actuation: From left and right (CW and CCW)
• Body Type: Fixed
• Rated Operational Current: 3 A at 240 V
• Rated Insulation Voltage (Ui): 500 V
• Thermal Current: 10 A
• Degree of Protection: IP65
• Number of Poles: 1
• Electrical Connection: Screw-clamp terminals
• Contacts Type and Composition: 1 Changeover (C/O)
• Contacts Material: Silver-plated
• Maximum Resistance Across Terminals: 0.25 mOhm
• Contact Operation: Snap action
• Material: Metal (Body and Head)
• Ambient Temperature: -25 / 70 °C
• Dimensions (W x H x D): 40 x 81 x 41 mm

Applications:

This limit switch is suitable for use in industrial automation, machine tools, material handling, and other mechanical systems requiring reliable position detection and actuation.
