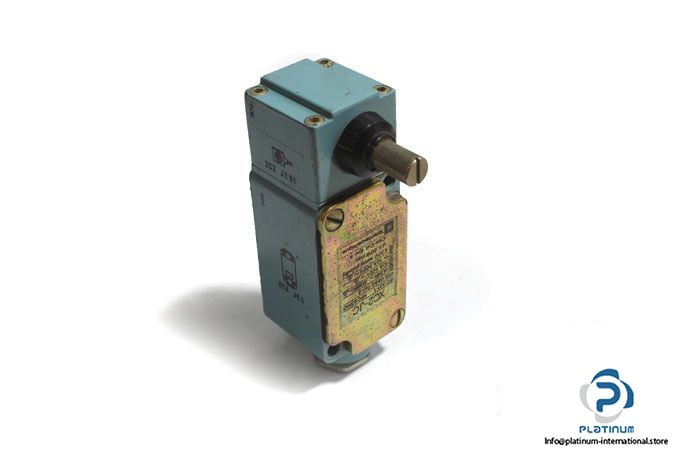

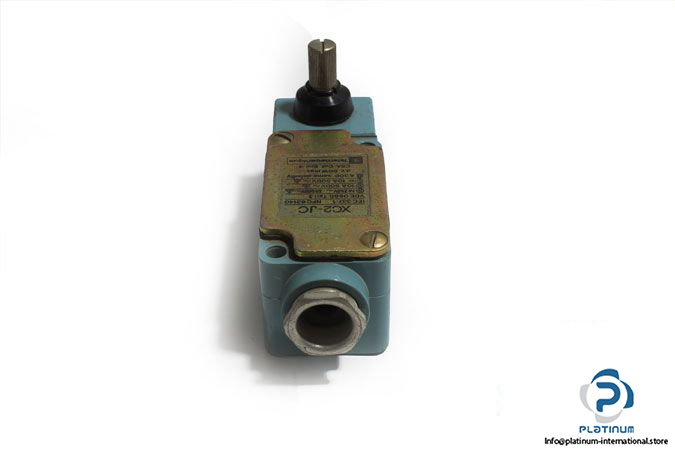

Telemecanique ZC2-JC1 Limit Switch

Manufacturer: Schneider Telemecanique

Type: Limit Switch

Device Short Name: ZC2J

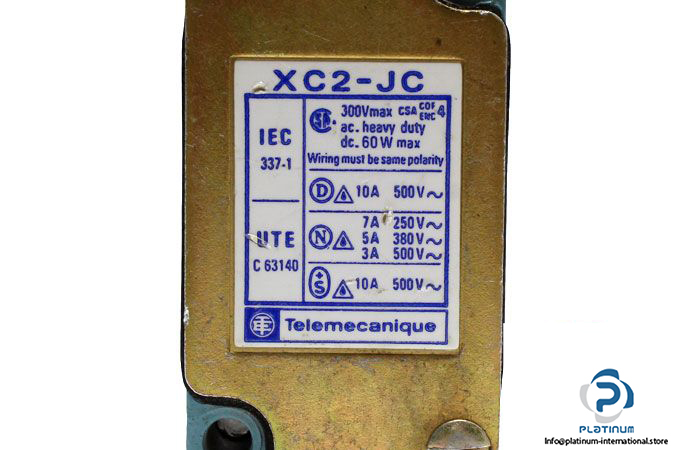

Product Compatibility: XC2JC

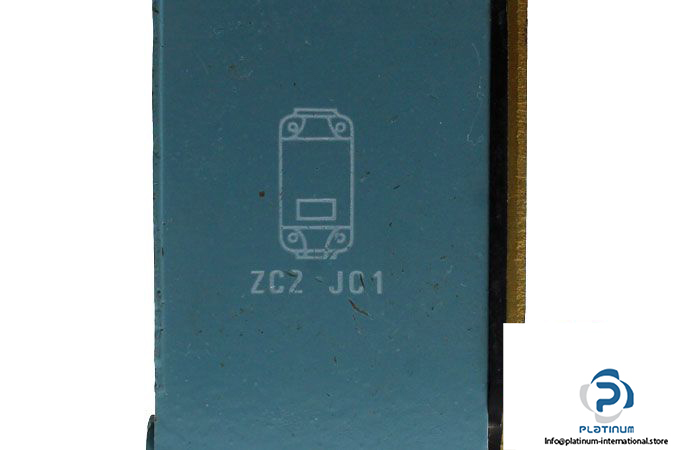

Body Model: ZC2-JC1

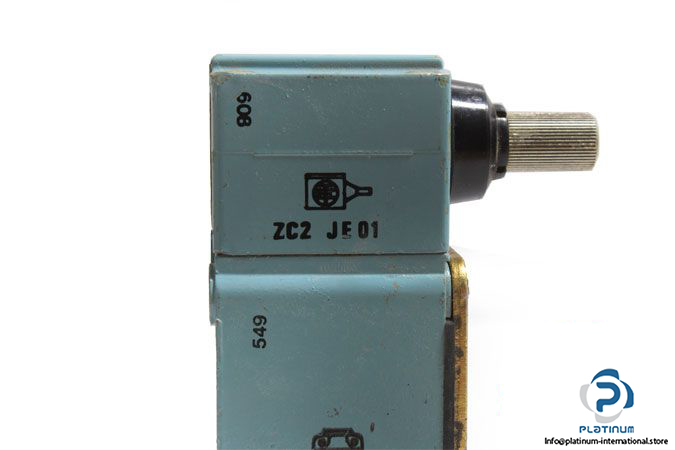

Head Model: ZC2 JE01

Output Configuration: 1 Normally closed + 1 Normally open

Contact operation: Snap action

Switching Voltage max.: 240 V AC ,250 V DC

Contact Current max.: 3 A AC, 0.27 A DC

Connection: 41 x 40 x 81 mm

Protection Class: IP65

Ambient Operating Temperature: -25 … 70°C

Dimensions: 40 x 41 x 81 mm

Weight: 0.57 Kg
