Telemecanique ZC2 JC2 Limit Switch

TELEMECANIQUE ZC2 JC2 Limit Switch

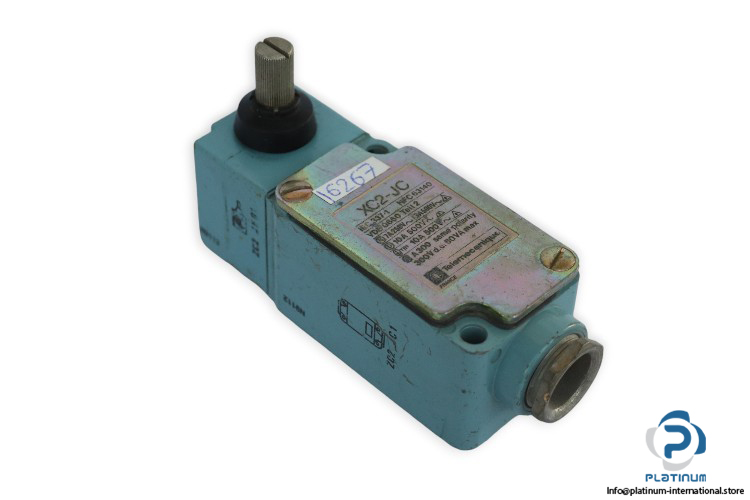

The TELEMECANIQUE ZC2 JC2, also known as XC2-JC or ZC2 JE01, is a robust and reliable limit switch designed for industrial applications. Part of the XC Standard range, this switch offers exceptional performance in automation and position detection systems.

Key Features:

• Manufacturer: TELEMECANIQUE
• Type: Limit Switch
• Model: ZC2 JC2

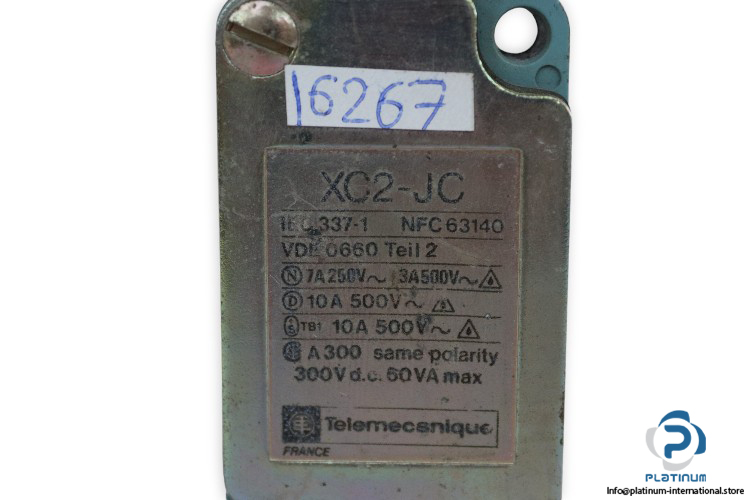

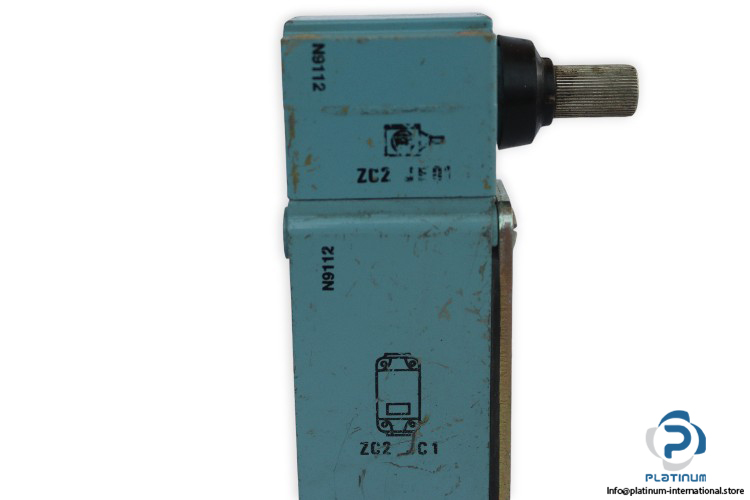

• Alternative Model: XC2-JC / ZC2 JE01
• Range: Telemecanique Limit Switches XC Standard
• Body Type: Fixed
• Rated Operational Current:
  • 3 A at 240 V (AC-15, A300) conforming to IEC 60947-5-1 appendix A
• Rated Insulation Voltage (Ui):
  • 500 V conforming to IEC 60947-1 for contact block
  • 300 V conforming to CSA C22.2 No 14 for contact block
• Thermal Current: 10 A
• Degree of Protection: IP65
• Number of Poles: 2
• Electrical Connection: Screw-clamp terminals
• Contacts Type and Composition: 2 Changeover (C/O)
• Contacts Material: Silver-plated
• Maximum Resistance Across Terminals: 0.25 mOhm
• Contact Operation: Snap action
• Body Material: Metal
• Ambient Temperature: -25 / 70 °C
• Dimensions (W x H x D): 40 x 81 x 41 mm

Applications:

This limit switch is ideal for industrial automation, machinery control, material handling systems, and any environment requiring precise and reliable switching operations.
