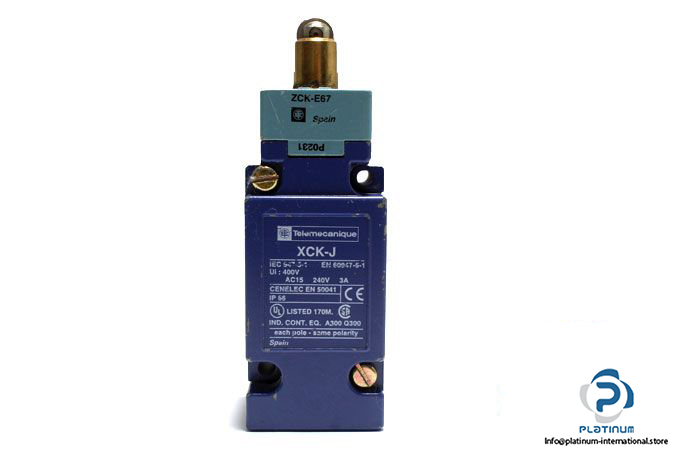

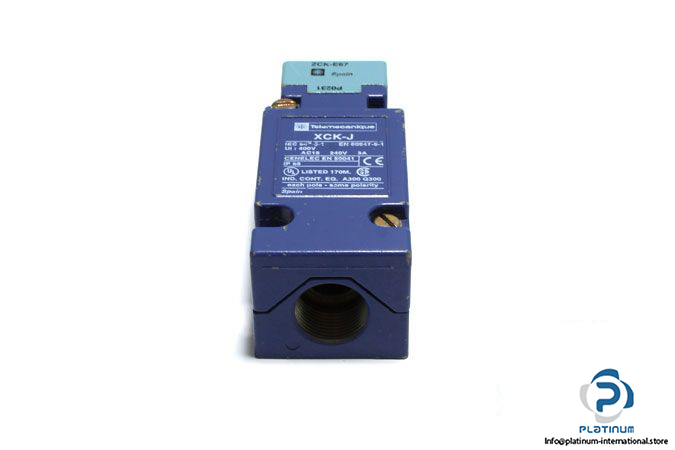

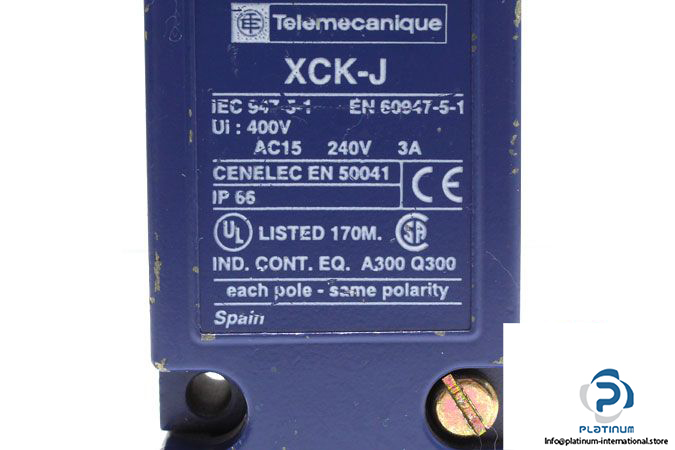

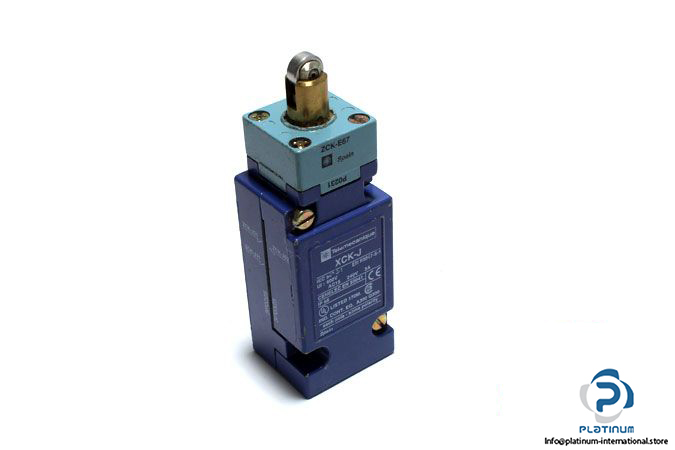

Telemecanique ZCK-J-21-02-41 XCK-J Limit Switch
Manufacturer: Schneider Telemecanique
Type: Limit Switch
Device Short Name: ZCKJ
Product Compatibility: XCKJ

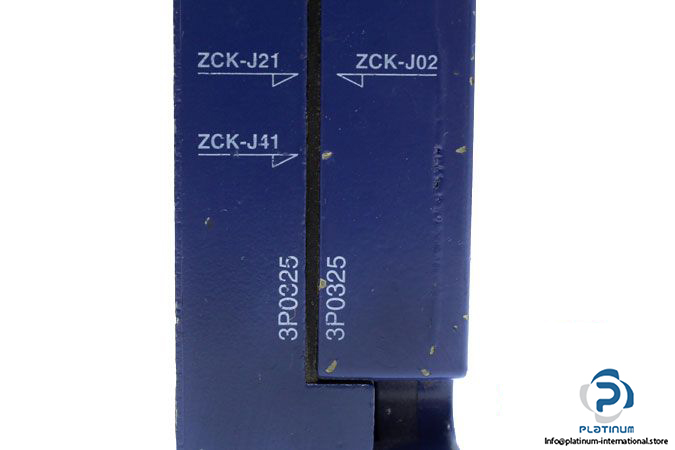

Plug-in Body Model: ZCK-J21 / ZCK-J41 / ZCK-J02

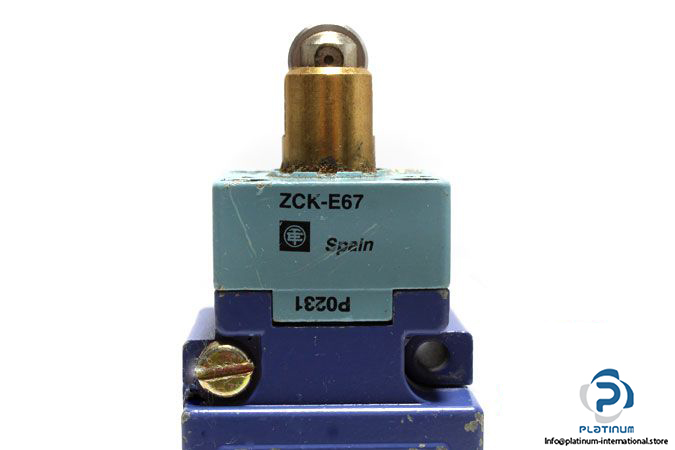

Head Model: ZCK-E67
Associated Head: End Reinforced Steel Roller Plunger
Number of Poles: 2
Contacts type and composition: 2 C/O
Contact Operation: Snap Action
Actuator Type: Roller
Insulation Voltage Max.: 400 V
Switching Voltage Max.: 240 V
Connection: Screw-Clamp Terminals, Pg 13.5 Cable gland
Protection Class: IP66
Dimensions: 42 x 37 x 126 mm
Body Material: Metal
Contacts Material: Silver Plated Contacts
Weight: 0.470 kg
