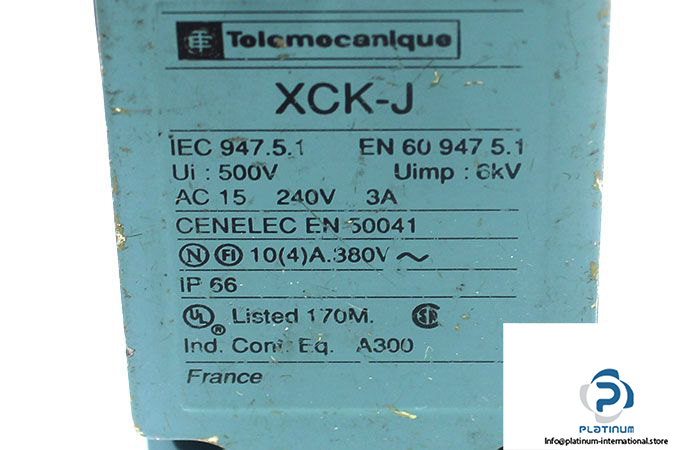

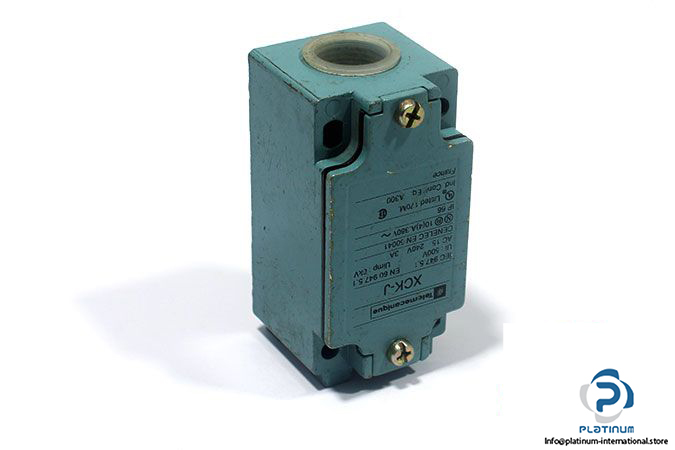

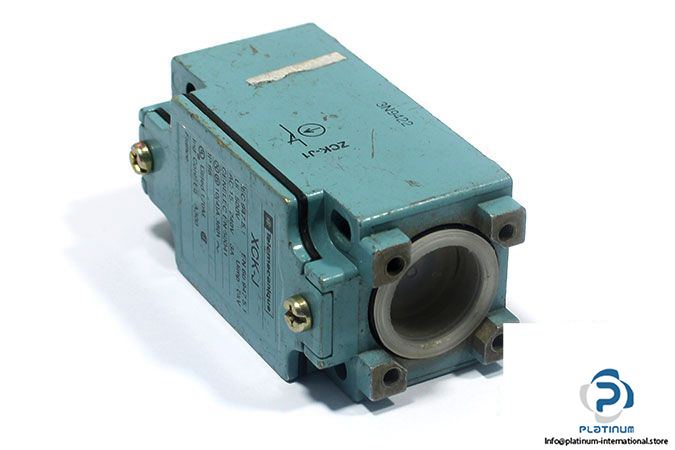

Telemecanique ZCK-J1 Limit Switch Body

Manufacturer: Schneider Telemecanique

Type: Limit Switch Body

Device Short Name: ZCKJ

Product Compatibility: XCK-J

Model: ZCK-J1

Output Configuration: 1 Normally Open + 1 Normally Closed

Contact Operation: Snap Action

Switching Voltage Max.: 380 V AC

Contact Current Max.: 10 A

Number of Poles: 2

Connection: 1 entry tapped for Pg13.5 cable gland

Protection Class: IP66

Ambient Operating Temperature: -25 … 70 °C

Housing Material: Metal

Dimensions: 40 x 44 x 81.5 mm

Mounting Dimensions: 30 x 60 mm

Weight: 0.34 kg
