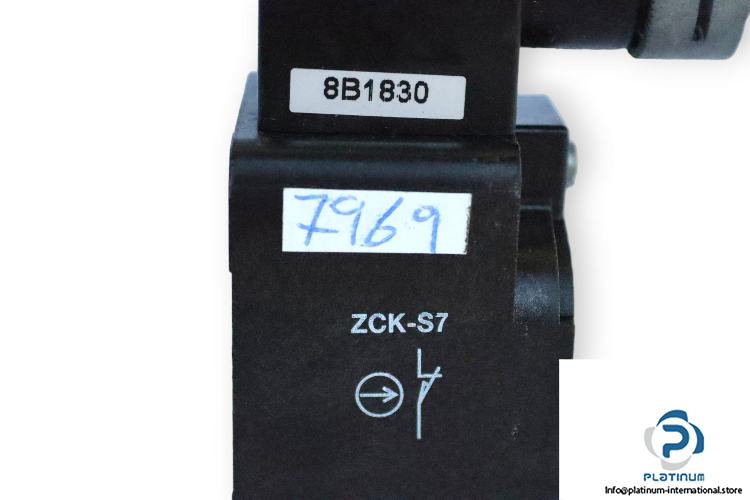

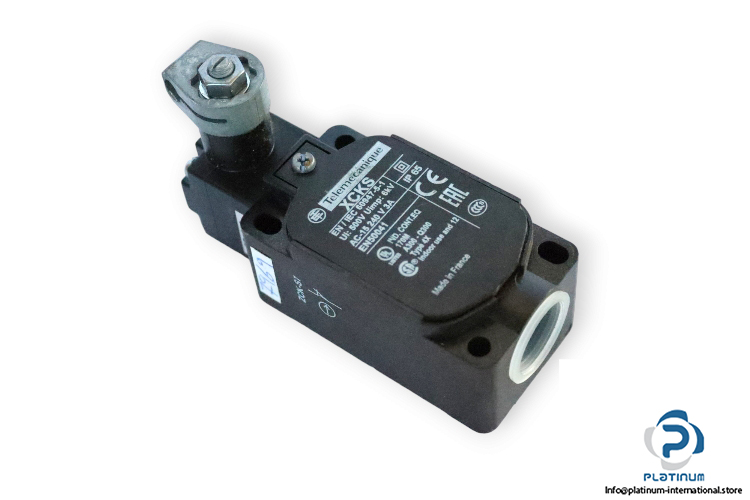

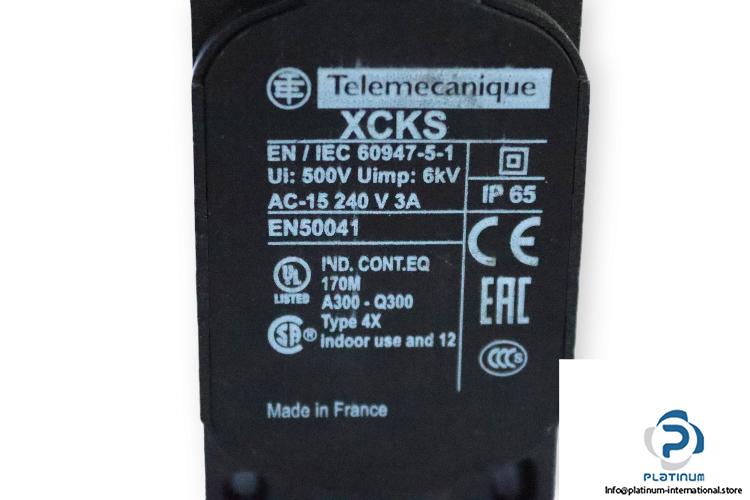

Telemecanique ZCK-S7 Limit Switch

Manufacture: Telemecanique
Type: Limit Switch
Device short name: ZCKS
Product compatibility: XCKS
Model: ZCK-S7
Part No.: 8B1830

Insulation voltage Ui: 500 V
Impulse with stand voltage Uimp: 6 Kv
 Conventional enclosed thermal current Ith: 10 A
Output Configuration: 2 NC
Number of poles: 2
Contact operation: Slow-break, simultaneous
Contacts material: Silver plated contacts
Electrical connection: Screw-clamp terminals, clamping capacity: 1 x 0.5…2 x 2.5 mm²
Switching Voltage max.: 240 V AC
Contact Current max.: 3 A
Protection Class: IP65
Ambient Operating Temperature: -25 … 70 °C
Dimensions: 40 X 73 X 36 mm
