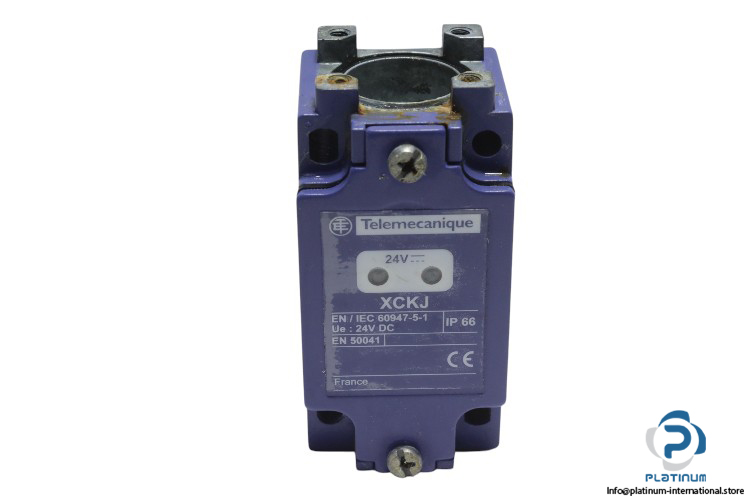

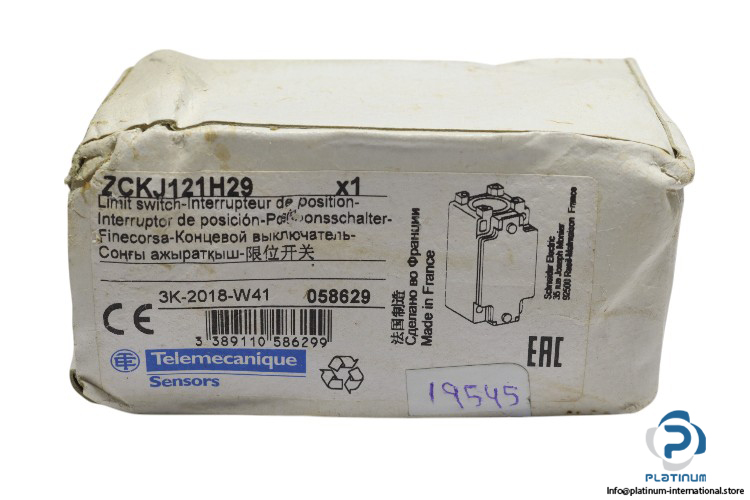

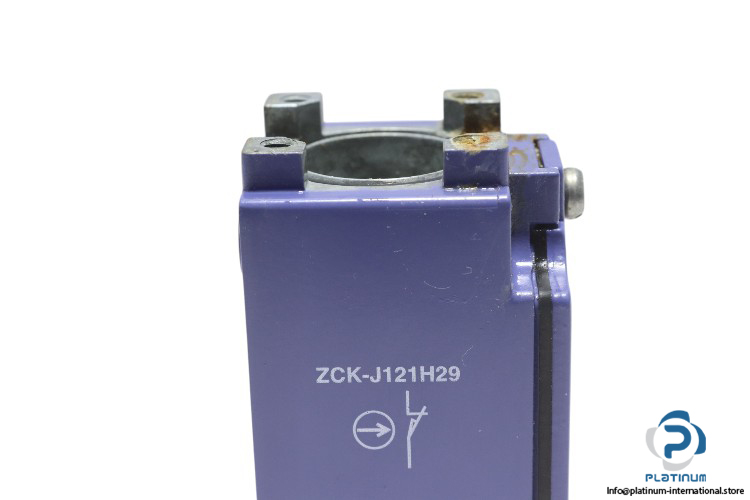

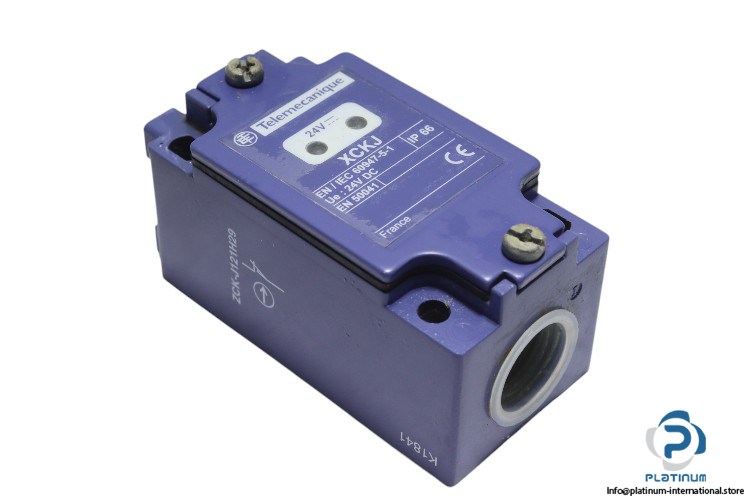

Telemecanique ZCKJ121H29 Limit Switch Body
Limit Switch Body
The Telemecanique ZCK-J121H29 Limit Switch Body features a 24 V DC rated voltage, IP66 protection, and metal body. Designed for reliable operation, it ensures precision control and safety in industrial applications.Telemecanique ZCK-J121H29 Limit Switch Body
The Telemecanique ZCK-J121H29 Limit Switch Body is designed for reliable operation in industrial applications, offering robust protection and precise control. With its metal body construction, snap-action contacts, and protection class IP66, this limit switch body ensures long-lasting and effective performance in demanding environments.
Manufacturer: Telemecanique
Type: Limit Switch Body
Model: ZCK-J121H29
Part No.: 058629
Device Short Name: ZCKJ
The Telemecanique ZCK-J121H29 limit switch body is engineered to provide reliable control and protection, making it an ideal choice for automation and machinery systems in industrial environments.
| Body Type | Fixed |
| Rated Voltage | 24 V DC |
| Short-Circuit Protection | 10 A |
| Rated Operational Current | 3 A at 240 V, AC-15 / 0.27 A at 250 V, DC-13 |
| Rated Impulse Withstand Voltage (Uimp) | 6 KV |
| Cable Entry | 1 entry tapped for M20 x 1.5 cable gland |
| Number of Poles | 2 |
| Electrical Connection | Screw-clamp terminals |
| Contacts Type and Composition | 1 NC, 1 NO |
| Contact Operation | Snap action |
| Contacts Material | Silver-plated contacts |
| Body Material | Metal |
| Protection Class | IP66 |
| Ambient Air Temperature for Operation | -25 to 70°C |
| Standard | EN/IEC 60947-5-1, EN 50041 |
| Dimensions | 40 x 77 x 44 mm |
