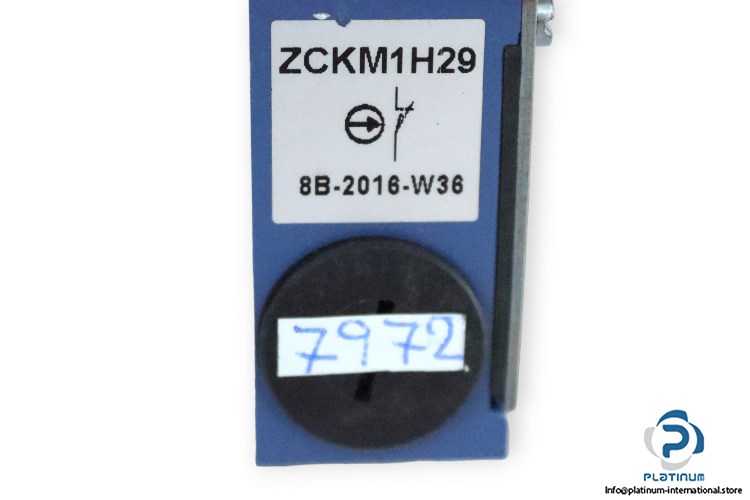

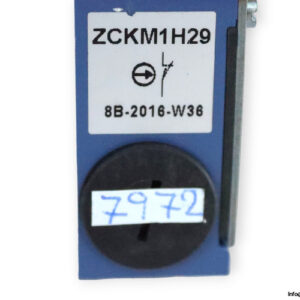

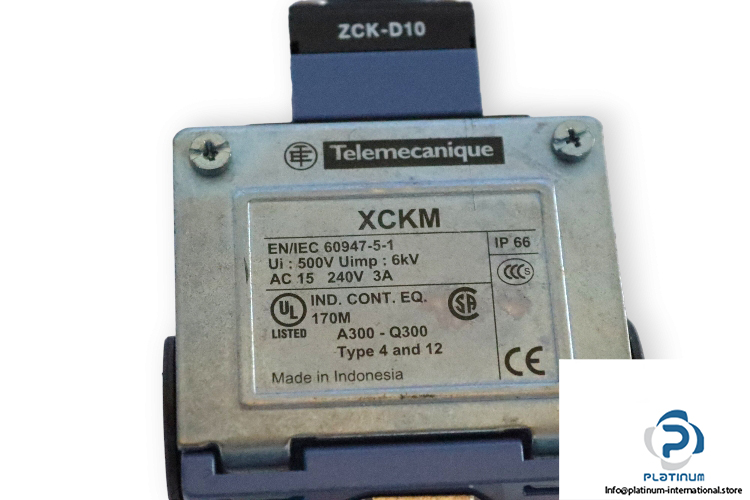

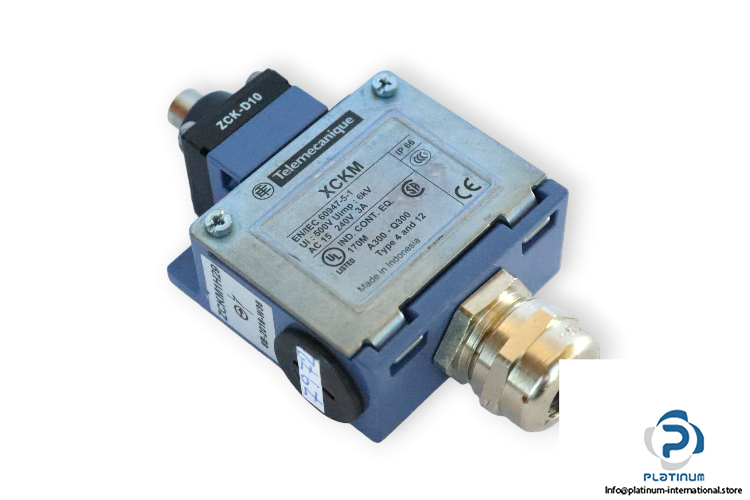

Telemecanique ZCKM1H29 Limit Switch

Manufacture: Telemecanique
Type: Limit Switch
Device short name: ZCKM / ZCK-D10
Product compatibility: XCKM
Model: ZCKM1H29

Insulation voltage Ui: 500 V
Impulse with stand voltage Uimp: 6 kV
Body material: Metal
Contacts type and composition: 1 NC + 1 NO
Contact operation: Snap action
Contacts material: Silver plated contacts
Cable entry: 3 entries tapped for M20 x 1.5 cable gland
Electrical connection: Screw-clamp terminals, clamping capacity: 1 x 0.34…2 x 1.5 mm²
Number of poles: 2
Switching Voltage max.: 240 V AC
Contact Current max.: 3 A
Protection Class: IP66
Ambient Operating Temperature: -25 … 70 °C
Dimensions: 64 X 64 X 30 mm
