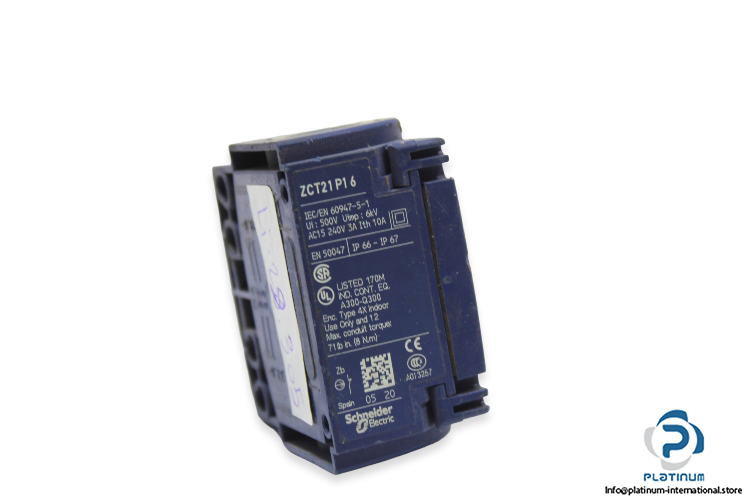

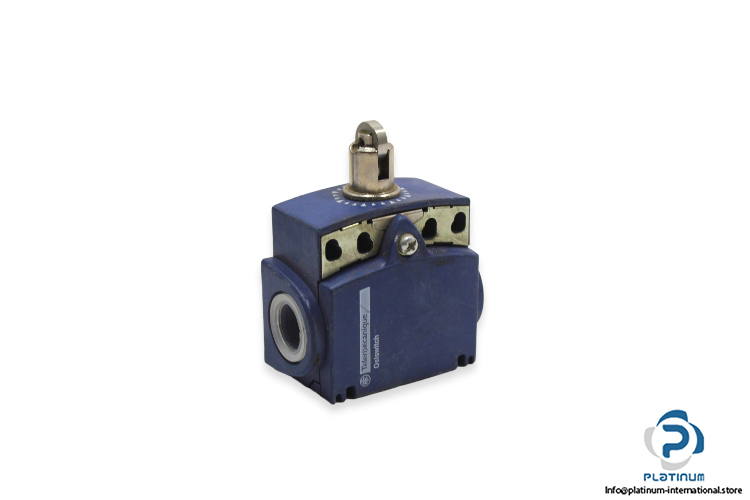

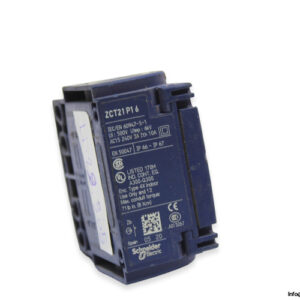

Telemecanique ZCT21P16 Limit Switch

Manufacturer: TELEMECANIQUE

Type: Limit Switch

Model: ZCT21P16

Device short name: ZCT



Output Configuration: 1 NC + 1 NO

Contact Operation: Snap action

Actuator Type: Roller Plunger

Switching Voltage max.: 240 V

Contact Current max.: 3 A

Connection: Screw-clamp terminals, clamping capacity: 1 x 0.34…2 x 1.5 mm²

Protection Class: IP66 IP67

Ambient Operating Temperature: -25…70 °C

Dimensions: 58 X 51 X 30 mm
