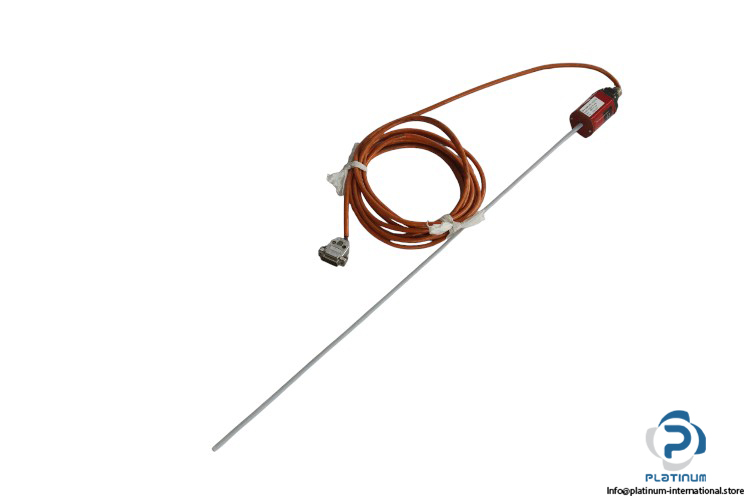

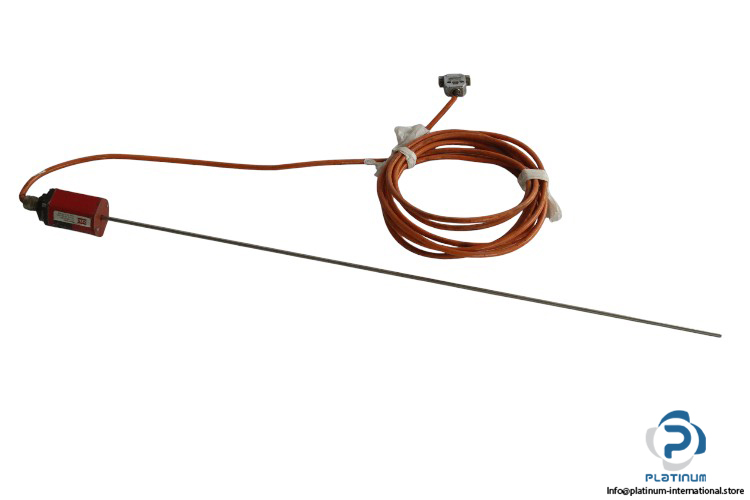

Temposonics / MTS RH-M-0600M-P05-1-S1G1100 Magnetostrictive Linear-Position Sensor
Linear-Position Sensor
The Temposonics RHM0600MP051S1G1100 is a high-precision magnetostrictive absolute non-contact linear-position sensor with a 600 mm stroke length, 25-bit Gray code output, and 0.005 mm resolution.Temposonics RHM0600MP051S1G1100 Linear-Position Sensor
The Temposonics RHM0600MP051S1G1100 is a high-precision magnetostrictive absolute non-contact linear-position sensor, designed for accurate and reliable position measurement. With a robust housing and advanced Gray code output format, it is ideal for industrial automation and motion control applications.
Manufacturer: Temposonics / MTS
Type: Magnetostrictive Absolute Non-contact Linear-Position Sensor

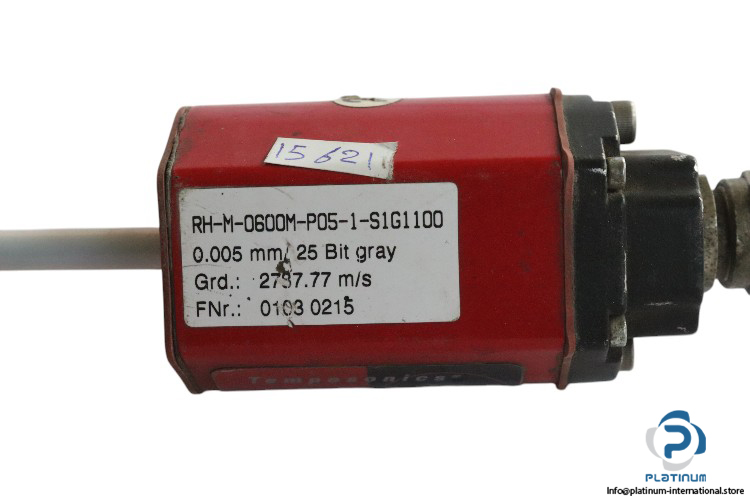

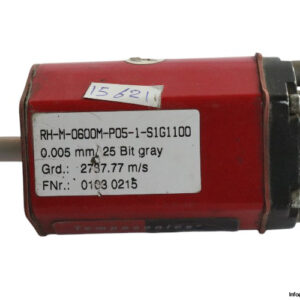

Model: RHM0600MP051S1G1100
Ref. No.: 0103 0215
6-digit Output:
Engineered for industrial environments, the RHM0600MP051S1G1100 ensures precise linear-position sensing with high resolution and robust performance.
| Housing Style | Metric threads, flat-faced flange and pressure tube, standard |
| Stroke Length | 600 mm |
| Connection Type | Integral cable |
| Input Voltage | 24 V DC |
| Data Length | 25 bits |
| Output Format | Gray code |
| Resolution | 0.005 mm |
| Filtering Performance | Standard, no filter |
| Signal Options | Measuring direction forward, async |
| Operating Temperature | -40 to +75 °C |
