TER PF2308K001 10/30A Slip Ring Collector
New
In stock1 unitReady to ship

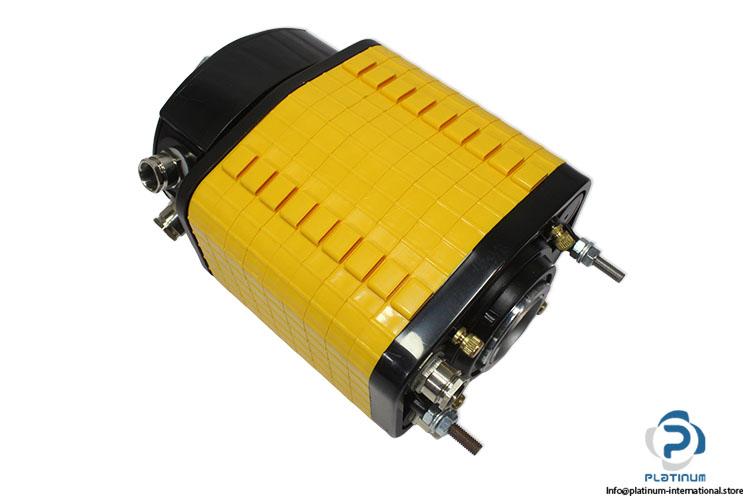

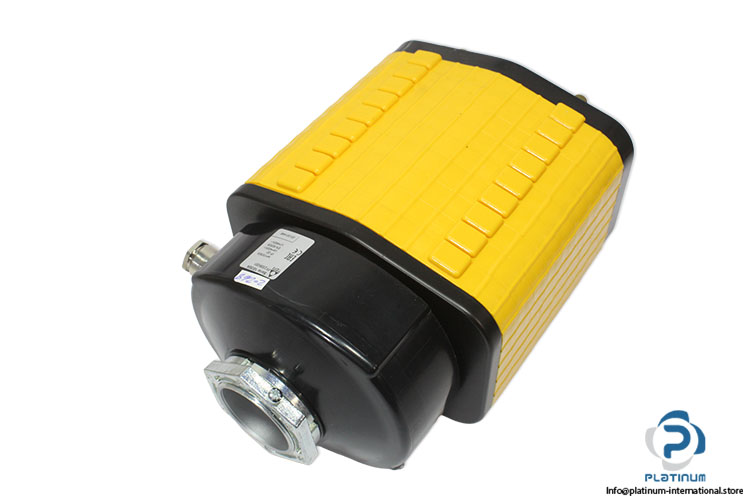

Slip Ring Collector / Electric Rotary Collector Industrial TER slip ring collector designed for continuous transmission of electrical power and communication signals between stationary and rotating equipment.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

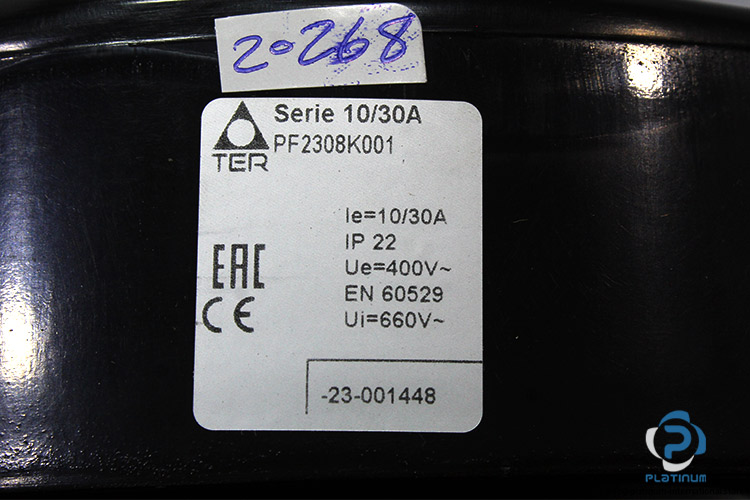

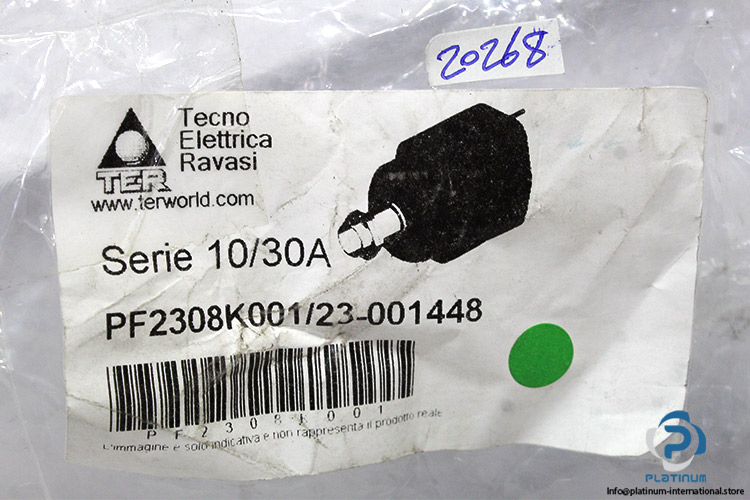

| Alternative Model | PF2308K001/23-001448 |
| Series | 10/30A |
| Suitable for | Transmitting Current with 50/60 Hz Frequency / Transmitting Audio, RS485 Or CAN Signals |
| Rated Operational Voltage | 400 V AC |
| Rated Insulation Voltage | 660 V AC |
| Rated Operational Current | 10 / 30 A |
| Speed Max. | 3 rpm (Phosphor Bronze Brushes) / 5 rpm (Graphite Brushes) |

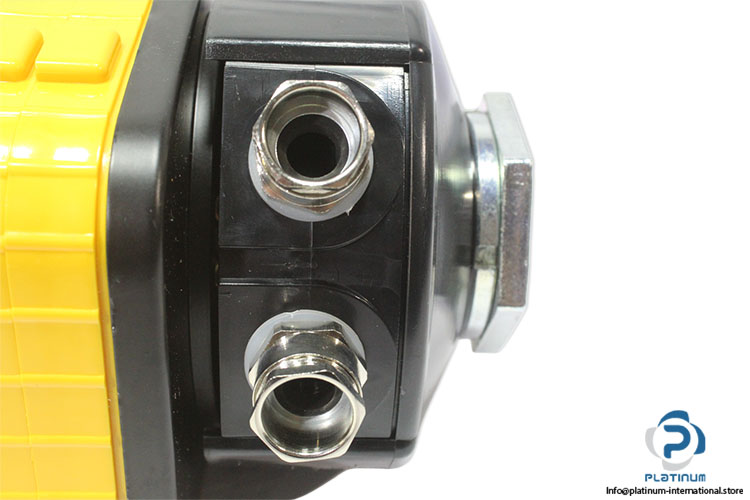

| Connection Type | Terminals with Dia. 4 mm Hole / Terminals with M4 Screw Accepting Ring Connectors |

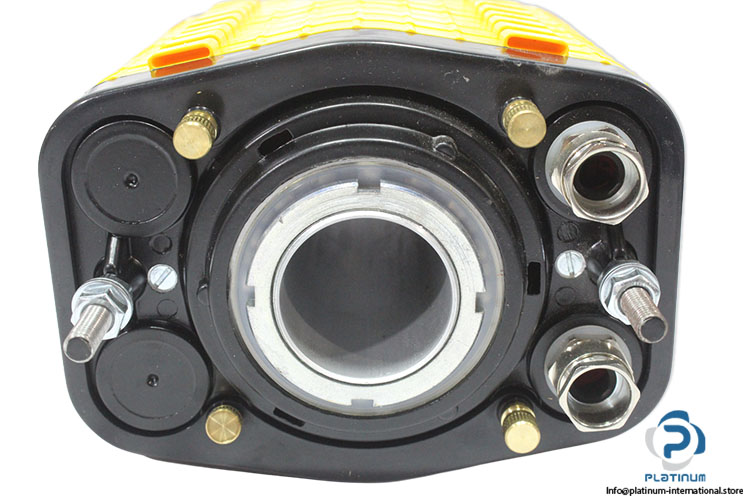

| Port Size | 45 mm |
| Protection Class | IP22 |
| Ambient Temperature | -25 … 70 °C |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1102295 |
| Weight | 1,67 |
