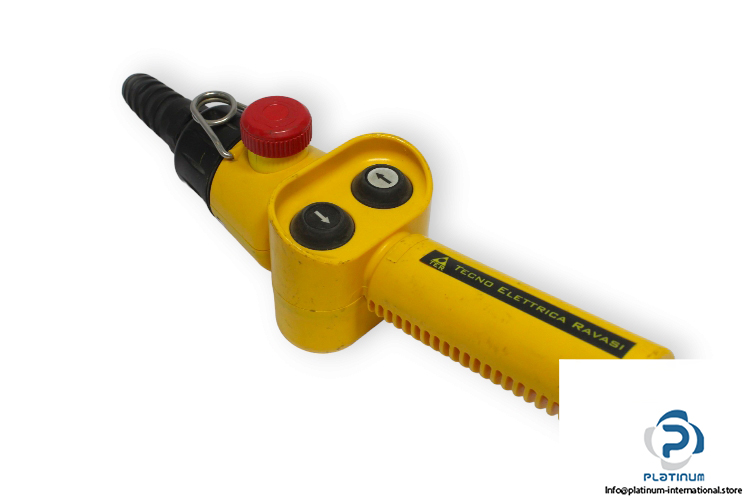

TER PF39030003 Pendant Control Remote
Manufacture: Ter
Type: Pendant control remote
Model: PF39030003
Series: Charlie
Rated operational current: 3 A
Rated operational voltage: 250 V
Rated thermal current: 10 A
Rated insulation voltage: 500 V AC
Mechanical life: 0,5×106 operations
Terminal referencing: According to EN 50013
Connections: Screw-type terminals
Cable entry: Cable clamp M20 – Spiral cable clamp PG16
Operating positions: Any position
Ambient temperature Operational: -25 …+70°C
Protection degree: IP 65
Dimensions: 346 x 95 x 90 mm
