Terasaki GM1S2V5 Manual Motor Starter
New
In stock2 unitsReady to ship
MANUAL MOTOR STARTER
Industrial-grade 3-pole motor starter with 1.6“2.5 A thermal range and 33 A magnetic trip. Built to IEC/EN standards and rated for 100 kA short-circuit protection at 400 V AC.1.6“2.5A100kA60947-260947-4-1690VBreakerCompliantControlDeviceENFDGM1IECIndustrialInsulationMagneticManualmotorOverloadProtectionS2V5Short-CircuitStandardStarterTerasakiThermal
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

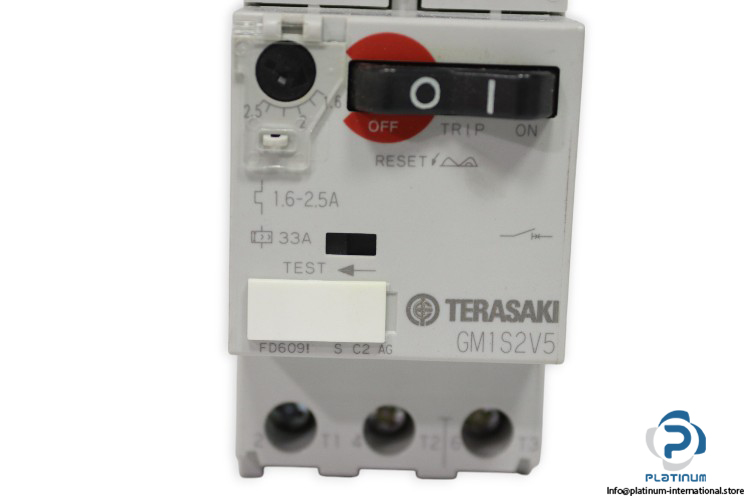

TERASAKI GM1 S2V5 MANUAL MOTOR STARTER
Engineered for industrial motor protection, this 3-pole manual motor starter offers reliable thermal and magnetic overload protection. Designed to meet international standards, it ensures dependable motor starting and short-circuit protection in demanding applications.
Manufacturer: Terasaki
Type: Manual Motor Starter
Model: GM1 S2V5
Ref. Code: FD609I S C2 AG / F57275553e L/L

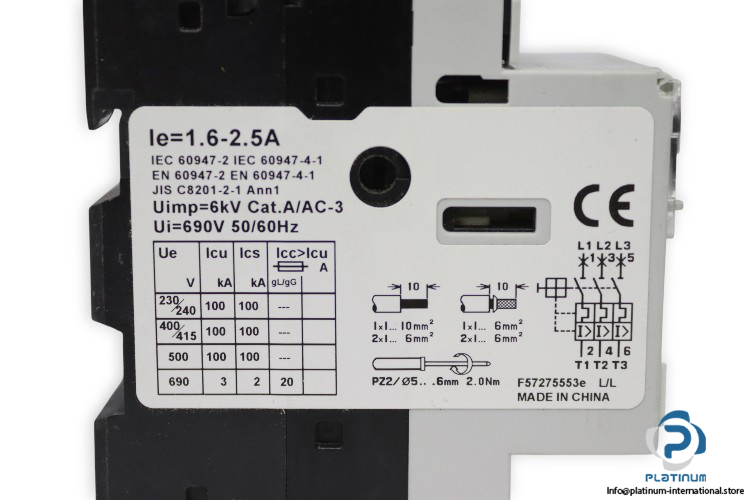

| No. of Poles | 3 |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Frequency | 50/60 Hz |
| Thermal Trip Adjustment Range | 1.6 to 2.5 A |
| Magnetic Release Current | 33 A |
| Operational Short-Circuit Breaking Capacity (Ics) | 100 kA at 400 V AC |
| Maximum Short-Circuit Breaking Capacity (Icu) | 100 kA at 400 V AC |
| Standards | IEC 60947-2, IEC 60947-4-1, EN 60947-2, EN 60947-4-1 |
