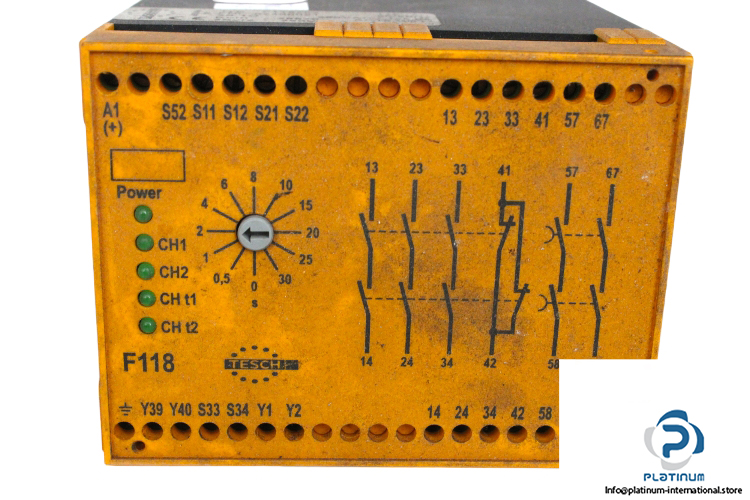

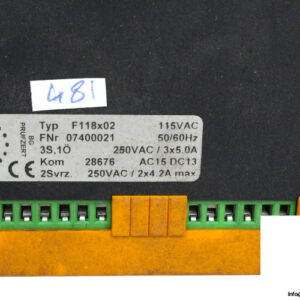

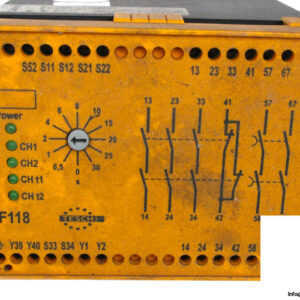

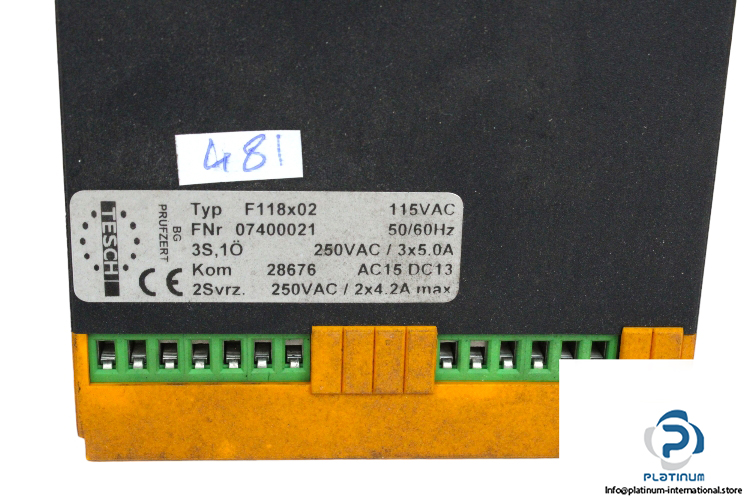

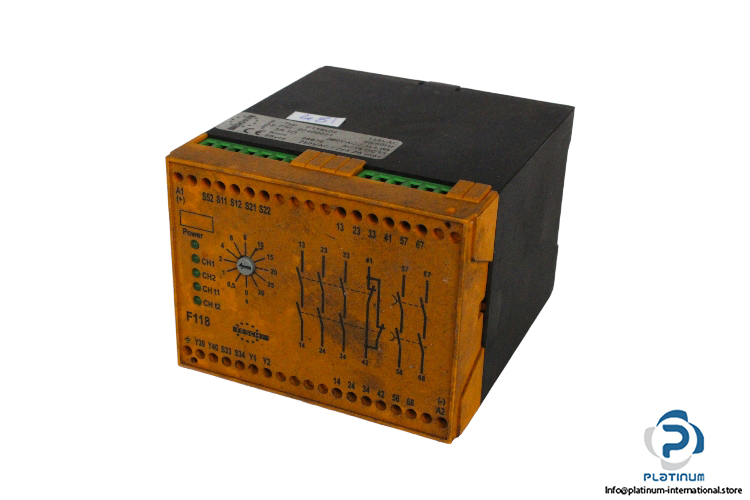

Tesch F118X02 Emergency-Stop Relay

Manufacturer: Tesch

Type: Emergency-Stop Relay

Model: F118X02

Part No: 07400021

Rated voltage: 115 V AC

Power consumption: 8.5 VA

Frequency: 50 … 60 Hz

Output contact:

Contact (undelayed): 3 N/O Safety ,1 N/C Auxiliary

Contact (delayed): 2 N/O Safety

Switching capacity:

1 contact 250 V AC, 3×5 A

1 contact 250 V AC, 2×4.2 A (max)

AC15: 250 V AC,5 A

DC13: 24 V DC,3 A

Terminal: terminal box with wire protection

Fuse: 6 A

Protection Degree: IP20

Ambient temperature: -5 … 55°C

Dimensions: 100 x 75 x 109.5 mm
