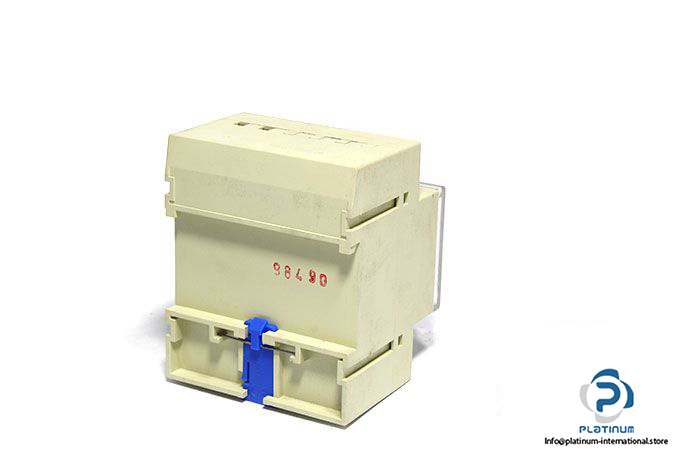

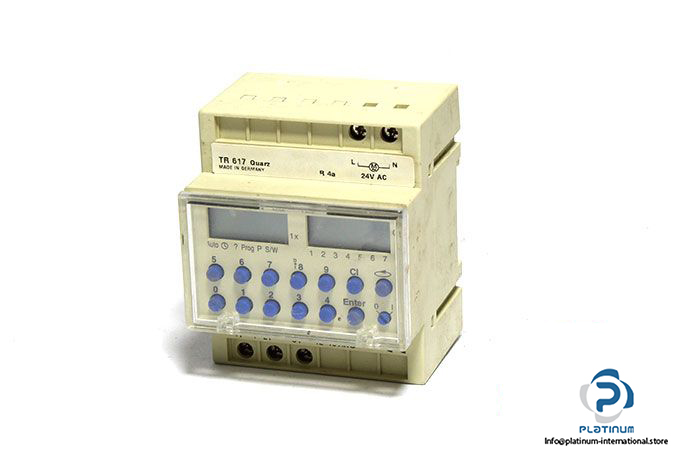

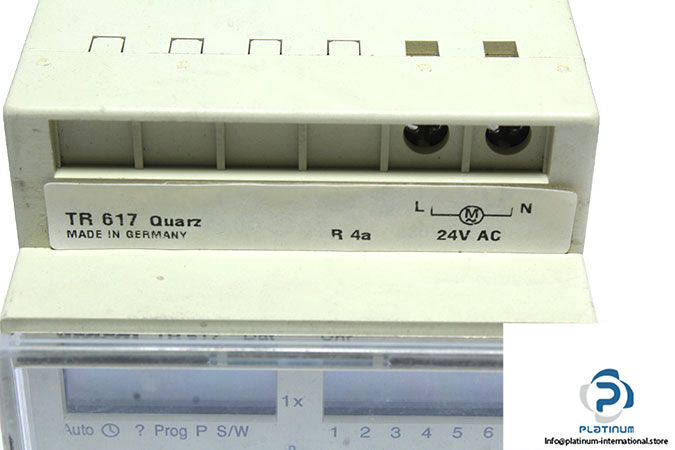

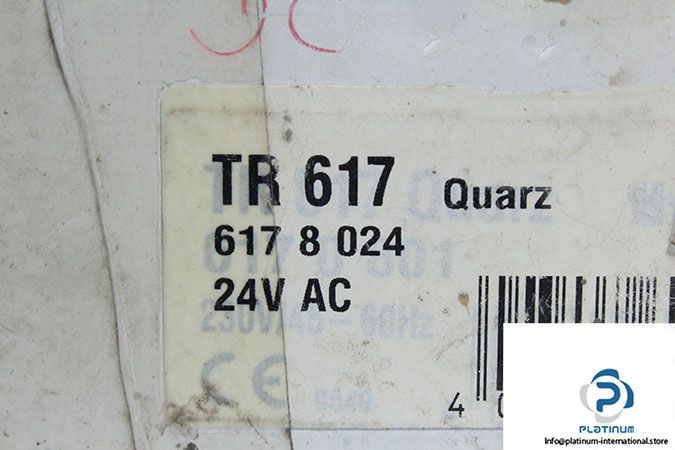

Theben TR 617 Quarz 1 Channel Timer
Manufacturer: theben
Type: 1 channel timer
Model: TR 617
Part No.: 617 8 024
Operating voltage: 230 V, ± 10 %
Mains frequency: 50 Hz
Own consumption: ca. 2 VA
Contact rating: 16 (10) A, 250 V ~, cos ϕ = 1 (0,6)
16 (10) A, 250 V ~, cos ϕ = 1(0,6)
Time base: quartz- controlled
Memory locations: 116
Shortest possible switching interval: 1 minute
Switching accuracy: precise-to-the second
Power reserve: approx. 4 years at 20°C
Admissible ambient temperature: – 10°C … + 50°C (– 10T50) Class of protection: II as per EN 60 335-1 for installation as prescribed.
Type of enclosure: IP 20 as per EN 60 529
Weight: 0.24 kg
