Thermibel TI6/2021/T89221/1.2 Thermocouple
Temperature Probe
The S.A Thermibel N.V TI62021T892211.2 Straight Pt100 probe ensures precise measurement from -200 to +600 °C. With explosion-proof housing, G ½ process connection, and ATEX certification, it is suited for hazardous industrial applications.S.A Thermibel N.V TI62021T892211.2 Straight Pt100 Probe

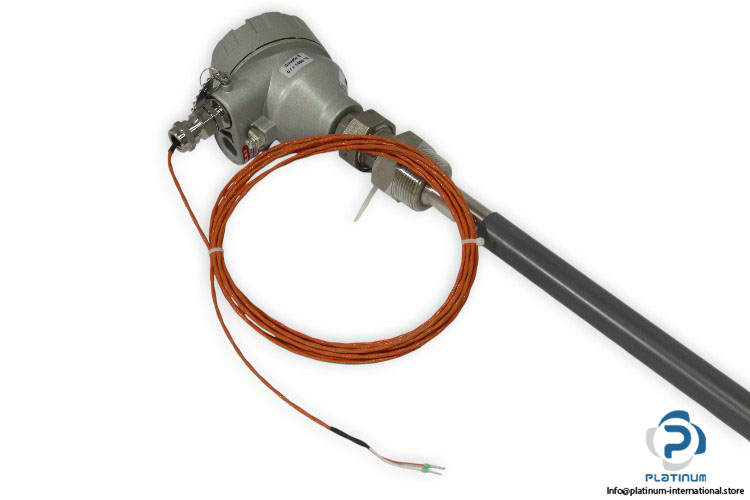

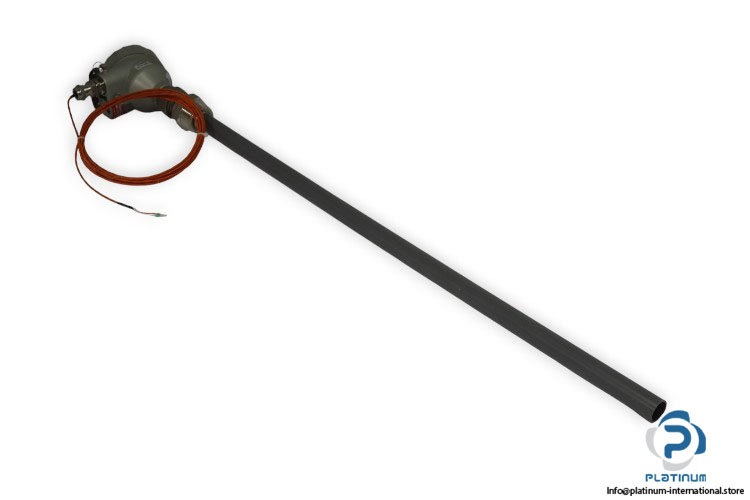

The S.A Thermibel N.V TI62021T892211.2 from the TI6 series is a straight Pt100 temperature probe equipped with a process connector and extension tube, featuring a replaceable sensing element. It is designed for demanding industrial environments requiring reliable and precise temperature measurement under hazardous conditions.
Manufacturer: S.A Thermibel N.V
Type: Straight Pt100 probe with process connector and extension tube - with replaceable sensing element
Model: TI62021T892211.2
Series: TI6
Applications
Chemical and petrochemical plants
Oil & gas industries
Power plants
Pharmaceutical and food processing industries
ATEX Zone 1 or Zone 21 classified environments

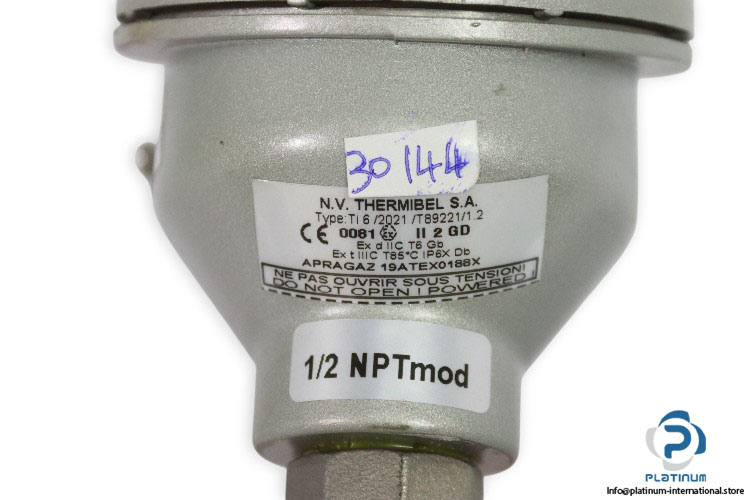

Certifications & Markings
CE certified
Ex (Explosion proof) classification
II 2 GD (Gas and dust hazardous areas)
Ex d IIC T6 Gb (Gas protection, flameproof, temp class T6)
Ex t IIIC T85°C Db (Dust protection, surface temp ‰¤ 85°C)
| Sensing Element | Pt100 |
| Temperature Range | -200 to +600 °C |
| Measuring Insert | Standard stainless steel 6 mm |
| Process Connection | G ½ |
| Connection Head | Standard DIN type B head with M20 cable gland |

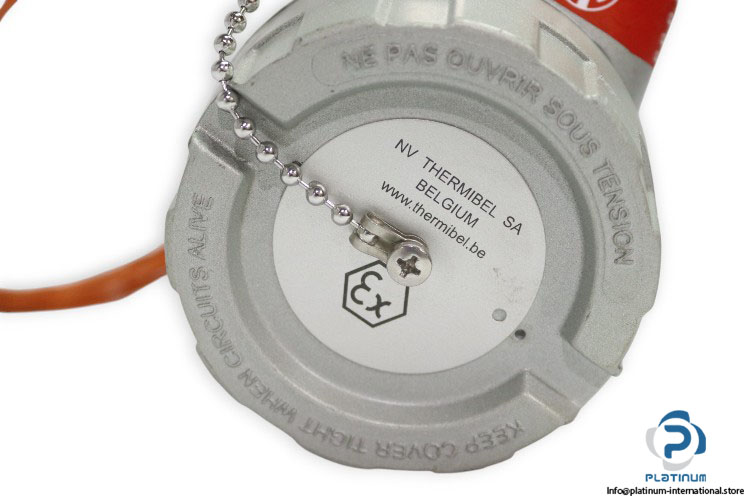

| Protection | Explosion-proof housing, flameproof cover with warning labels |
| ATEX Certificate | 19ATEX018X |
