Thermokon PS500 Differential Pressure Switch
New
Available on request
Differential Pressure Switch
The Thermokon PS500 Differential Pressure Switch provides accurate pressure monitoring with a range of 30 to 500 Pa and ±5 Pa accuracy. Designed for air or non-aggressive gases, it features IP54 protection and a temperature range from -20°C to +60°C.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

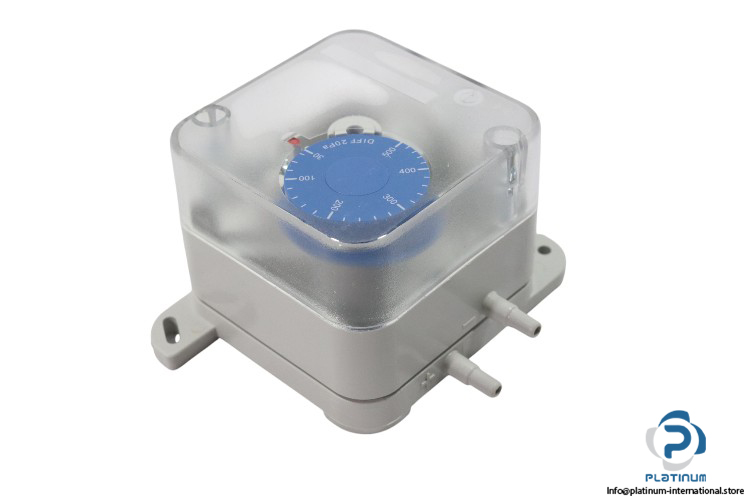

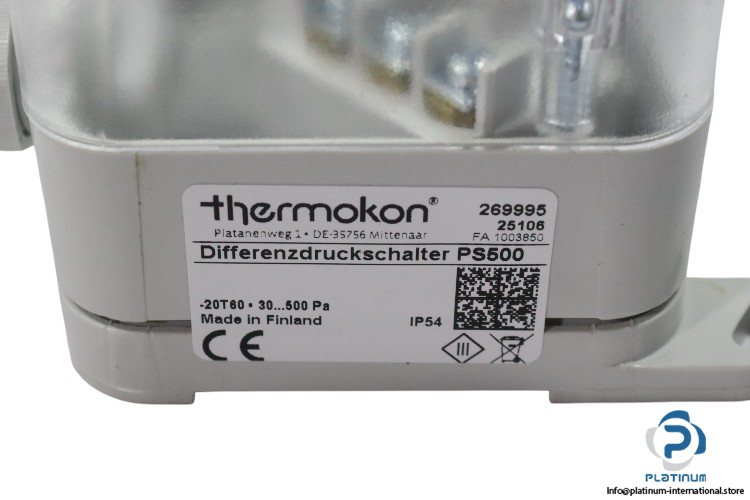

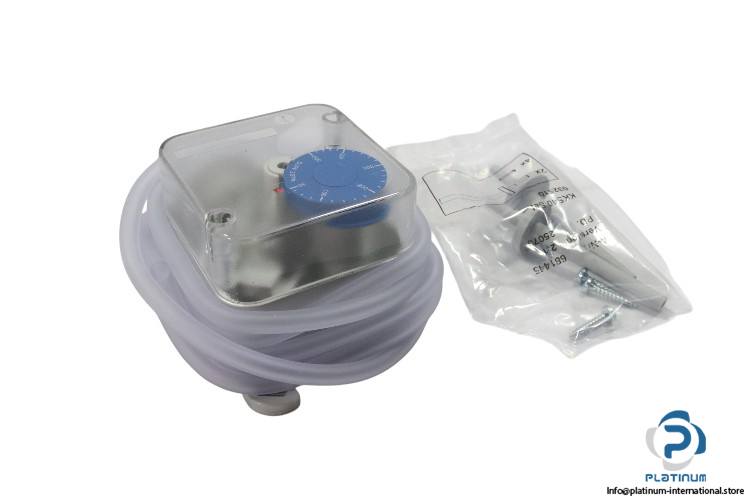

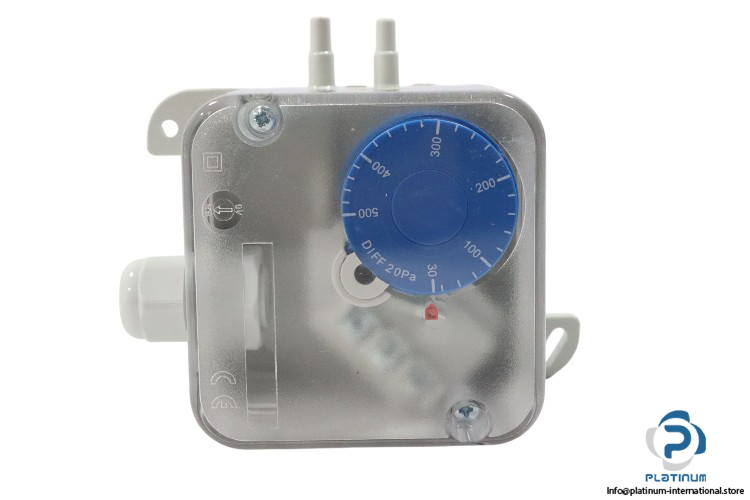

Thermokon PS500 Differential Pressure Switch
The Thermokon PS500 differential pressure switch is designed for precise monitoring of air or other non-flammable and non-aggressive gases in a wide range of industrial applications. With an accuracy of ±5 Pa and a measuring range of 30 to 500 Pa, it offers reliable performance in pressure monitoring tasks. It also features an IP54 protection rating, ensuring durability in various environmental conditions.
Manufacturer: THERMOKON
Type: Differential Pressure Switch
Model: PS500
Item No.: 269995
Ref No.: 25106 / FA 1003850
Technical Data:
- Operating Range Pressure: Air or other non-flammable/non-aggressive gases, max. 50 kPa
- Measuring Range Pressure: 30..500 Pa
- Accuracy Pressure: ±5 Pa (typ.)
- Enclosure: ABS, membrane silicone
- Protection (IP): IP54, according to EN 60529
- Connection: Cable entry M16
- Operating Range Temperature (°C): -20..+60
