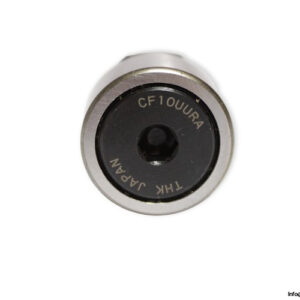

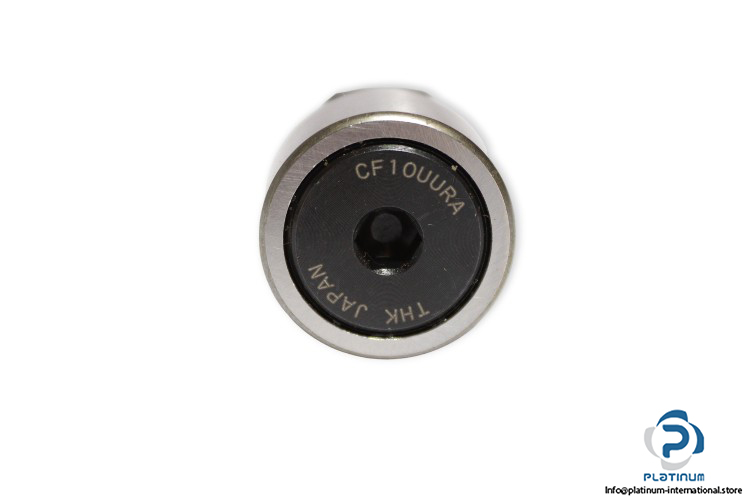

THK CF10UURA Stud Type CAM Follower

Manufacturer: THK
Type: Cam Follower with Hexagon Socket Model CF-A
Model: CF10UURA

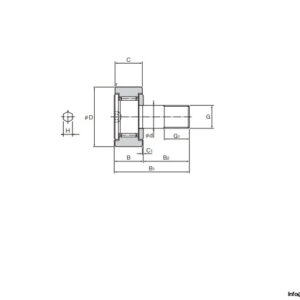

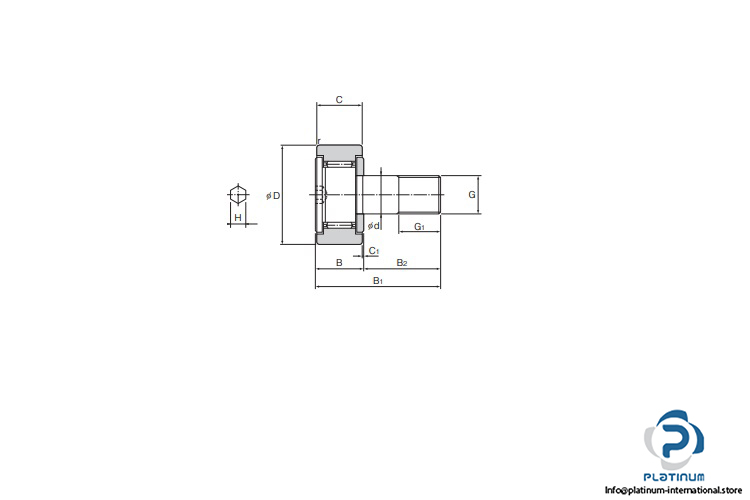

Dimensions
Outside diameter D: 22 mm
Attachment diameter d: 10 mm
Total length B₁: 36 mm
Width outer ring C: 12 mm
Thread stud G: M10×1.25
Basic load ratings:
Dynamic c: 5330 N
Static c₀: 6780 N
Track load capacity: 1670 N
Rotational speed limit: 17000 rpm
Maximum permissible load: 5810 N
Sealing: UU, with seal
Roller Guiding Method: With Cage
Roller Type: Spherical Outer Ring
Fastening Methods: Hex Socket on Head Side Only
