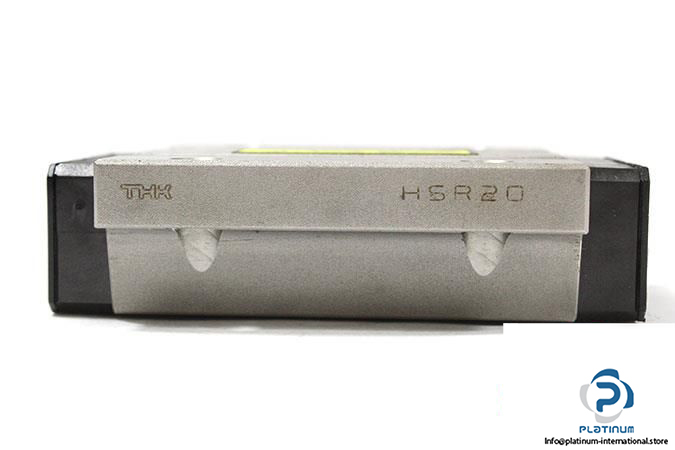

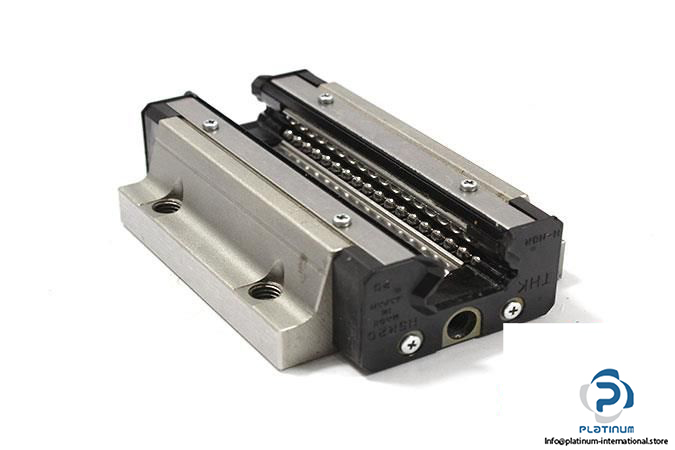

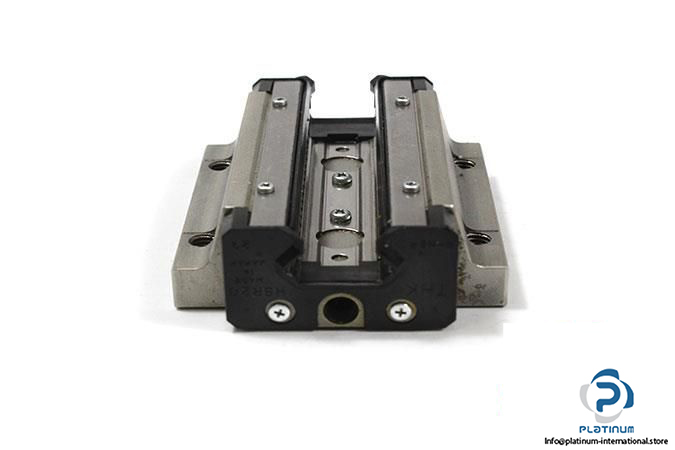

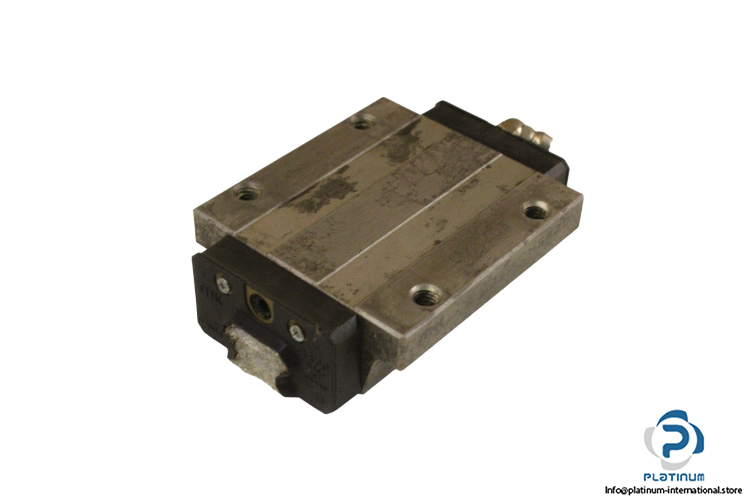

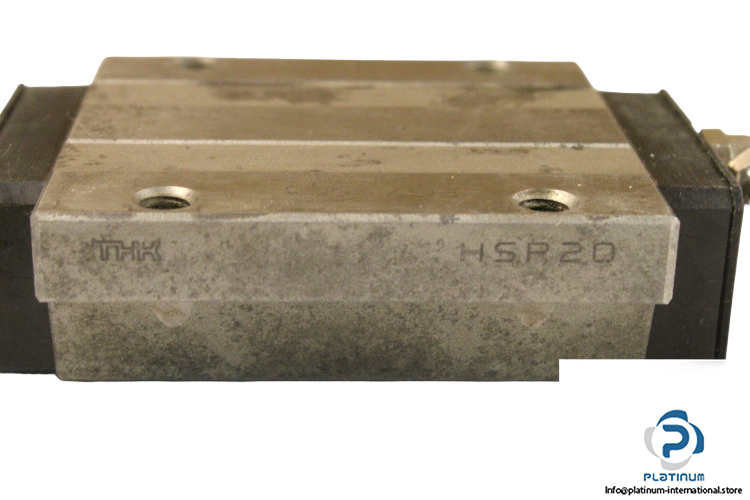

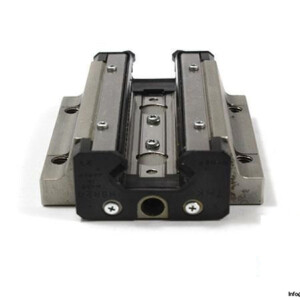

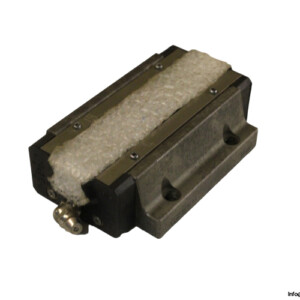

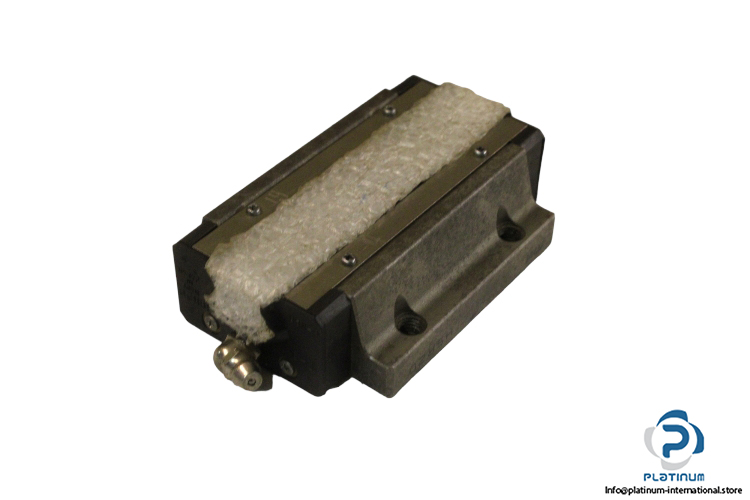

THK HSR20LA Linear Bearing Block

Manufacturer: THK

Type: Linear Guideway Block HSR

Model: HSR 20LA



Size: 20

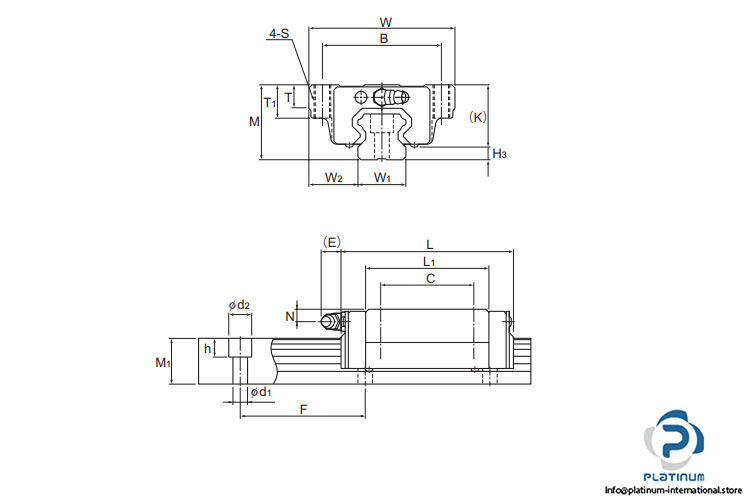

Dimensions

Total Height M: 30 mm

Block Height K: 26 mm

Block Width W: 63 mm

Block Length L: 90 mm

L₁: 66.8 mm

B: 53 mm

C: 40 mm

Block Type: Flange Type

Mounting Hole: 4 tapped holes

Basic Load Ratings:

Dynamic C: 21.3 kN

Static C₀: 31.8 kN
