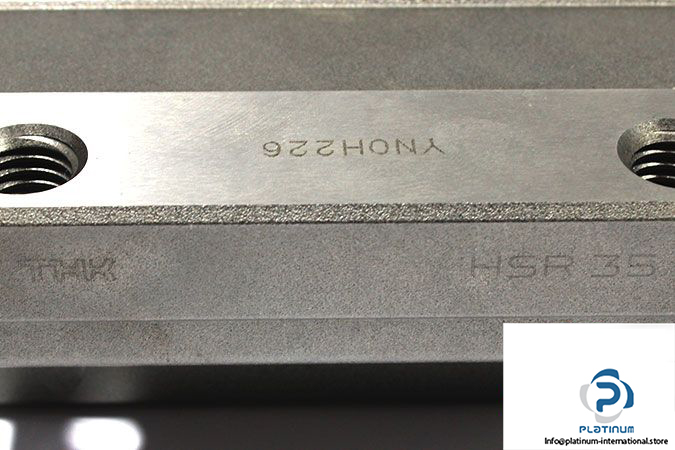

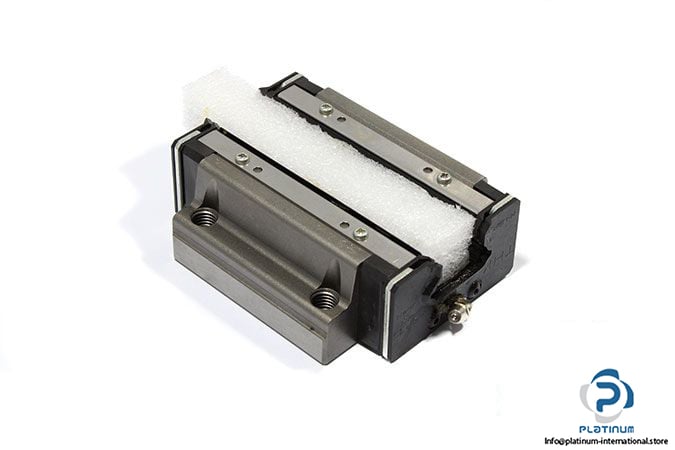

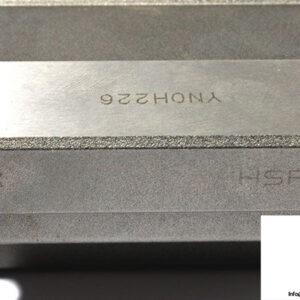

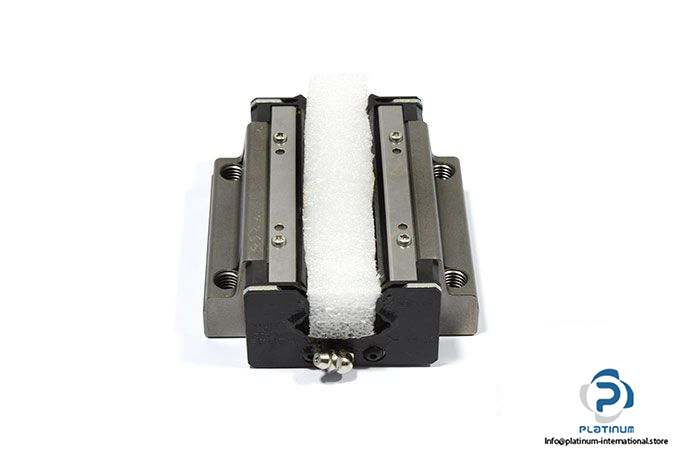

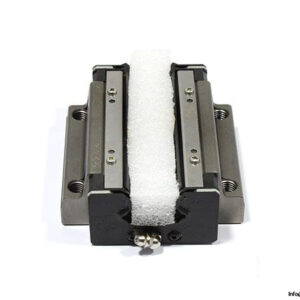

THK HSR35A Linear Bearing Block

Manufacturer: THK

Type: Linear Guideway Block HSR

Model: HSR 35A

Size: 35 mm

Block Type: Flange Type

Basic Load Ratings:

Dynamic C: 53.9 kN

Static C₀: 70.2 kN

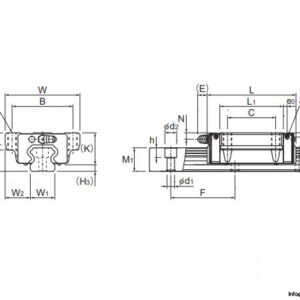

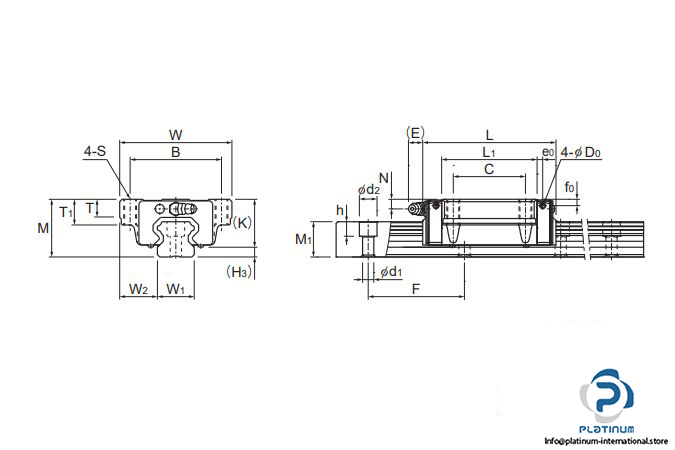

Dimensions

Total Height M: 48 mm

Block Width W: 100 mm

Block Length L: 109.4 mm

Mounting Hole: 4 tapped holes

B: 82 mm

C: 62 mm

Weight: 1.7 kg
