Thomas A. Edison 6331-01 DM Motor-Tachometer Generator-Gearhead
Used
In stock1 unitReady to ship

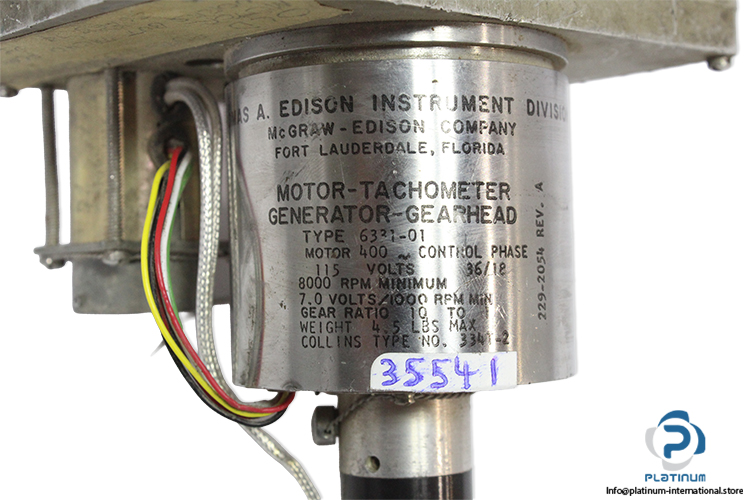

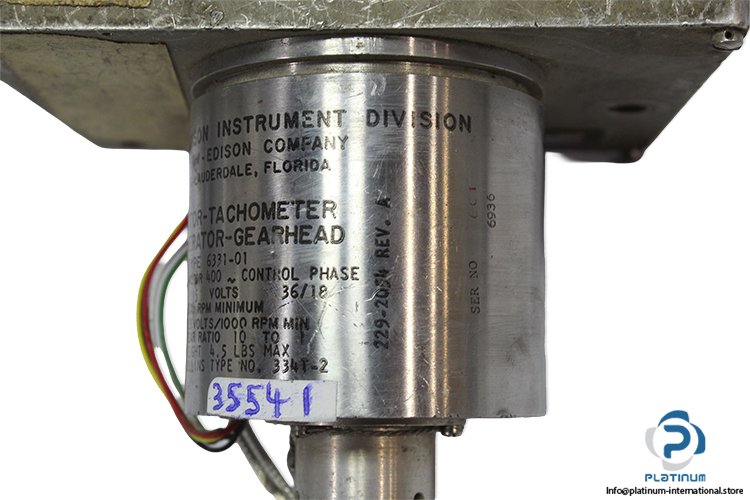

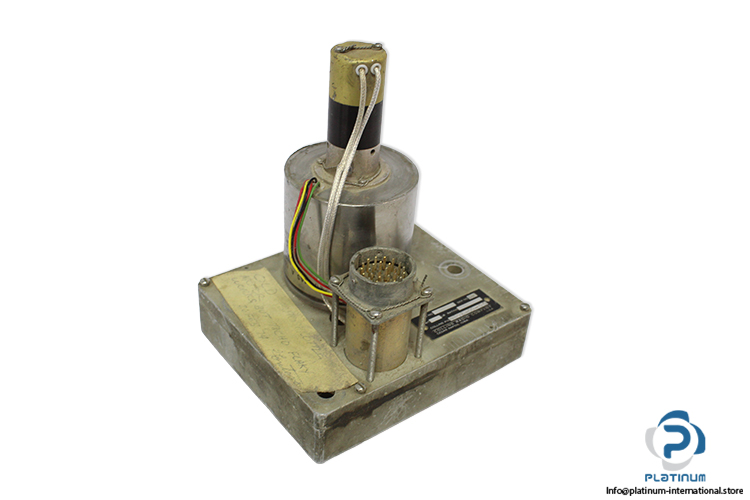

Motor-Tachometer Generator Gearhead Assembly
Thomas A. Edison “ McGraw Model 6331-01 motor-tachometer generator with integrated gearhead, 400 W control phase motor, and tachometer output for precise speed monitoring and motion control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Thomas A. Edison “ McGraw 6331-01 Motor-Tachometer Generator Gearhead Assembly
The Thomas A. Edison “ McGraw Model 6331-01 is a precision Motor“Tachometer Generator Gearhead Assembly designed for controlled motion and accurate speed feedback in industrial and electronic systems. This assembly integrates a control phase motor with a tachometer generator and gearhead, providing reliable speed regulation and performance monitoring for demanding applications.
Manufacturer: Thomas A. Edison “ McGraw
Type: Motor-Tachometer Generator “ Gearhead Assembly
Model: 6331-01
Serial: DM (6936)
Part No.: 4302-00-00
Revision: Rev. A
| Motor Power | 400 W |
| Motor Type | Control Phase Motor |
| Voltage | 115 V AC |
| Minimum Speed | 8000 RPM |
| Tachometer Output | 7.0 Volts per 1000 RPM (Minimum) |
| Gear Ratio | 10 : 1 |
| Collins Radio Company Reference | Collins Type No. 3341-2 |

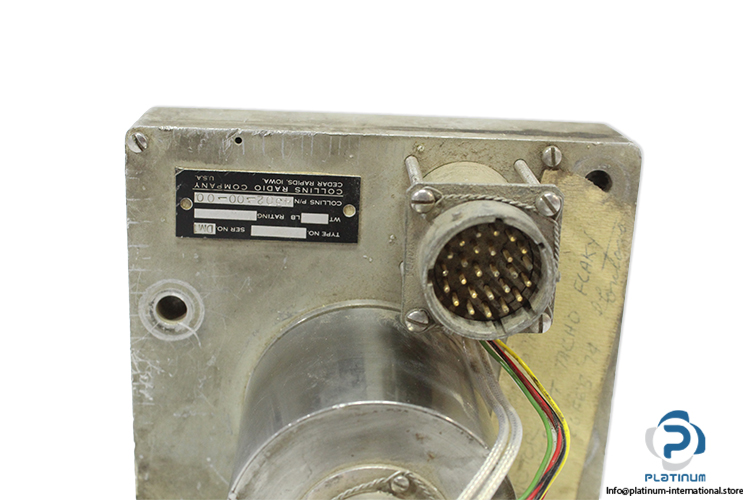

| Connector Type | Multi-pin Circular Industrial Connector |
| Mounting | Base Plate Mounting with Four Bolt Holes |

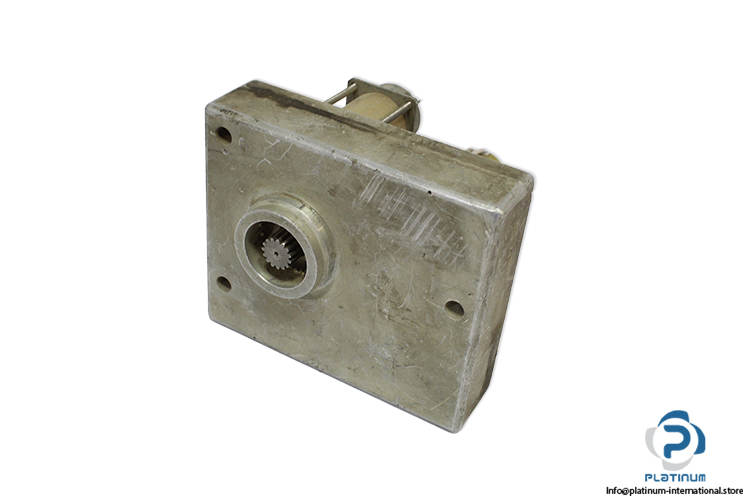

| Output Shaft | Splined Shaft Output (Gearhead Output) |
| Recommendation | Ideal for motion control, test equipment, and precision industrial systems requiring reliable speed feedback and controlled gear reduction. |
