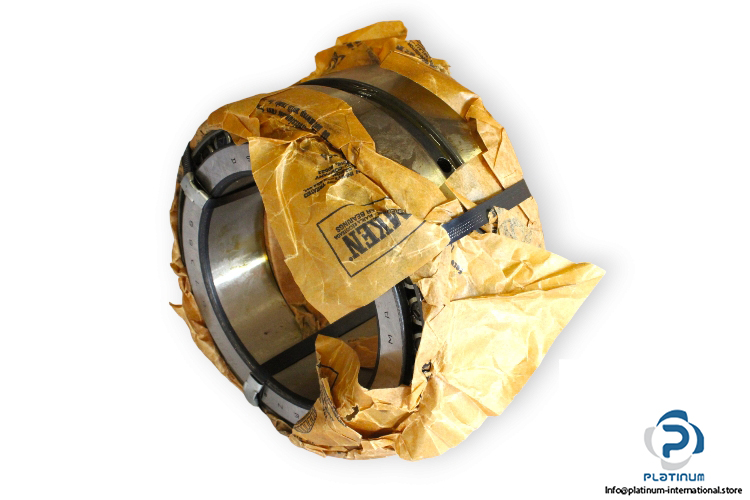

Timken 67388-67325D Tapered Roller Bearing-TDO

Manufacturer: Timken
Type: Tapered roller bearing-TDO (Tapered Double Outer)
Model: 67388 – 67325D

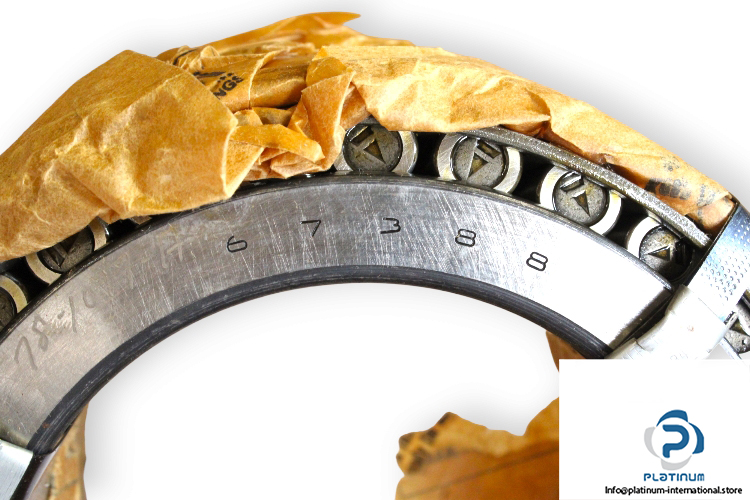

Cone Part Number: 67388

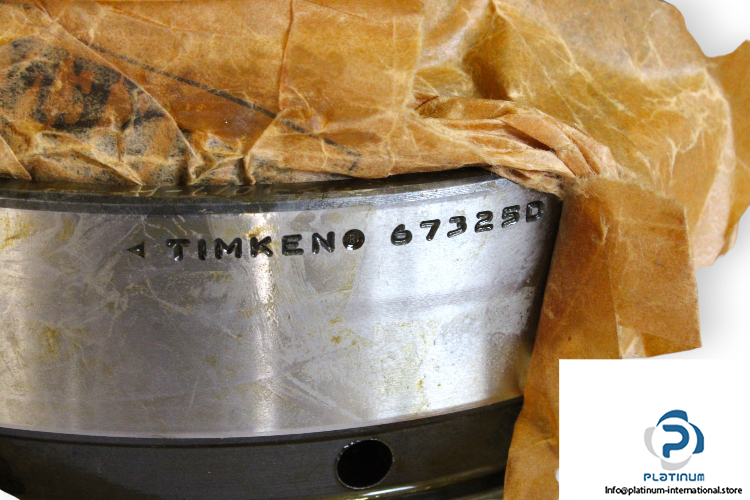

Cup Part Number: 67325D
Design Unit: Inch
Cone Bore Diameter d: 5 inch, 127 mm
Cup Outer Diameter D: 7.875 inch, 200.025 mm
C – Double Cup Width: 3.3750 inch, 85.725 mm
Total Width T: 4 inch, 101.6 mm
C90 – Dynamic Radial Rating (One-Row, 90 million revolutions): 95300 N
C1 – Dynamic Radial Rating (Two-Row, 1 million revolutions): 640000 N
C90(2) – Dynamic Radial Rating (Two-Row, 90 million revolutions): 166000 N
Ca90 – Dynamic Thrust Rating (90 million revolutions): 56100 N
Cage Material: Stamped Steel
