TR Electronic CE-100-M 100-00313 Absolute Encoder
TR ELECTRONIC CE-100-M Absolute Encoder, 4,096 PPR, SSI RS422, 12 mm shaft, ZB80 flange, 11€“27 V DC, IP54-rated, 6,000 RPM max speed.

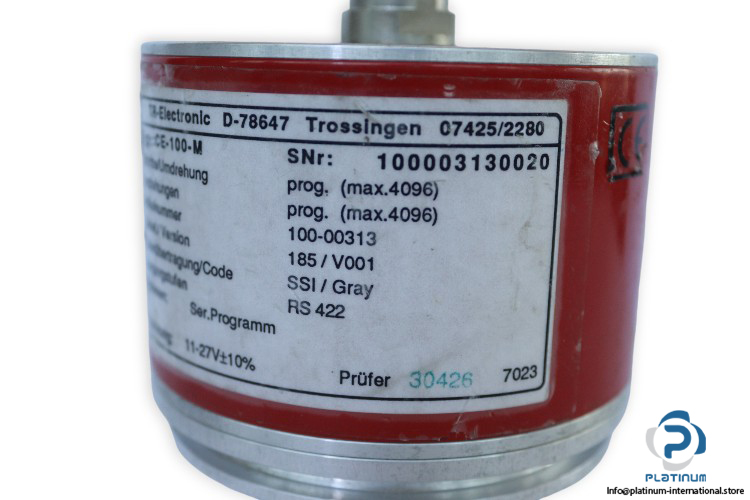

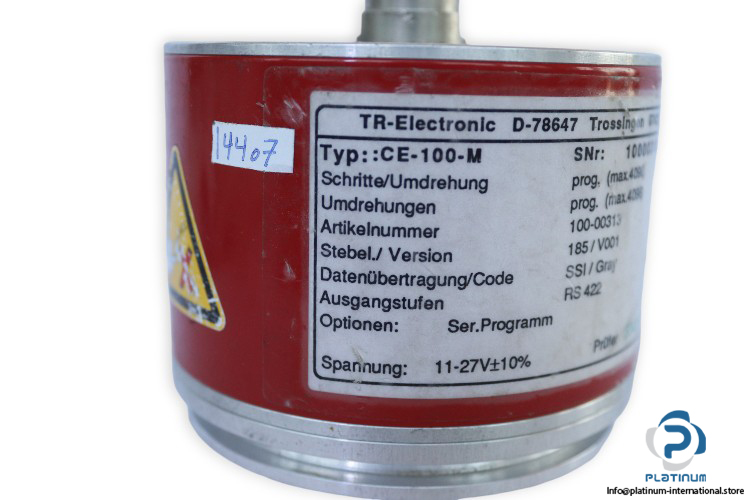

TR ELECTRONIC CE-100-M Absolute Encoder
The TR ELECTRONIC CE-100-M Absolute Encoder is a highly precise device designed for demanding industrial motion control and position sensing applications. Featuring **4,096 PPR (steps per revolution)** and a **multi-turn resolution of 4,096 revolutions**, this encoder ensures reliable and accurate data. It supports a **maximum speed of 6,000 RPM** and operates on a voltage range of **11 to 27 V DC**.
🔧 Technical Specifications:
- Manufacturer: TR ELECTRONIC
- Type: Absolute Encoder
- Model: CE-100-M
- Art. No.: 100-00313
- Shaft Diameter: 12 mm
- Steps Per Revolution: 4,096 PPR
- Revolutions: 4,096
- Maximum Speed: 6,000 RPM
- Output Interface: SSI RS422
- Voltage Supply: 11 to 27 V DC
- Flange Type: ZB80
- Flange Diameter: 80 mm
- Shaft Type: 12 key way/24

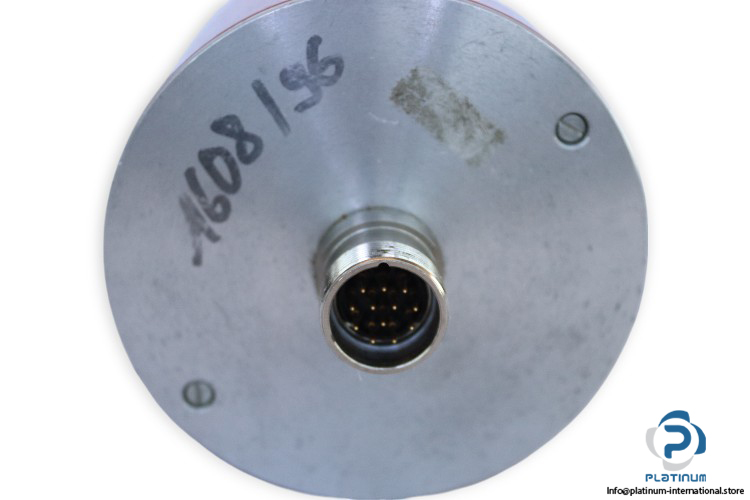

- Electrical Connection: Connector 12-Pin
- Length, Diameter: 73 mm, 106 mm
- Protection Class: IP54
- Temperature Range: 0 to 60 °C

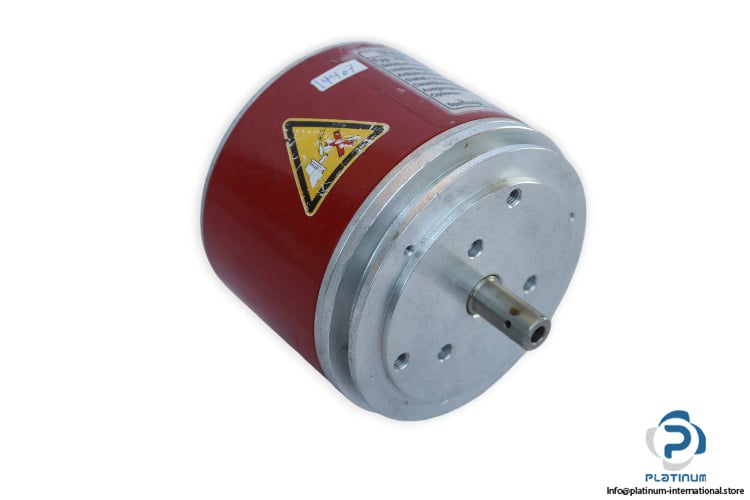

Built with a robust **IP54-rated housing** and a versatile **ZB80 flange type**, the **TR ELECTRONIC CE-100-M** encoder is suitable for a wide range of industrial applications. Its compact dimensions and **12 mm shaft with keyway** make it easy to integrate into your systems.
