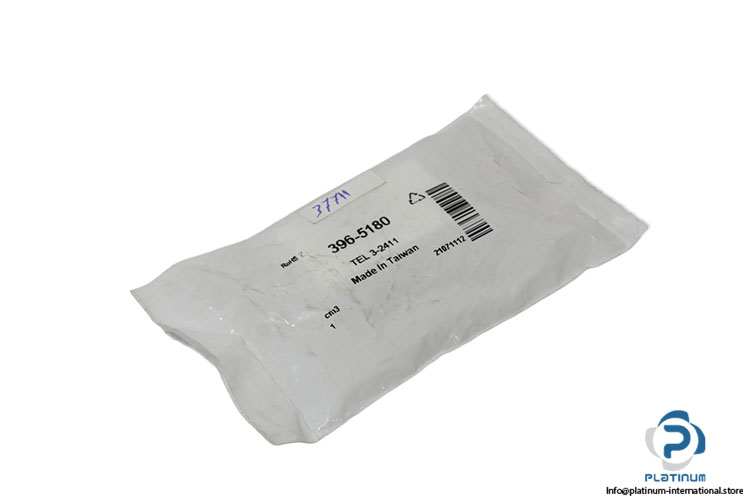

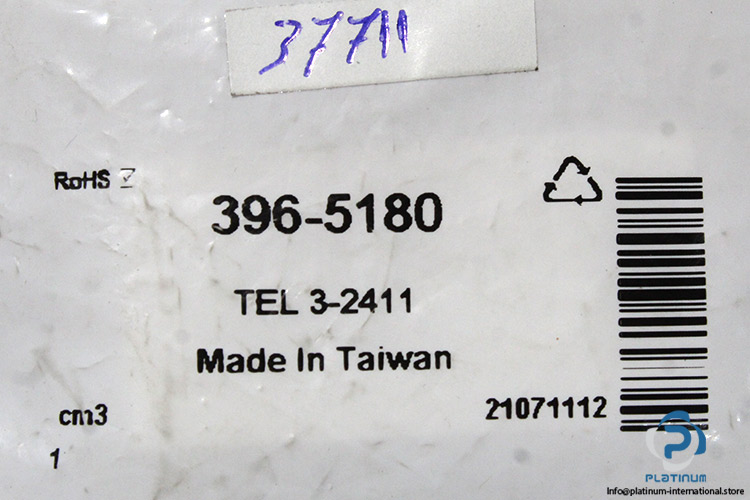

Traco Power TEL 3-2411 Dc/Dc Converter
New
In stock1 unitReady to ship
The TRACO POWER TEL 3-2411 is a compact 3 Watt isolated DC/DC converter featuring an 18–36 VDC input range, regulated 5 VDC output, 1500 VDC isolation, and up to 600 mA output current. It is ideal for industrial automation, control systems, and electronic power conversion applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 396-5180 |
| Series | TEL 3 |
| Code | 21071112 |
| Input voltage range | 18 – 36 VDC |
| Nominal voltage | 24 VDC |
| Output voltage | 5 VDC |
| Isolation voltage | 1500 VDC |
| Output current | max. 600 mA |
| Switching frequency | 300 kHz |
| Power | 3 Watt |
| Casing material | nonconductive black plastic |
| Operating Temperature | -40 to 85°C |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093438 |
| Weight | 0,01 |
