Trimod Besta A 01 041 Level Switch

Manufacturer: TRIMOD BESTA

Type: LEVEL SWITCH

Model: A 01 041



Application: shipbuilding, refrigeration, chemical engineering, food industry, pulp and paper, drinking water supply, sewage treatment

Housing Material: Seawater Resistant Die Cast Aluminium

Wetside material: Stainless Steel (CrNiMo)

Nominal pressure: PN 25 according to EN/DIN

Switch rating: 250 VAC, 30 VDC

Current: 5 A

Switch element: Microswitch SPDT with silver contacts

Min. Density of the liquid: 0.7 kg/dm³

Operating differential: 12 mm, fixed

Safety Integrity Level (SIL): SIL 1

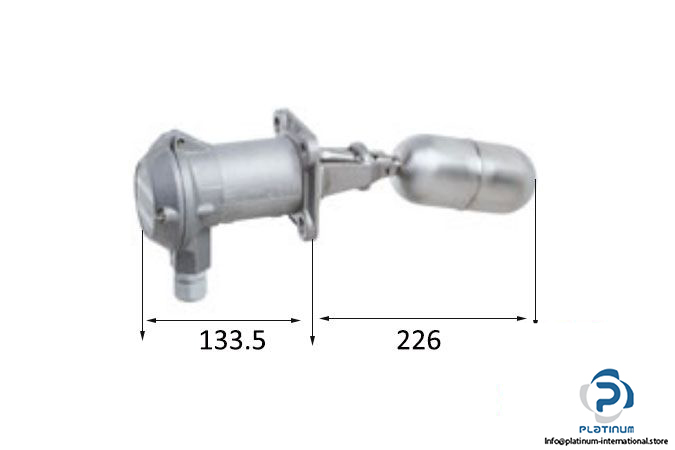

Overall Length: 359.5

Protection Class: IP65

Frequency: 50 / 60 Hz

Operating Temperature: 0 … 300 °C

Ambient temperature: 0 … 70 °C

Weight: 1.80 kg
