Trio MC464 P874-00432 Interface Module
New
In stock1 unitReady to ship
Communication Interface Module Trio Motion Technology MC464 motion coordinator with 8-axis control, FlexAxis interface, and advanced TrioBASIC programming, ideal for industrial automation systems.
8AutomationAxisCommunicationcontControlControllercoordinatorFlexAxisIndustrialInterfaceMC464ModuleMotiontechnologyTrioTrioBASIC
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | P874-00432 |
| Used | with Stepper, Analogue Servo & Piezo motor |
| Interface Type | FlexAxis Communication Interface |
| No. of axis | 8 axes (P874) versions |
| Input Power | 24 V DC (18 to 29 V DC at 625mA typical) |
| Physical layer | 10/100 base |

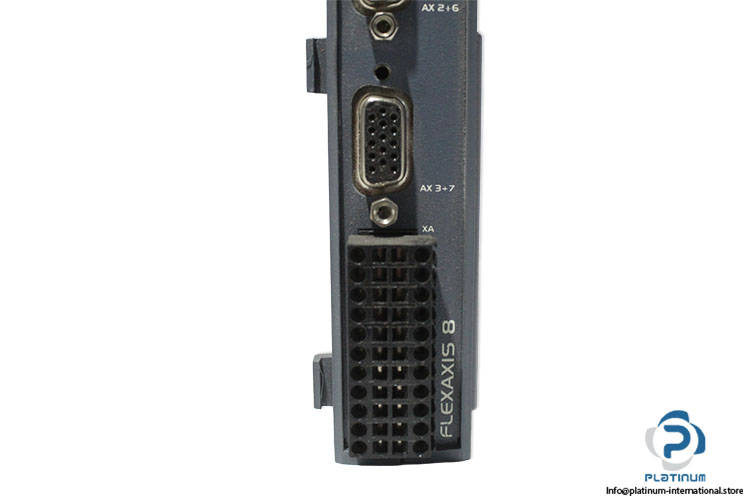

| Connector | 22 pin multifunction connector provides terminals for registration inputs, 8 voltage outputs and 4 hardware PSWITCH outputs |
| No. of Analogue Output (AO) | 8 (16 Bit) |
| Power Output | 5V at 150 mA |
| Programming | Multi-tasking TrioBASIC system, maximum 20 user processes, IEC 61131-3 programming system |
| Mounting | Plug-In Module Design |
| Design | Compact And Robust Industrial Housing |
| Control Inputs | Forward Limit, Reverse Limit, Datum Input, Feedhold Input. |
| Operating temperature | 0 - 45 degrees C |
| Dimensions | 201 x 56 x 155 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1097333 |
| Weight | 0,42 |
