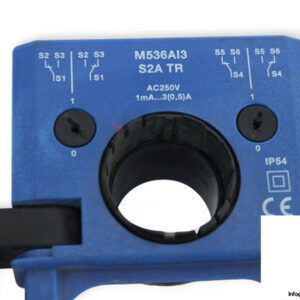

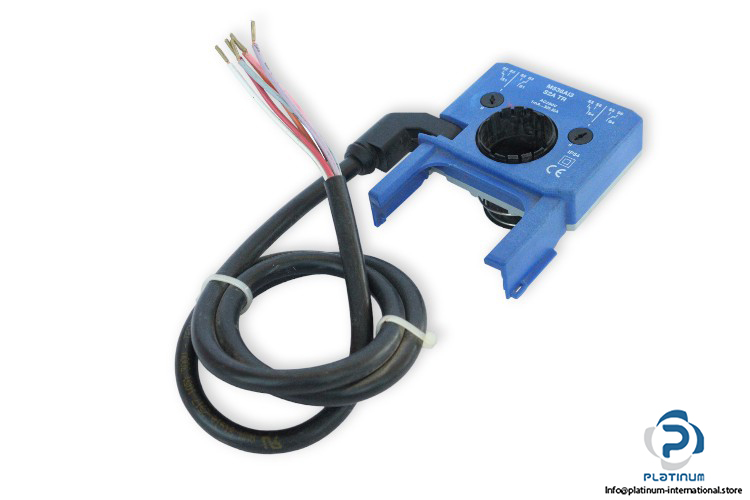

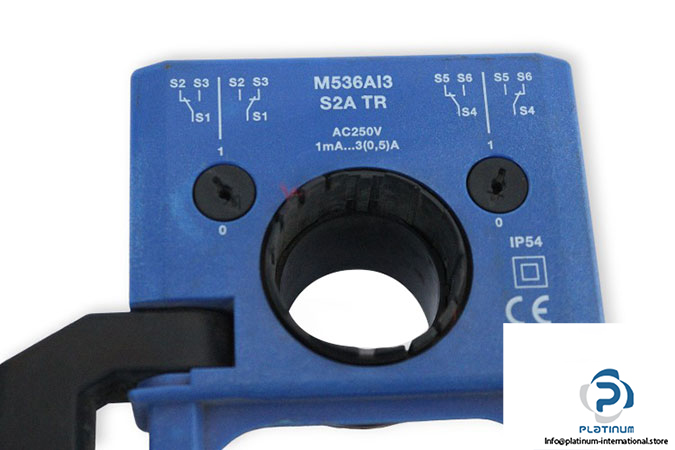

Trox M536AI3 Auxiliary Switch

Manufacture: Trox
Type: Auxiliary switch
Model: M536AI3
Part No.: S2A TR

Application
– Auxiliary switch S2A for capturing damper blade end positions (end positions reached through actuator operation)
– Volt-free contacts for signalling or activating
Max. switching voltage: 250 V AC
Switching current: 1 mA … 3(0.5) A

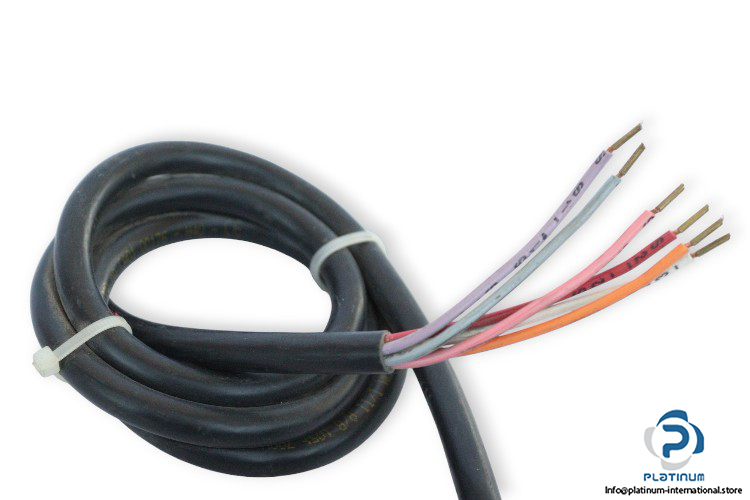

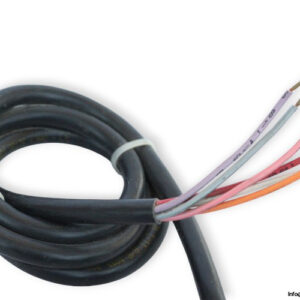

Connecting cable: 6 × 0.75 mm², 1 m long
Type of contact: 2 changeover contacts
Protection degree: IP54
No. of wires for cable: 6 wires
Operating temperature: -30 … 50 °C
