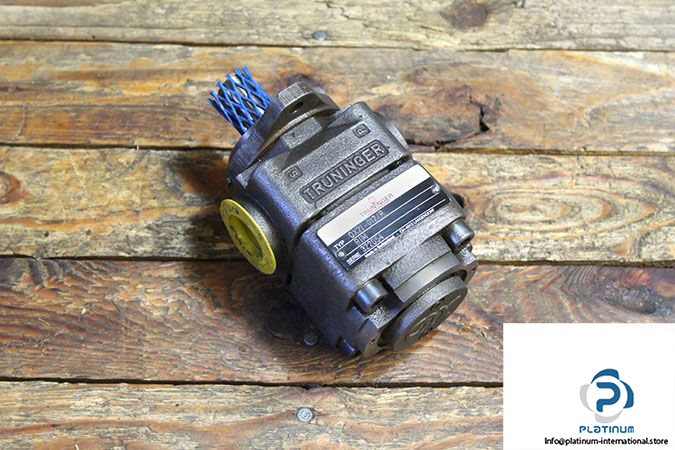

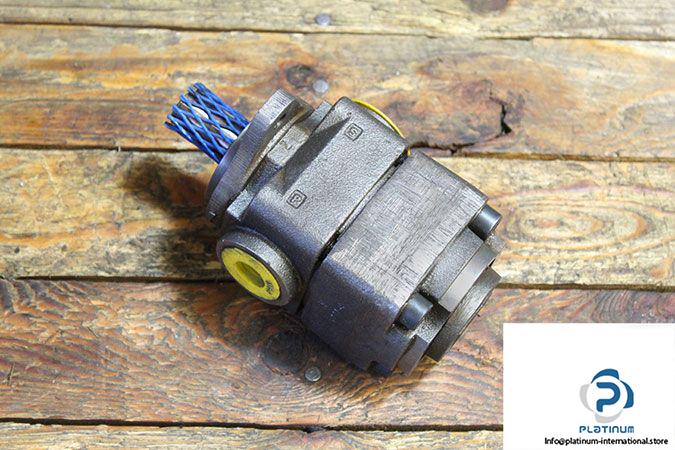

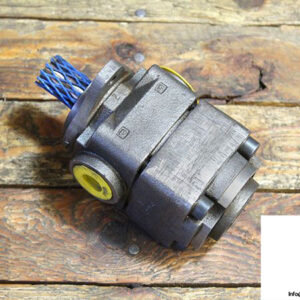

Truninger QX21-012/R BIM Internal Gear Pump

Manufacturer: TRUNINGER

Type: Internal Gear Pumps

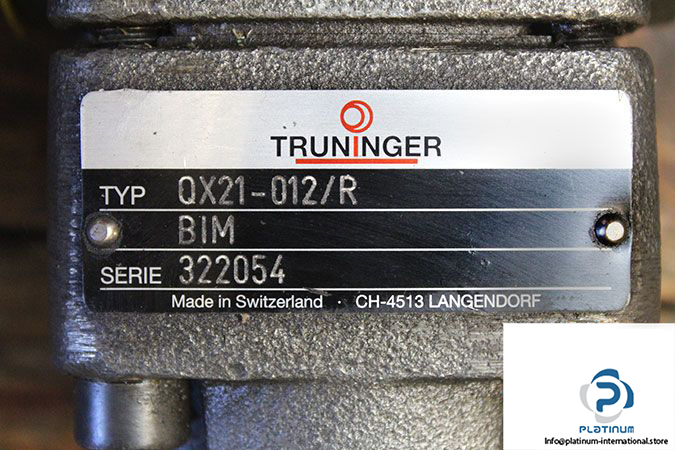

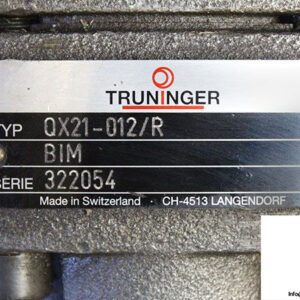

Model: QX21-012/RBIM



Size: 12

Displacement: 12.6 cm³

Direction of Rotation: Clockwise

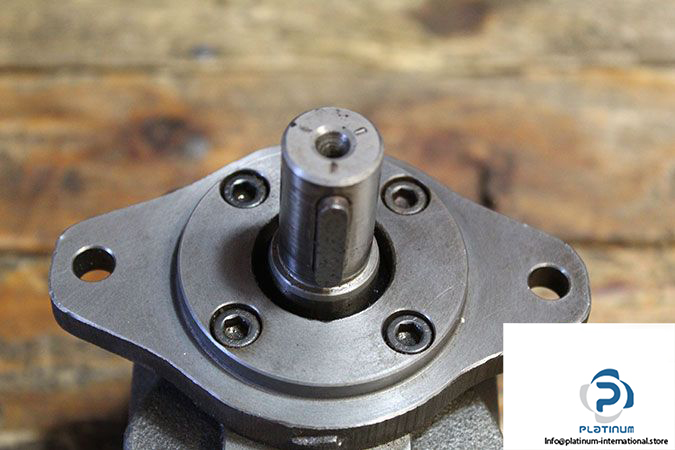

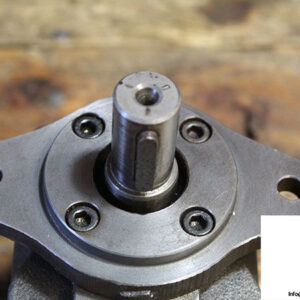

Shaft Diameter: 20 mm

Max. Operating pressure: 125 bar

Speed Range: 1200 …. 3600 rpm

Flow Rate at 1450 rpm: 18.3 l/m

Torque at 100 bar: 25 N.m

Viscosity Range: 10 ….  100 mm²/s
