TSC Ucfl 212 Oval Flange Ball Bearing Unit

Name: TSC UCFL 212 OVAL FLANGE BALL BEARING UNIT
SKU: 1005258
Availability: LimitedAvailability

tsc-UCFL-212-oval-flange-ball-bearing-unit-(new)-1

tsc-UCFL-212-oval-flange-ball-bearing-unit-(new)-2

New

In stock4 unitsReady to ship

Manufacturer:

TSC

Type:

Oval flange ball bearing unit

Model:

UCFL 212

Housing No.:

FL212

Bearing No.:

UC212

Manufacturer

TSC

SKU

1005258

Category

Plummer Block Housing Units

Condition

New

60 bearing bearings flanged Housing mm Oval TSC Two-Bolt Unit Units Žhousing

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: TSC
Type: Oval flange ball bearing unit
Model: UCFL 212
Housing No.: FL212
Bearing No.: UC212

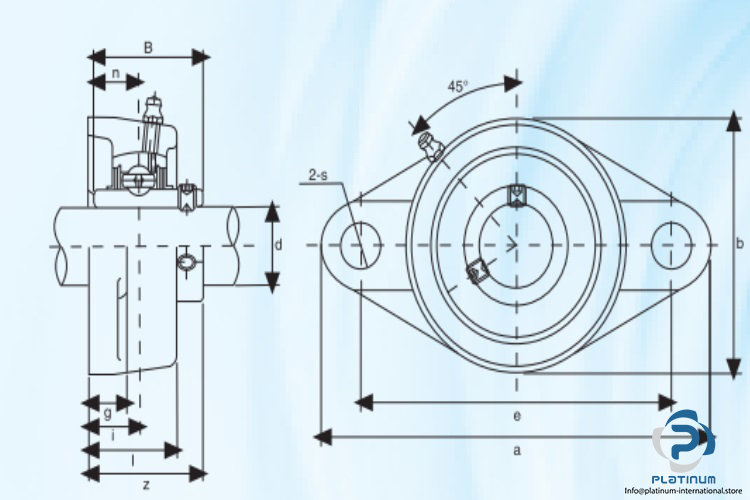

Dimensions
Bore Diameter d: 60 mm
Overall Length b: 140 mm
Width of inner ring B: 65.1 mm
Overall Height a: 250 mm
Distance Between Attachment Bolts e: 202 mm
Overall unit width z: 68.7 mm
Basic load rating:
Dynamic Cr: 50000 N
Static C0r: 34500 N
Mounting: Oval Flange
Locking device: Set Screw
Material, housing: Cast iron
