Turck BI15U-CP40-AP6X2-H1141 Inductive Sensor
Used
In stock2 unitsReady to ship
Inductive Sensor
A robust and accurate inductive proximity sensor from TURCK™s Uprox series, designed for reliable metal detection with long sensing distance and stable operation in demanding automation environments.AutomationBI15U-CP40-AP6X2-H1141ComponentDetectionInductiveIndustrialIP67MetalPNPProximitySensorTurckUprox
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

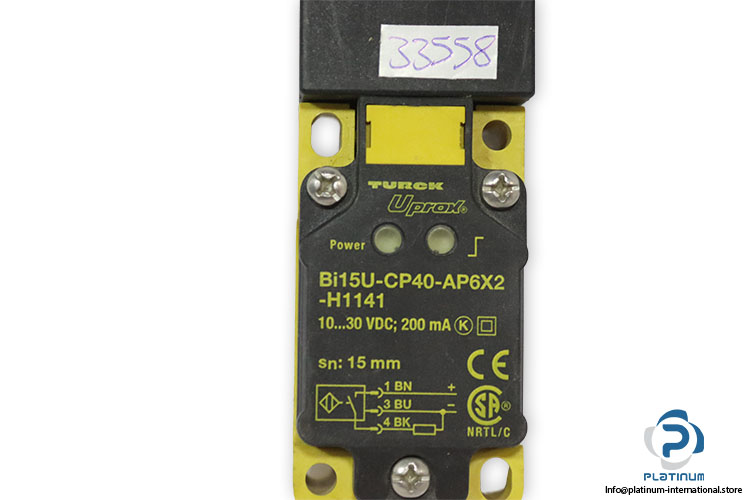

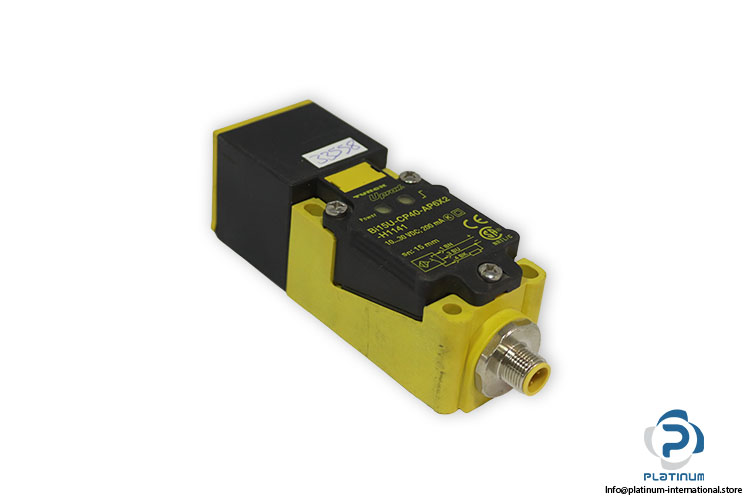

TURCK BI15U-CP40-AP6X2-H1141 Inductive Sensor
A high-performance inductive proximity sensor from the Uprox series, designed for precise metal detection with extended switching distance, excellent stability, and reliable performance in industrial automation environments. Manufacturer: TURCK
Type: Inductive Sensor
Model: BI15U-CP40-AP6X2-H1141
ID No.: 1603095
Series: Uprox
| Rated Switching Distance | 15 mm |
| Mounting Conditions | Flush |
| Secured Operating Distance | ‰¤ (0.81 × Sn) mm |
| Correction Factors | St37 = 1; Al = 0.3; Stainless Steel = 0.7; Ms = 0.4 |
| Repeat Accuracy | ‰¤ 2% of full scale |
| Temperature Drift | ‰¤ ±10% |
| Hysteresis | 3 / 15% |
| Operating Voltage | 10 / 30 VDC |
| DC Rated Operational Current | ‰¤ 200 mA |
| No-Load Current | 15 mA |
| Residual Current | ‰¤ 0.1 mA |
| Output Function | 3-wire, NO contact, PNP |
| Switching Frequency | 0.15 kHz |
| Design | Rectangular, CP40 |
| Dimensions | 114 × 40 × 40 mm |
| Housing Material | Plastic, PBT-GF30-V0, Black |
| Active Area Material | Plastic, PBT-GF30-V0, Yellow |

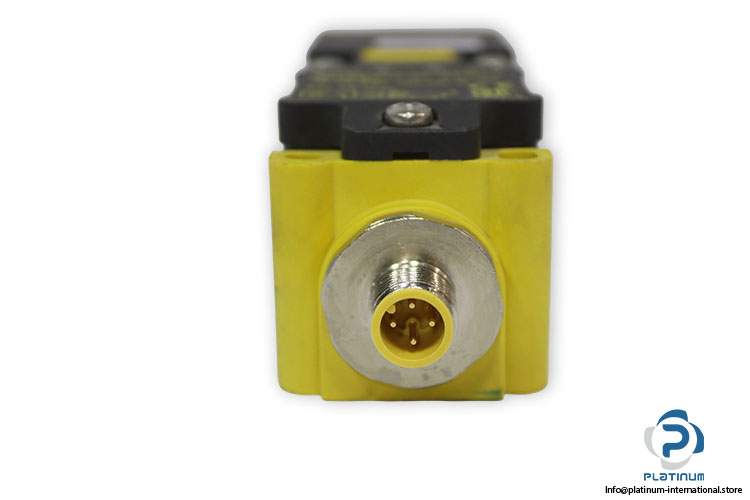

| Electrical Connection | Connector, M12 × 1 |
| Ambient Temperature | -25 / +70 °C |
| Protection Class | IP67 |
