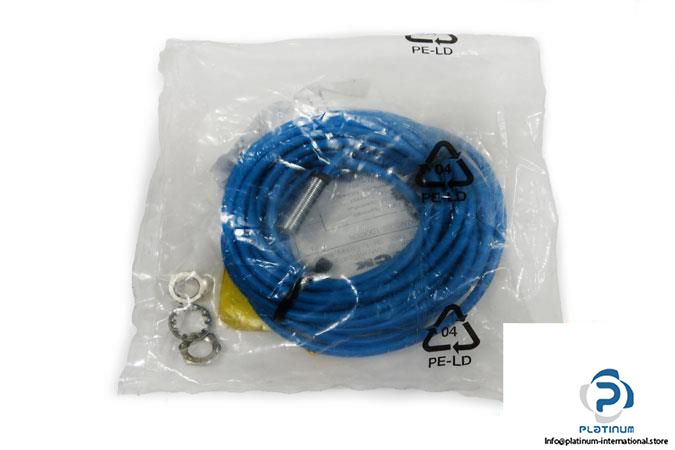

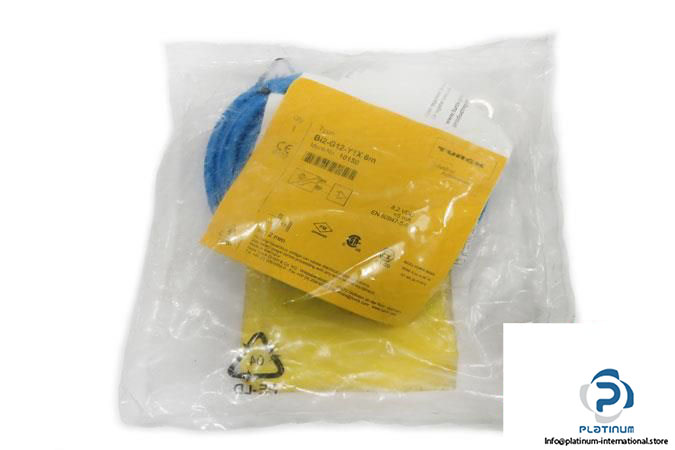

Turck BI2-G12-Y1X Inductive Sensor

Manufacturer: Turck
Type: Inductive Sensor
Model: BI2G12Y1X

Sensing Range: 2 mm
Mounting conditions: Flush
Output function: 2-wire, NAMUR
Switching frequency: 5 kHz
Voltage Nom.: 8.2 VDC
non-actuated current consumption: ≥ 2.1 mA
Actuated current consumption: ≤ 1.2 mA
Design Threaded barrel: M12 x 1
Dimensions: 34 mm
Housing material: Metal
Active area material: Plastic, PA12-GF30
End cap material: Plastic, EPTR
Max. tightening torque of housing nut: 10 Nm
Electrical connection: Cable
Core cross-section: 2 x 0.34 mm
Ambient temperature: -25 … +70 °C
Protection class: IP67
