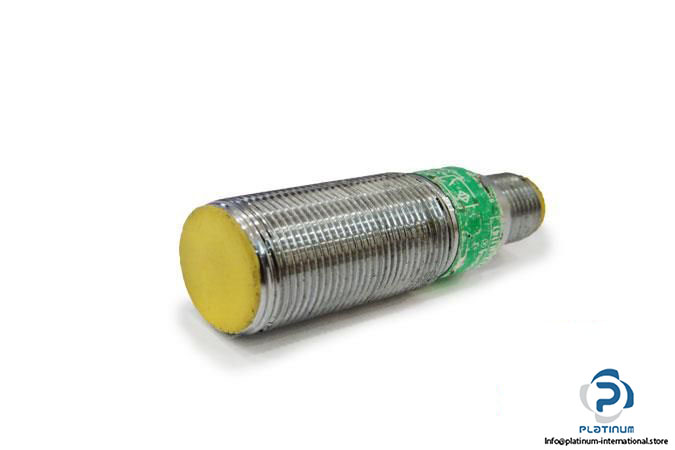

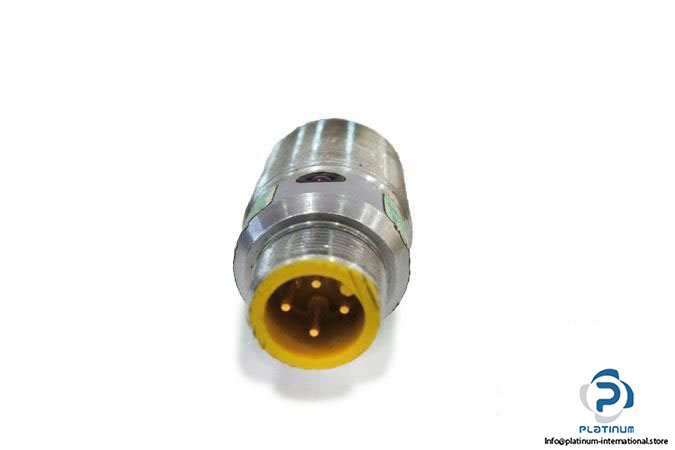

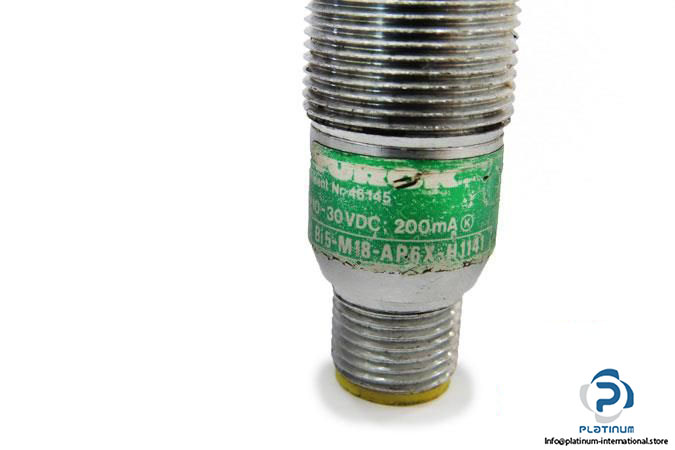

Turck BI5-M18-AP6X-H1141 Inductive Sensor

Manufacturer: TURCK

Type: INDUCTIVE SENSOR

Model: BI5-M18-AP6X-H1141

Sensing Range: 5 mm

Operating Distance: ≤ 4.05 mm

Operating Voltage: 10 … 30 V DC

Switching Output Current: 200 mA DC

Switching Frequency: 500 Hz

Electrical Design: PNP

Output Function: Normally open

Thread Diameter: M18

Protection Class: II

Enclosure Rating: IP67

Housing: Threaded barrel

Ambient Operating Temperature: -25 … +70 °C

Material: Chrome-plated and Brass

Mounting: Flush mountable

Weight: 49 g
