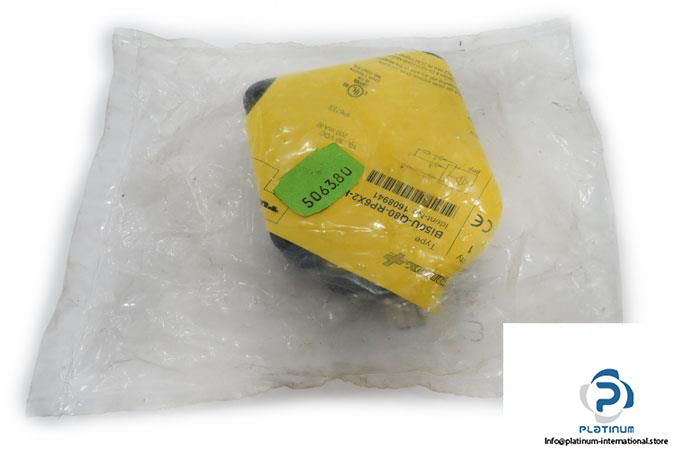

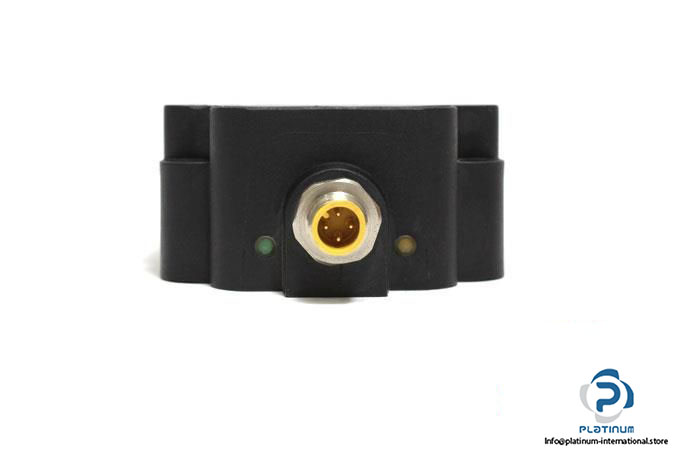

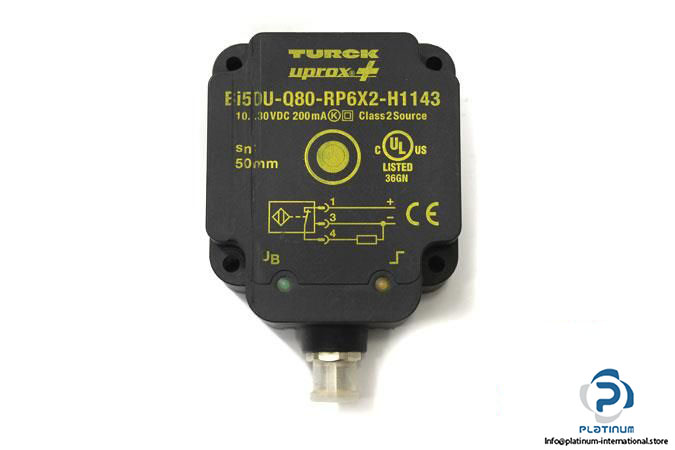

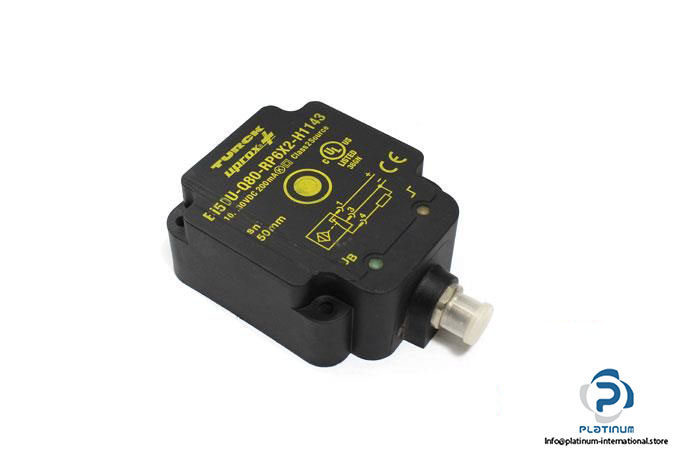

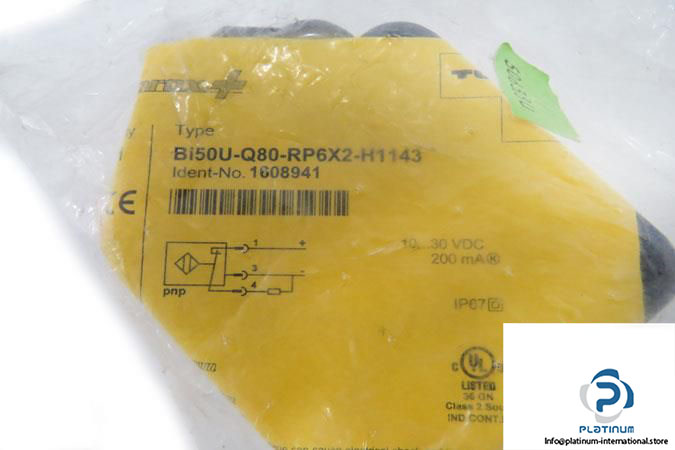

Turck BI50U-Q80-RP6X2-H1143 Inductive Sensor

Manufacturer: TURCK
Type:  Inductive Sensor
Model No.: BI50U-Q80-RP6X2-H1143

Sensing range: 50 mm
Active face: on top
Operating Voltage: 10 … 30 V DC
Operating Current: 200 mA
Switching frequency: 0.25 Hz
Electrical design: PNP
Switching output: Normally closed
Connector type: M12 connector, 4-pin
Enclosure rating: IP68
Ambient Operating temperature: -25 … 70°C
Dimensions: 80 x 40x 92 mm
Weight: 332 g
Housing material: PBT
Mounting: Flush mountable
