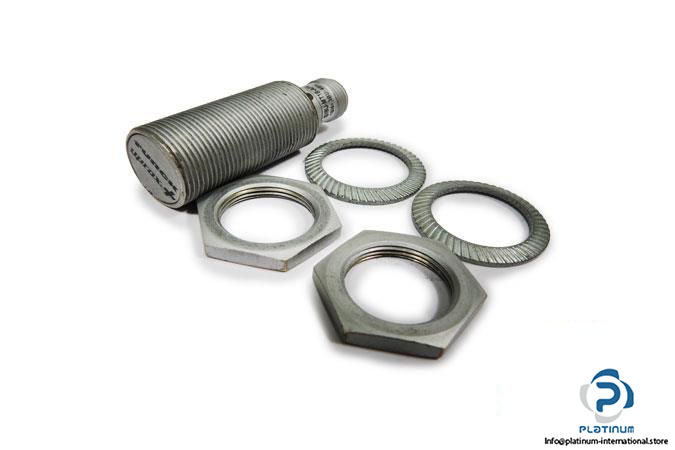

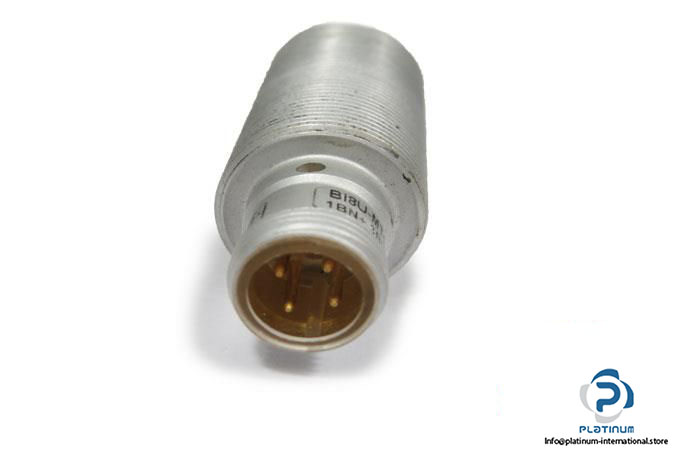

Turck BI8U-MT18-AP6X-H1141 Inductive Sensor

Manufacturer: TURCK

Type: INDUCTIVE SENSOR

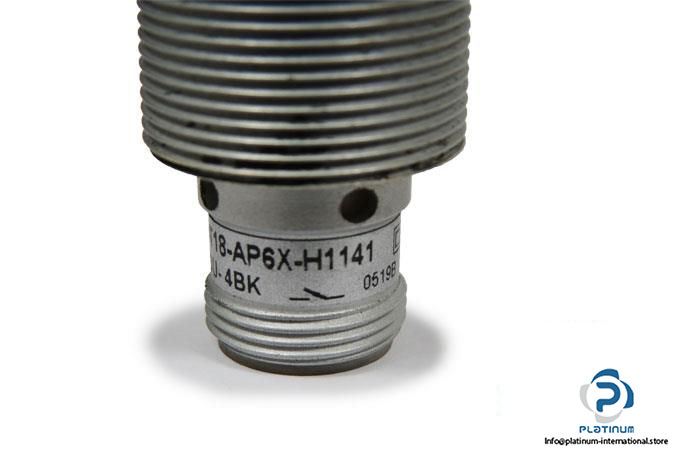

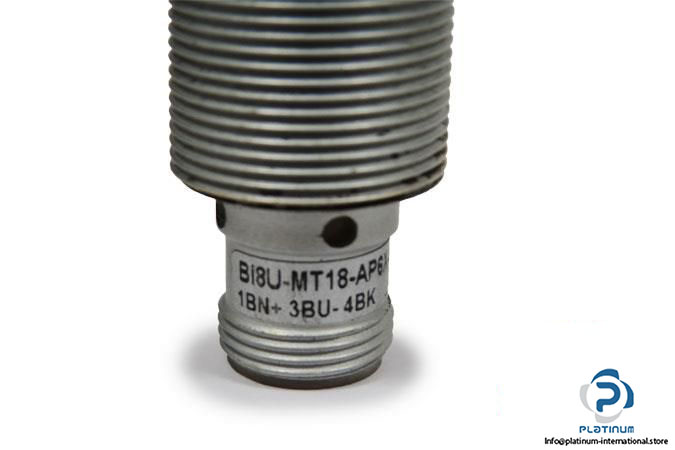

Model: BI8U-MT18-AP6X-H1141

Sensing Range: 8 mm

Operating Distance: ≤ 6.48 mm

Operating Voltage: 10 … 30 V DC

Switching Frequency: 1500 Hz

Switching Output Current: 200 mA DC

Electrical Design: PNP

Output Function: Normally open

Protection Class: II

Enclosure Rating: IP68

Housing: Threaded barrel

Ambient Operating Temperature: -30 … +85 °C

Diameter: M18

Material: Brass and PTFE-coated

Mounting: Flush mountable

Weight: 53 g
