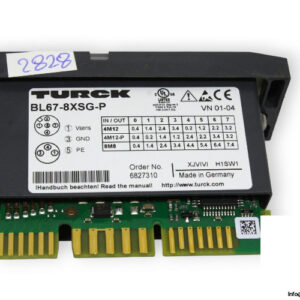

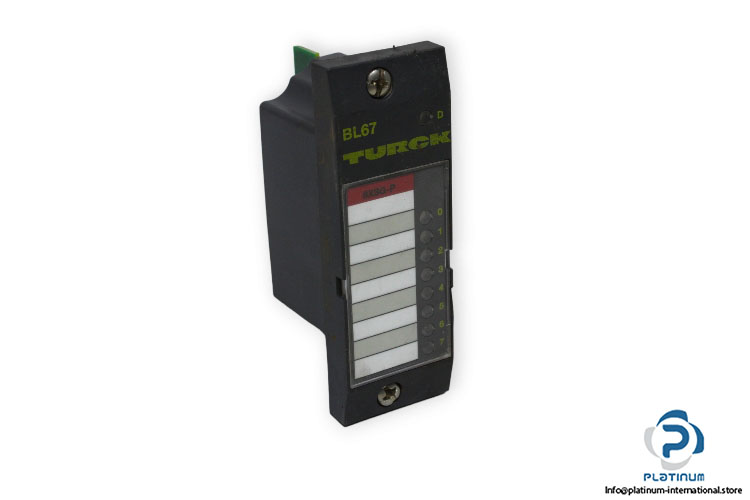

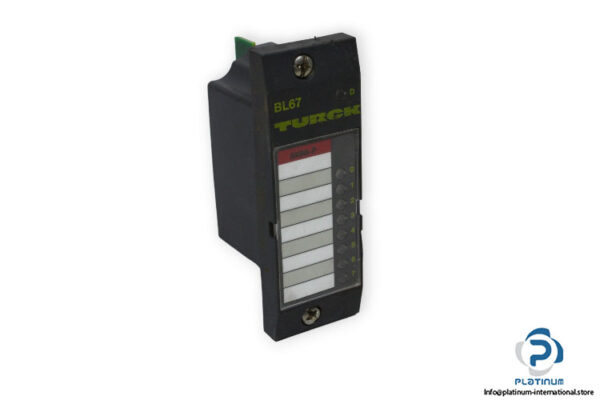

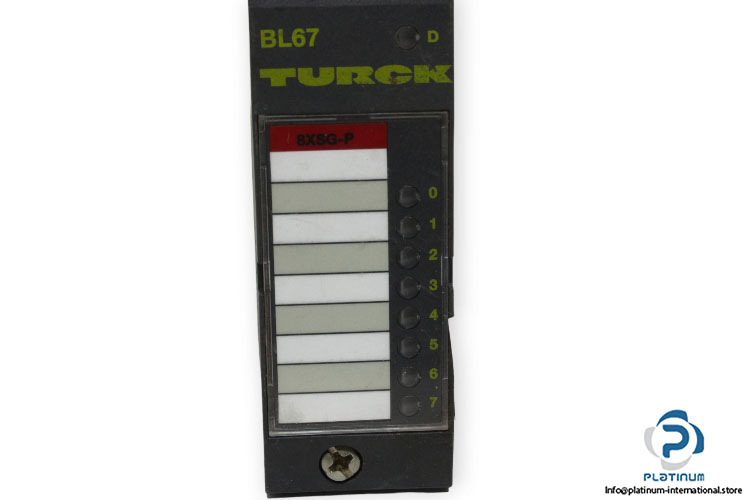

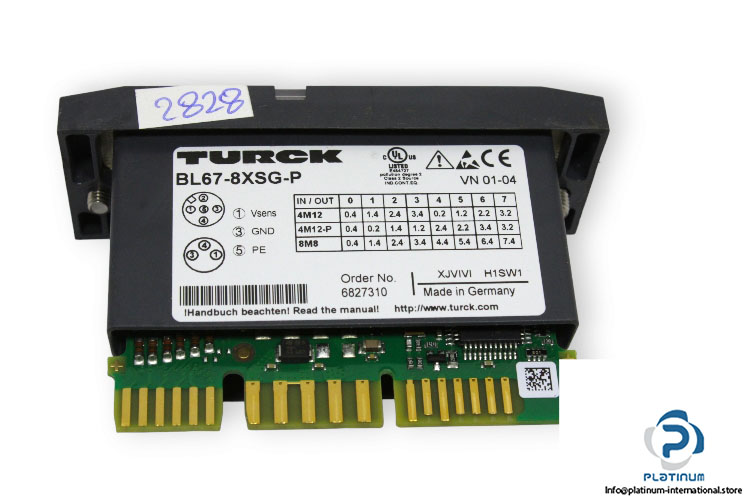

Turck BL67-8XSG-P Electronic Module

Manufacture: Turck
Type: Electronic Module
Model: BL678XSGP
Part No.: 6827310

Supply voltage: 24 V DC
Nominal current from field supply: =< 100 mA
Power dissipation, typical: =< 1.5 W
Output current per channel: 0.5 A
Signal type: PNP
Output connectivity: M8
Output delay time: 3 ms
No. of channels: 8
Load type: resistive, inductive, lamp load
Tightening torque fixing screw: 0.9 … 1.2 Nm
Protection class: IP67
Ambient temperature: -40 … +70 °C
Dimensions (W x L x H): 32 x 91 x 59 mm
