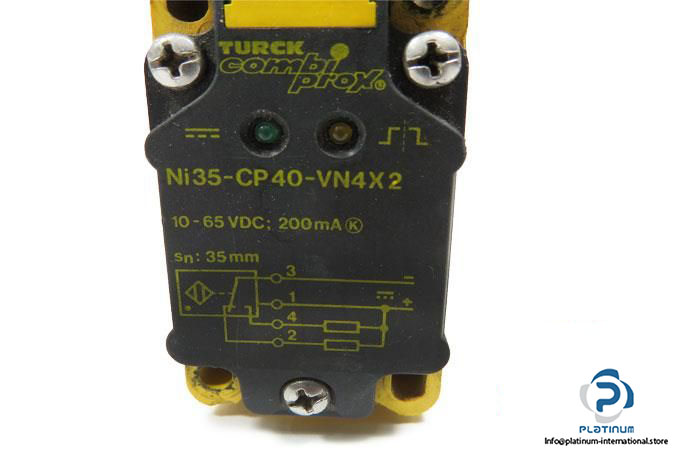

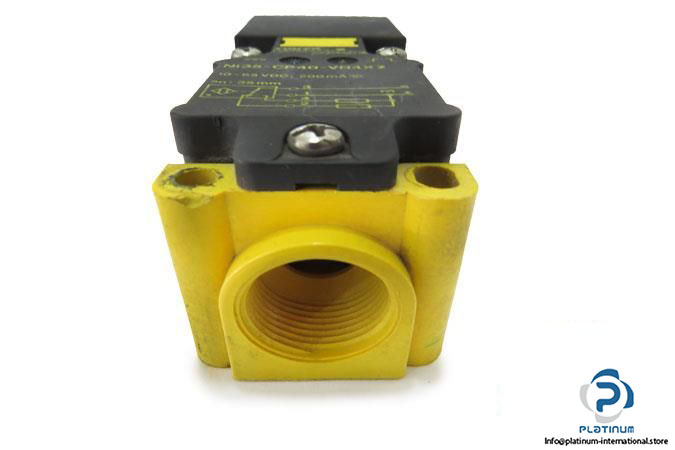

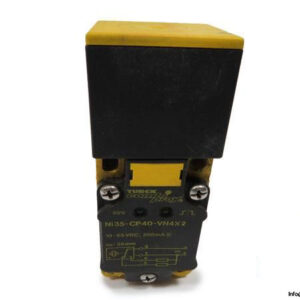

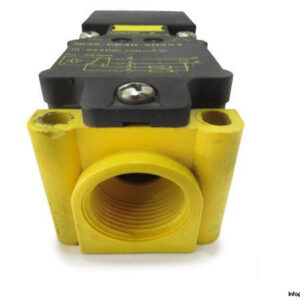

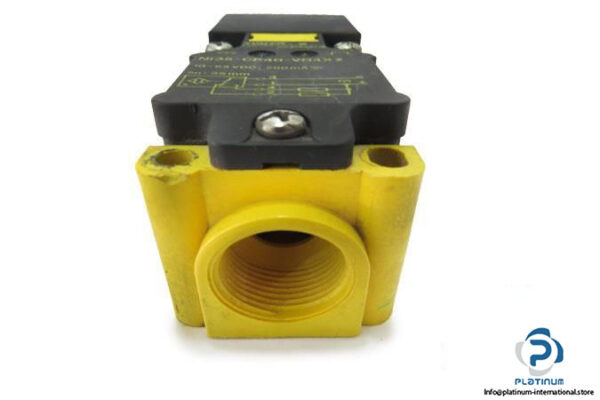

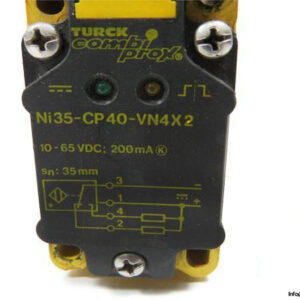

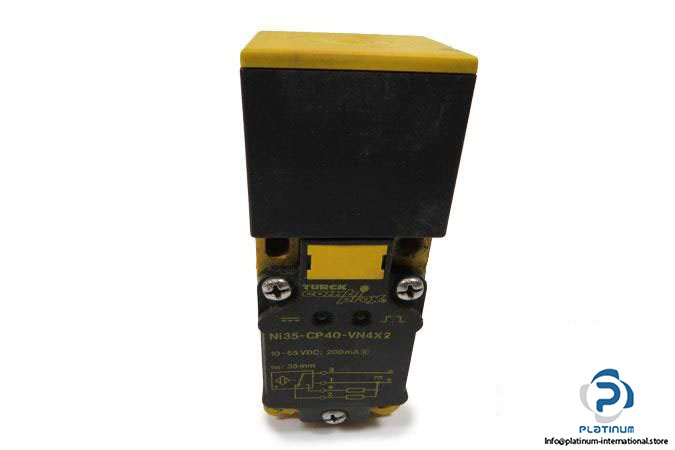

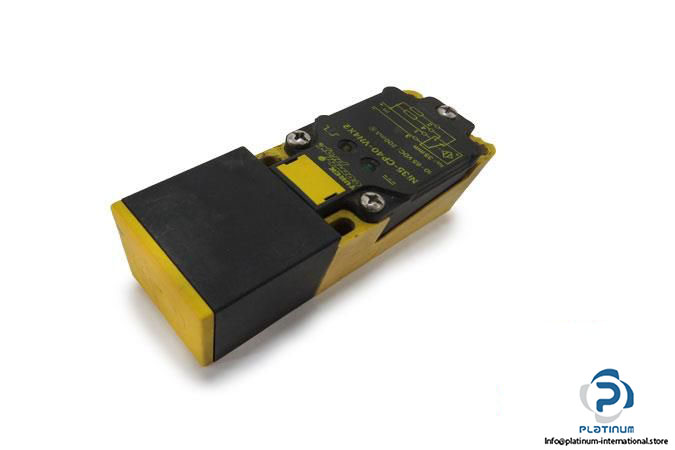

Turck NI35-CP40-VN4X2 Inductive Sensor

Manufacturer: TURCK
Type: INDUCTIVE SENSOR
Model: NI35CP40VN4X2

Sensing Range: 35 mm
Operating Distance: ≤ 28.35 mm
Operating Voltage: 10 … 65 V DC
Switching Output Current: 200 mA DC
Switching Frequency: 150 Hz
Electrical Design: NPN
Output Function: Changeover contact
Connector Type: Cable gland M20 X 1.5
Protection Class: II
Enclosure Rating: IP67
Housing: Rectangular
Ambient Operating Temperature:  -25 … +70 °C
Material: PBT
Mounting: non-flush mountable
Dimensions: 114 X 40 X 40 mm
